RØDELink NewsShooter Kit Digital Wireless System

RØDE SKU: RODElink NewsShooter Kit | Helix SKU: RMRODElinkNewsshooter

Overview

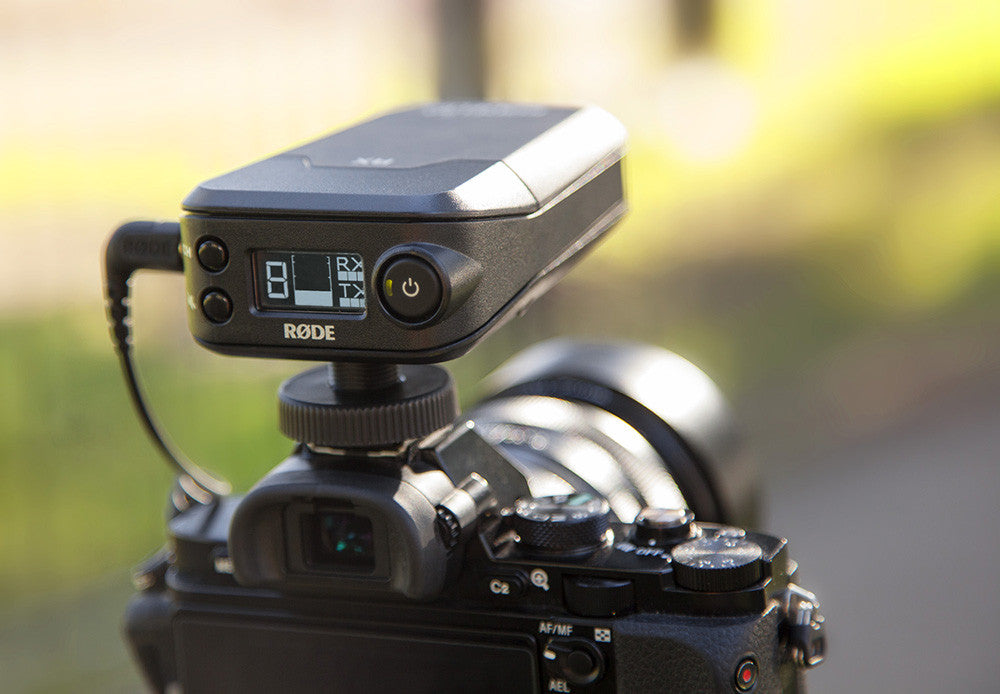

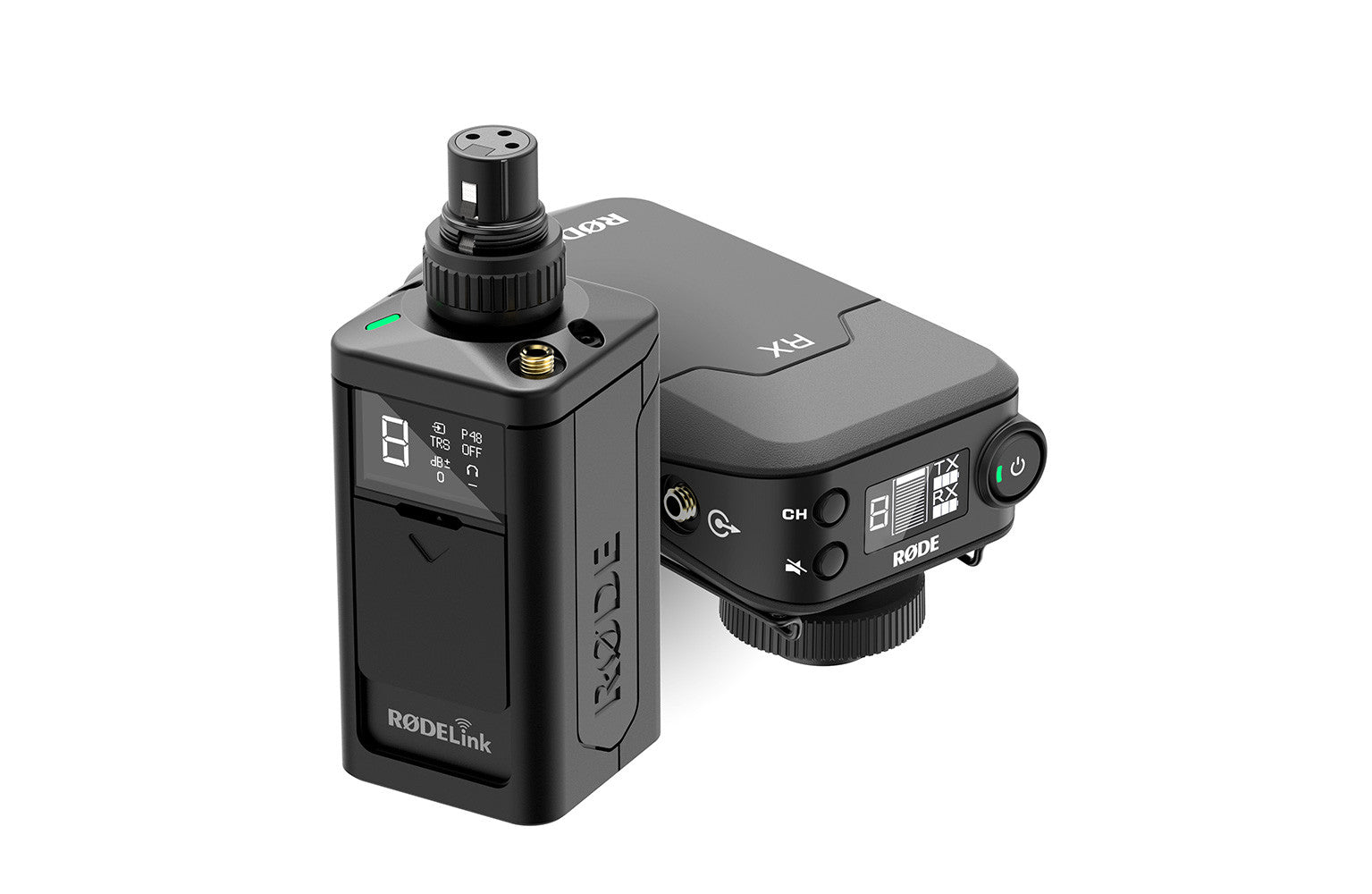

RØDELink represents the next generation of digital wireless systems. Using a series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres* (over 100 yards). The RØDELink Newsshooter Kit provides everything you need to start shooting video wirelessly with XLR microphones, including a camera-mounted receiver and an XLR transmitter. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The transmitter (TX-XLR) easily connects to handheld presentation microphones as well as shotgun microphones, with a 3.5mm input and headphone output.

* range estimations based on optimal environment

RØDELink Newsshooter Kit Specifications:

Transmission type 2.4GHz Fixed Frequency Agile System
System dynamic range 112dB
Range (distance) Up To 100m
Frequency range 35Hz - 22kHz
Maximum output level 1v Rms (2.8v P-p)
Max input signal level 1v Rms (2.8v P-p)
Max latency 4ms
Receiver (RX-CAM)
Power source 2 X AA Battery Or MicroUSB
Antenna Internal
Output connection 3.5mm TRS Locking Jack Socket - Dual Mono
Output impedance 300Ω
Dimensions 111mm X 65mm X 52mm
Weight 190gm

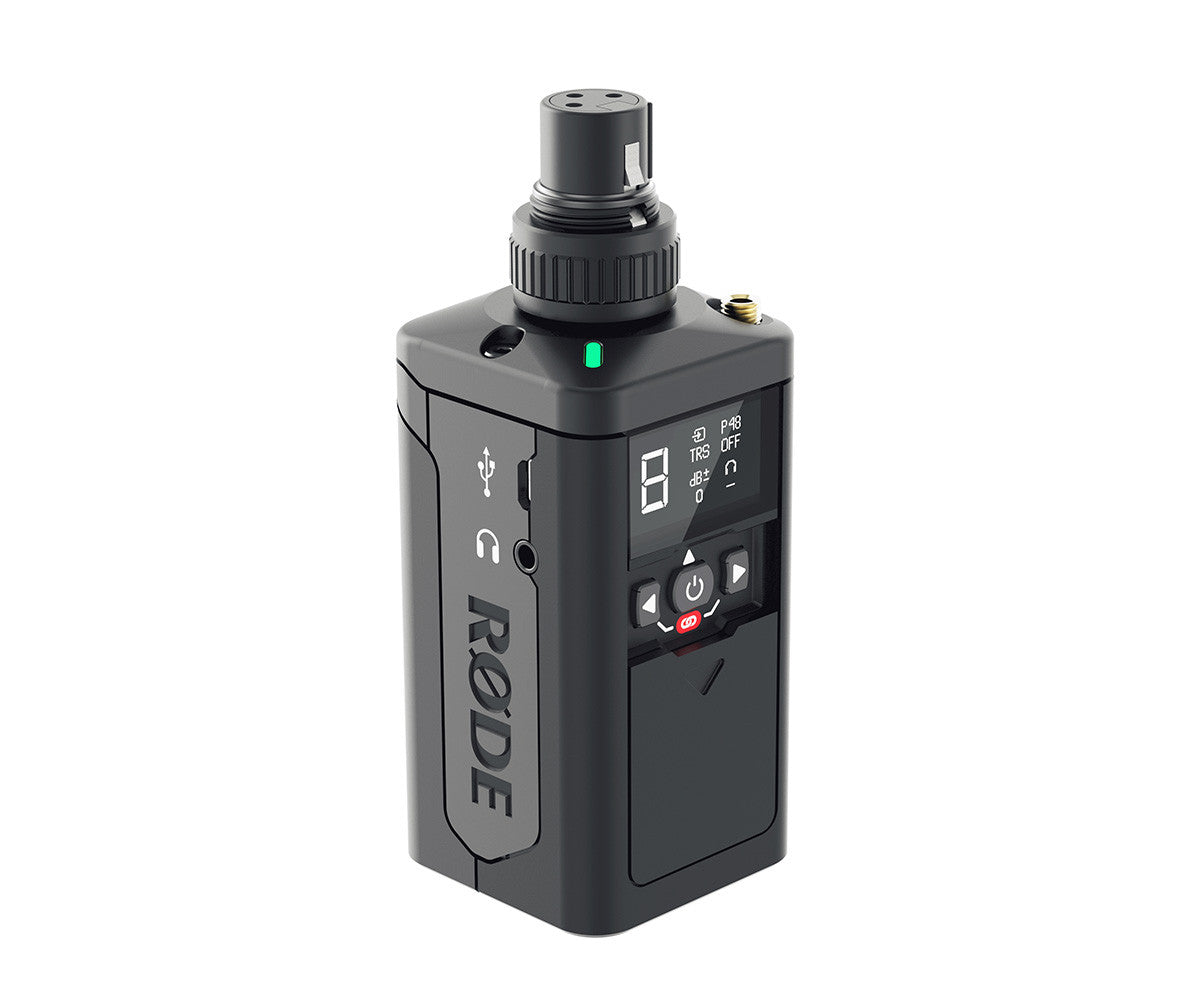

Transmitter (TX-XLR)
Power source 2 X AA Battery, Sony NP-F Battery Or MicroUSB
Antenna Internal
Input connection XLR With Locking Collar, 3.5mm TRS Locking Jack Socket
Input impedance 1kΩ (XLR), 10kΩ (3.5mm)
Dimensions 120mm X 45mm X 45mm
Weight 222gm
