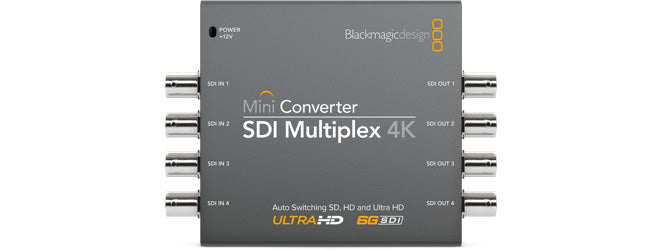

Blackmagic Mini Converter SDI Multiplex 4K

Blackmagic SKU: BMD-CONVMSDIMUX4K | Helix SKU: BMDCONVMSDIMUX4K

The converter you need when converting between Quad Link HD‑SDI, Dual Link 3G‑SDI and Single Link 6G‑SDI Ultra HD equipment. Mini Converter SDI Multiplex 4K includes 4 x 6G‑SDI inputs and 4 x 6G‑SDI outputs so it can convert in both directions. Also converts between Dual Link HD‑SDI 4:4:4 and Single Link 3G‑SDI.

SDI Video Inputs

4 x 1.5Gb/s SDI or 2 x 3G‑SDI or 1 x 6G‑SDI.

SDI Video Output

4 x 6G‑SDI.

Multi Rate Support

Auto detection of SD, HD or 6G‑SDI on Input 1

Updates and Configuration

USB

Reclocking

Yes

Mini Converter SDI Multiplex 4K

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60

2K Video Standards

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K Video Standards

4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601.

SDI Video Rates

SDI video connections are switchable between standard definition, high definition and 6G‑SDI

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision

4:2:2 and 4:4:4

SDI Color Space

YUV and RGB

SDI Auto Switching

Automatically detects SD, HD or 6G­‑SDI.

Software

Software Control

Mac™ and Windows™ software upgrade via USB.

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac icon

Mac 10.12 Sierra,
Mac 10.13 High Sierra or later.

Windows Icon

Windows 8.1 or Windows 10.


Settings Control

Mini Switches or USB software.

Power Requirements

Power Supply

+12V universal power supply included with international socket adapters for all countries. Cable tie point.

Power Consumption

5.2 Watts

Operational Voltage Range

12 - 31V DC

Physical Specifications

Mini Converter SDI Multiplex 4K

Environmental Specifications

Operating temperature

0° to 40° C (32° to 104° F)

Storage temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non‑condensing

Mini Converter SDI Multiplex 4K

12V universal power supply with international socket adapters

3 Year Limited Manufacturer's Warranty.
