Sigma 20mm F1.4 DG HSM | Art Lens - L-Mount


Vendor: Sigma


Pin It

Next → ← Previous

Sigma 20mm F1.4 DG HSM | Art Lens - L-Mount

Sigma SKU: 412969 | Helix SKU: SM412969

*Expected delivery Fall 2019*

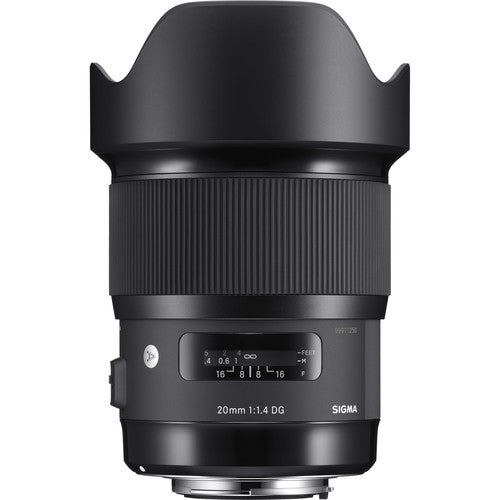

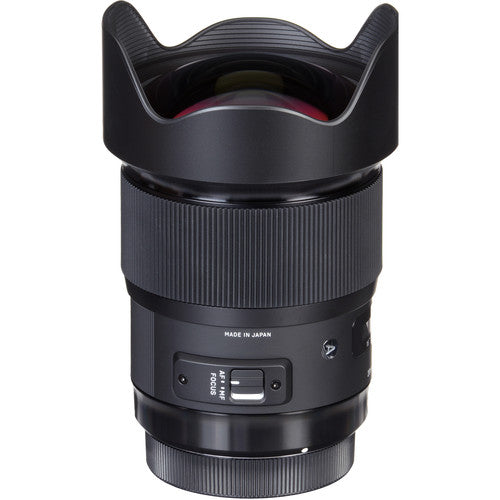

The Sigma 20mm 1.4 DG HSM Art is a state of the art wide-angle prime lens designed for Full Frame cameras but will work with APS-C sensors as well. Using over 50 years of lens making experience, particularly the knowledge gained from the 35mm 1.4 Art and the 24mm 1.4 Art, the 20mm 1.4 Art is the widest large aperture Art lens to date. The latest optical design allows for the utmost in image quality with careful attention paid to edge to edge performance. Through decades of experience in lens design and Sigma Global Vision lens manufacturing, the 20mm incorporates both “F” Low Dispersion (FLD) glass, and five Special Low Dispersion (SLD) glass in a design of 15 elements in 11 groups. The combination of advanced optics and optimized lens power distribution minimizes spherical aberration, axial chromatic aberration and field curvature, producing outstanding image quality. With class leading performance, this lens is ideal for landscape photography, videography, astrophotography, lowlight/indoor photography and event photography. As with all Global Vision lines, the 20mm will be tested using the proprietary “A1” measuring system ensuring the highest standard of operation. The Sigma 20mm Art is compatible with the USB dock to update and customize and is also compatible with the Mount Conversion Service. A staple procedure for the Global Vision lines, every lens will be tested using the proprietary “A1” measuring system.

LENS CONSTRUCTION

Lens Construction

SPECIFICATIONS

Lens Construction 15 elements in 11 groups
Angle of View (35mm) 94.5°
Number of Diaphragm Blades 9 (Rounded diaphragm)
Minimum Aperture F16
Minimum Focusing Distance 27.6 cm / 10.9 in.
Filter Size (mm)  -
Maximum Magnifications 1:7.1
Dimensions
(Diameter x Length)
φ90.7mm x 129.8mm / 3.6 in. x 5.1 in.
Weight 950 g / 33.5 oz.
Corresponding Mounts
Sigma HSM
DG
Nikon HSM
DG
Canon HSM
DG
Sony E** HSM
DG
HSM -Hyper-Sonic Motor
DG - DG for Digital Full Frame and APS-C

* The appearance, specifications, and the like of the product are subject to change for improvement without notice.

**This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.

GEOMETRICAL MTF CHART

Geometrical MTF

DIFFRACTION MTF CHART

Diffractional MTF

EFFECTIVE DISTORTION

Effective Distortion

RELATIVE DISTORTION

>Relative distortion

VIGNETTING

Vignetting
