Studio Assets 7" HDMI Viewing Monitor

Studio Assets SKU: SA7000 | Helix SKU: SA7000

Overview

This 7" monitor features an IPS screen with a wide viewing angle and 1920 x 1200 pixel resolution. It handles up to 4K input and has an HDMI pass through to allow you to connect a recording device to the monitor. The rugged metal housing has a slim profile and offers a 1/4"-20 mount on the top and the bottom. The monitor is powered by a Sony NP-F style battery (sold separately).


Features:
  • Brightness Histogram
  • Embedded Audio
  • Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
  • False Colors
  • Zebra Exposure (1-100IRE adjustable)
  • Check Field (Red, Green, Blue, Mono)
  • Scan Mode (Under Scan, Over Scan)
  • Anamorphic Mode (1.3x, 2.0x, 2.0x mag)
  • Image Flip (H, V, H/V)
  • Image Freeze
  • Center Marker
  • Screen Marker (80%,85%,90%,93%,96%, 2.35:1)
  • Ratio Marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
  • Color Temperature Adjustment
  • Nine Grid (Nine Grid Zoom: zoom one of the images to realize the full screen)
  • Zoom (4X, 9X, 16X)
  • Scan Mode (Under Scan, Over Scan)
  • Pixel to Pixel
  • Zoom All
  • U/D Zoom
  • L/R Zoom

Specifications:

Screen Size: 7"
Screen Type: IPS
Resolution: 1920 x 1200 Pixels
Aspect Ratio: 16:10
Brightness: 450cd/m2
Contrast Ratio: 1200:1

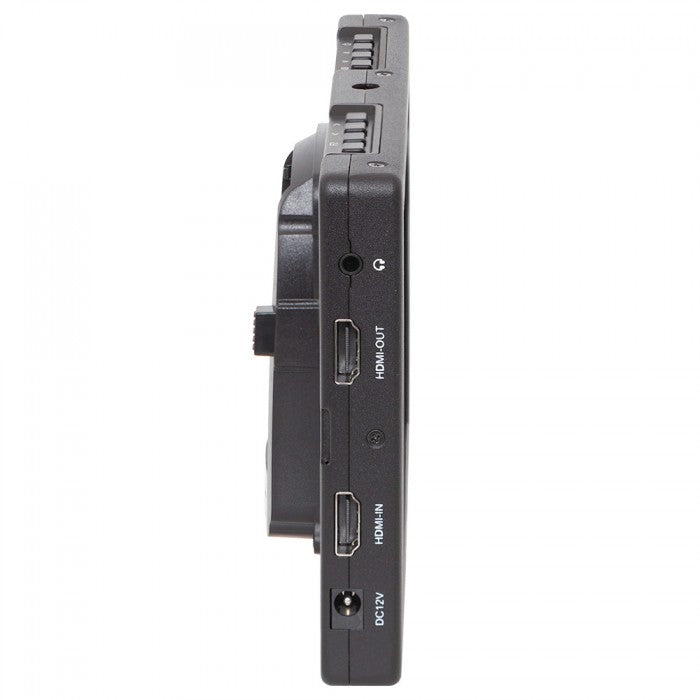

Input: 1 HDMI (Compatible with 4K Input)
Output: 1 HDMI
Audio: Stereo Headphone, Speaker
HDMI Input/Output Supported Formats:
  • 480i/576i/480p/576p
  • 1080i (60/59.94/50)
  • 720p (60/59.94/50/30/29/25/24/23.98)
  • 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
  • 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
Input Voltage: 7~24V
Power Consumption: Less than 8W

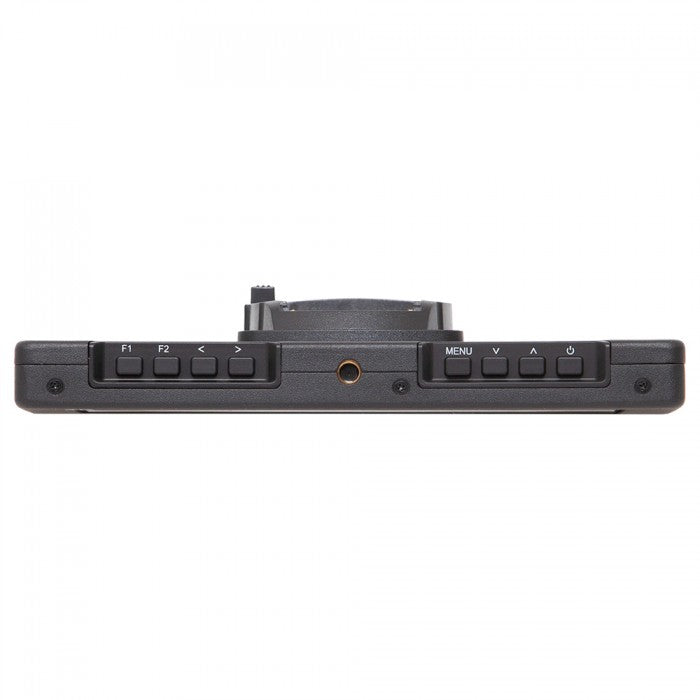

Mounting Options: 1/4"-20 Mount on Bottom, 1/4"-20 Mount on Top, Includes mini Ball Head.

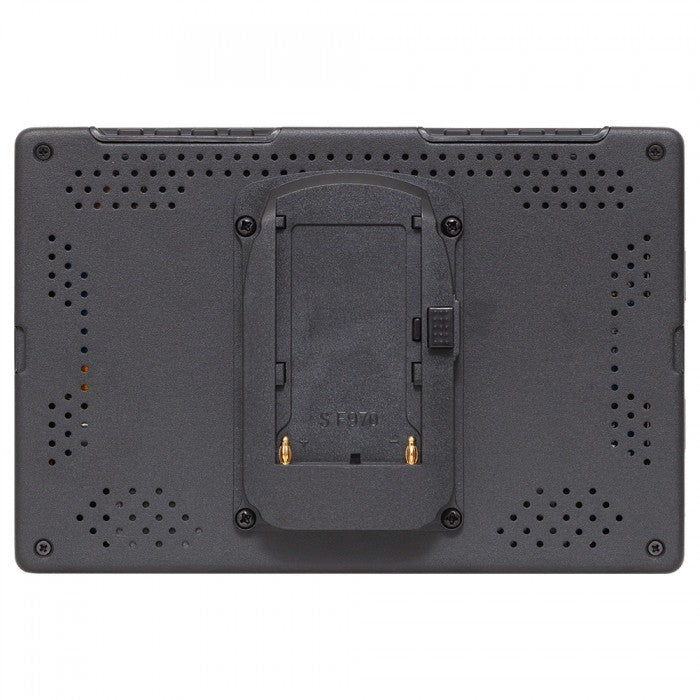

Battery Plate: Sony NP-F Style

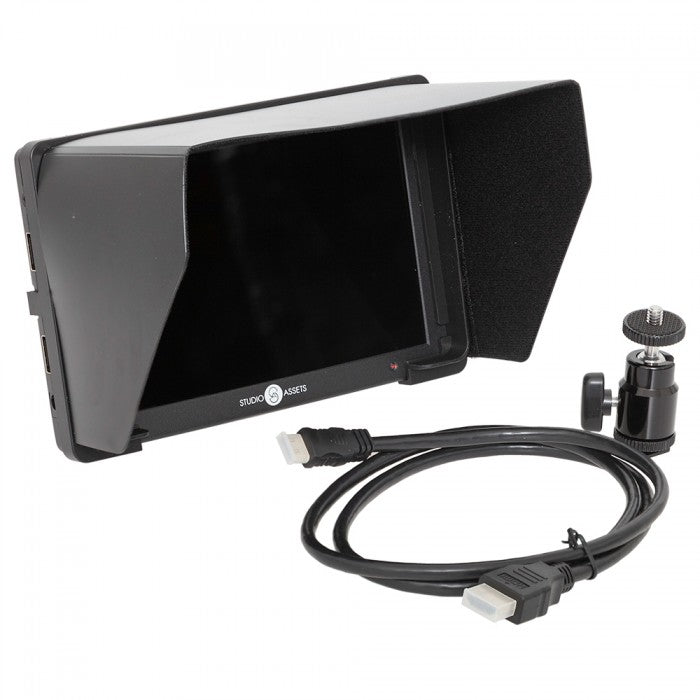

In The Box:
(1x) Monitor
(1x) Mini ball head mount with cold shoe
(1x) HDMI Cable
(1x) Sunshade
