F&V V-mount Battery System with HDMI Splitter - Kit 102021020101

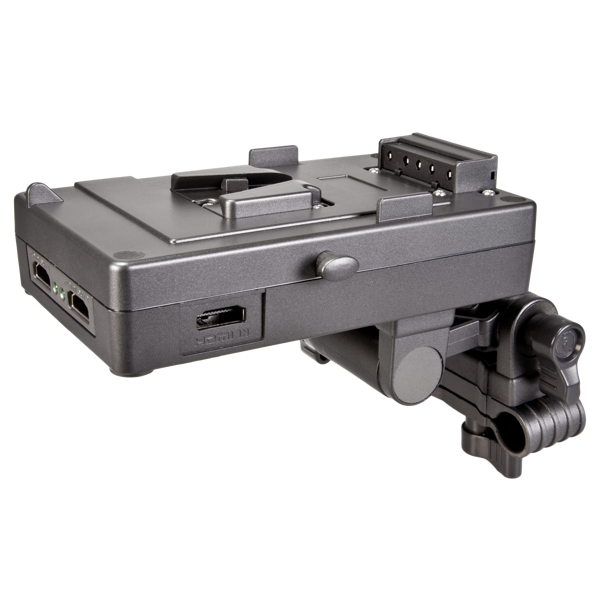

The V-Mount Battery System with HDMI Splitter accepts all standard v-mount batteries. It mounts onto standard 15mm rods and features four (4) female D-tap connections: DC5V, DC8V, DC12V, and DC14.4V. Whether you need to power an on-camera light, a monitor, or an onboard accessory, this V-Mount Battery System will feed your accessories’ power for an extended period of time.

As well as supplying additional power outputs, this system also contains a built-in HDMI splitter. A single female HDMI input, outputs two (2) female HDMI outputs

The battery system is also capable of tilting up and down, allowing for a configuration that meets the needs of your camera rig set-up.

Four (4) D-tap Outputs
Two (2) HDMI Outputs
Adjustable Tilt of Battery Plate
Fits onto 15mm Rods

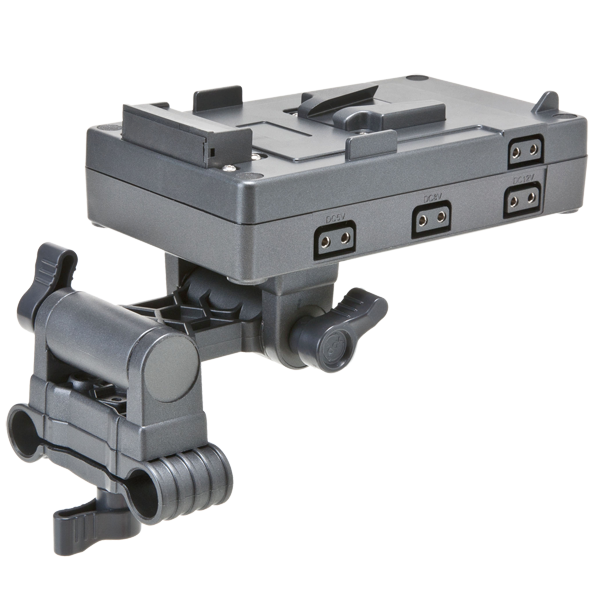

Power Outputs: Four (4) D-tap outputs: DC5V, DC8V, DC12V, 14.4V

Operating Voltage: DC16V

Battery Mount/Connection Type: V-mount

HDMI Input: Female (Type A) HDMI

HDMI Output:  Two (2) Female (Type A) HDMI

Nominal Dimensions: 16.5 x 10 x 9.5 (cm)

Nominal Weight: 12 oz / 340 g

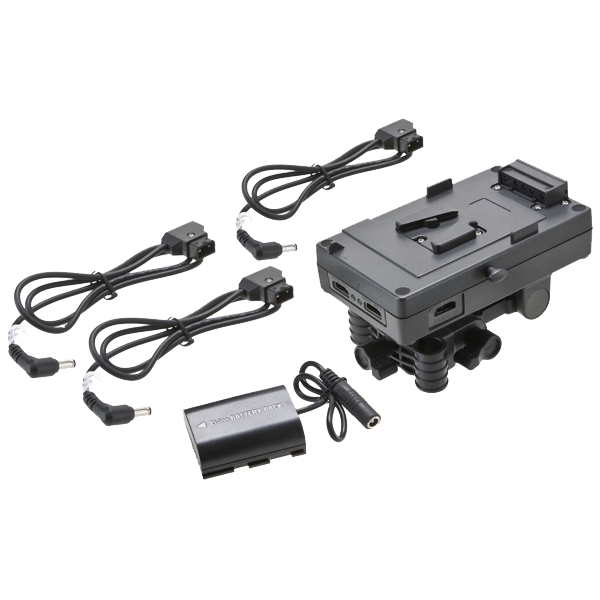

Package Contents

(1) x V-mount Battery System

(3) x D-tap Male to DCΦ2.5 Female - 20" - 10206002;

(1) x Female DCΦ2.5 to Canon LP-E6-  10208007;
