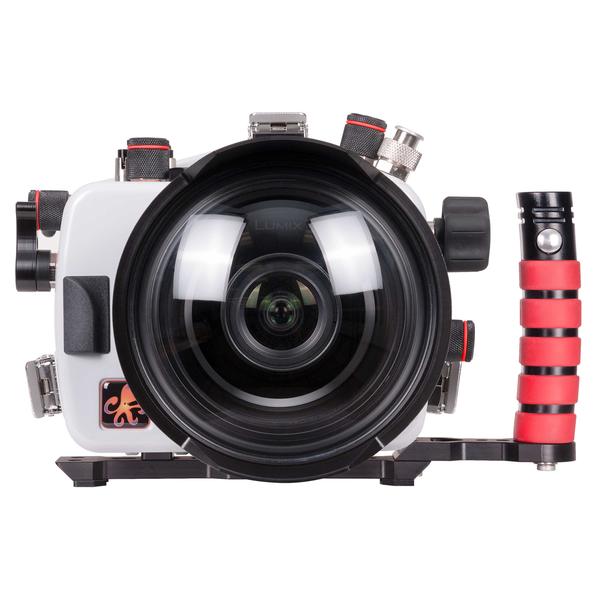

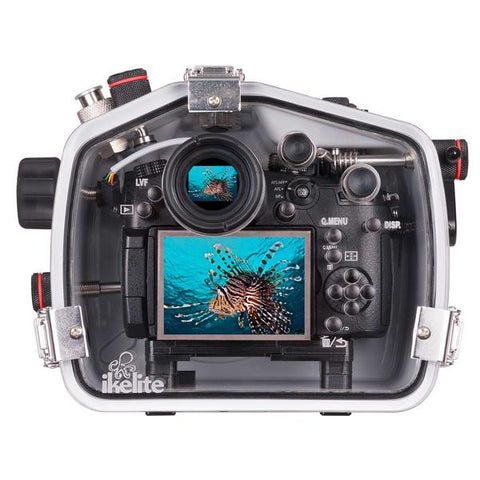

Ikelite Panasonic GH5 GH5s Housing 200DL
$ 1,695.00 - Sold Out
Ikelite Panasonic GH5 GH5s Housing 200DL 71305 - IK71305
A full featured and durable waterproof housing for Panasonic Lumix GH5 and GH5S Mirrorless Micro Four-Thirds cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.
-
Key Features
200' (60m) depth rating
Perfect for any wet environment including surf, dive, and pool use
Supremely functional for maximum creative control—access is provided for all important camera functions
The new Dry Lock (DL) Port System gives added security at the surface of the water and accommodates large diameter lenses
Extra-large, soft touch zoom knob; Zoom is accessible for many lenses using our unique universal zoom gear system
Vacuum valve included; Test your system after assembly prior to entering the water; Pump sold separately
Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes; Optional TTL circuitry provides automatic exposure with compatible Ikelite DS strobes
Control symbols are laser etched into the back and will never fade or rub off
Quick install camera mount plate does not need to be removed for battery or memory card access
One spare 1/2-20 threaded accessory port locations on the front of the housing for the addition of optional accessories
Includes a balanced aluminum base with left-hand quick release handle; Right-hand handle sold separately
Signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel
ABS-PC construction is fundamentally corrosion-resistant
Made in the USA; Individually inspected for fit and water pressure tested to depth
1 year limited warranty
TTL Exposure
Install optional Panasonic TTL Kit # 46031 for automatic TTL exposure with compatible Ikelite DS-model Strobes. Ikelite DS-model strobes may be used with this system without the Panasonic TTL Kit installed, but will not provide TTL exposure.
Non-Ikelite Strobes
SEA&SEA, INON, and Nikonos strobes with an electrical connection can be triggered in manual exposure modes using an electrical sync cord. Strobes without an electrical sync cord connection cannot be attached to this system unless slaved off of a hard-wired strobe.
Ikelite Non-Digital Strobes
Older non-digital strobes featuring an ICS-5 electrical sync cord bulkhead can be used with this system in manual exposure modes.
Fiber Optic
Fiber optic only strobes are not compatible with this installation. An external strobe must be connected by electrical sync cord.
Remote Triggering
Strobes with remote slave capabilities may be triggered off of a flash attached to the housing by electrical sync cord. Ikelite DS strobes support remote triggering using the Optical Slave Converter Product number 4403 or the Water Wizard system (manufactured and sold by Aquatica).
Compatibility
This housing is only compatible with the Panasonic Lumix GH5 and GH5S Mirrorless Cameras as shipped by the manufacturer. Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.
Differences in lens and control placement prevent other DSLR models from being used in this housing. We are not aware of any other models which may be used in or adapted to this particular housing.
The GH5 camera body is not compatible in older housings for Panasonic Lumix GH3/GH4 cameras.
FL Port Conversion
This housing comes standard with the new Dry Lock (DL) port mount. Ports designed for our Four Lock (FL) or Two Lock DSLR housings are not compatible with this system. This housing can be converted by the user to the FL system by removing the DL mount and adding four # 9072.24 port locks.
The DL mount is not designed to be removed and replaced repeatedly. Conversion back to the DL system at a later time requires return of the housing to Ikelite for re-installation and water pressure testing.
DL ports are considerably lighter weight than the comparable FL versions and support a more robust mount. The DL system is recommended for surf photography.
Specifications
200' (60m) depth rating
Compatible with DL system lens ports
Controls are provided for all important camera functions; Controls are not provided for Diopter Adjustment Control, Rear Control Dial, or Mode Dial Lock. Mode Dial must be un-locked prior to installation for use underwater
1/4-20 thread base mounts with 3.5" spacing
Near neutral buoyancy in fresh water
Actual buoyancy varies depending on choice of lens and port
5.1 lb (2.3 kg)
9.2 x 7.1 x 6.5" (234 x 180 x 165 mm)
-
In the Box
Housing
Rear O-ring # 0132.61
Front O-ring # 0132.45
Base with Left-Hand Quick Release Handle # 4077.67
Port Hole Cover # 0200.92
Zoom Gear Retainer # 75900
Waterproof Bulkhead Cap # 9104.5
Silicone Lubricant # 0184.2
Control + Pushbutton Tip Assortment # 9249
1/16" Hex Key # 0945.16
1/8" Hex Key # 0945.18
1 year limited warranty

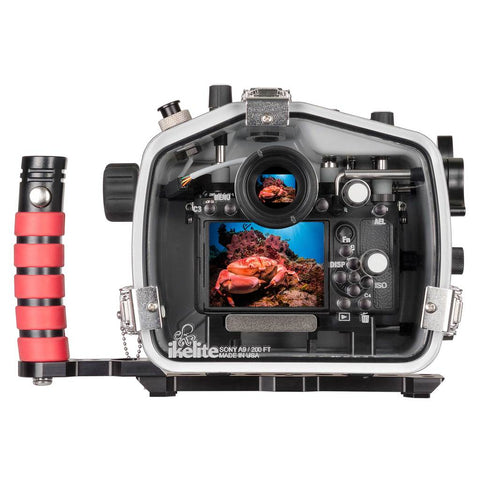

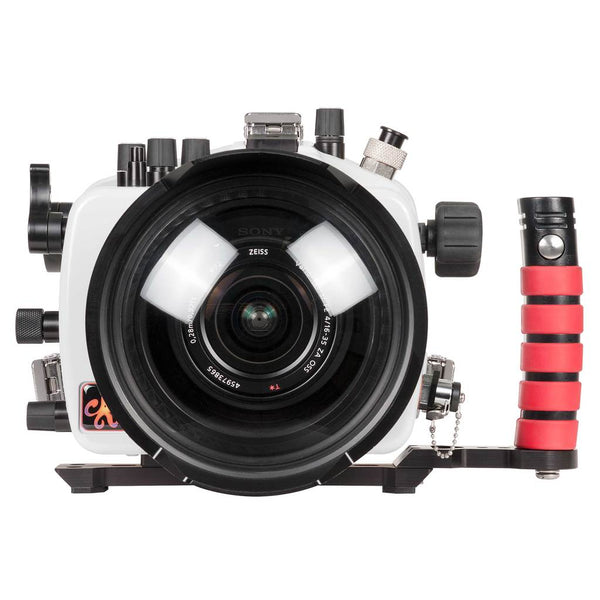

ikelite 200DL Underwater Housing for Sony Alpha A9 Mirrorless Cameras
$ 1,695.00
ikelite 200DL Underwater Housing for Sony Alpha A9 Mirrorless Cameras
ikelite SKU: 71473 | Helix SKU: 71473
Overview
A full featured and durable waterproof housing for Sony Alpha A9 Mirrorless cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.
- Depth Rating: 200'
- Ikelite 5-Pin Bulkhead Strobe Connector
- Manual Flash Exposure, TTL Optional
- Mechanical Controls
- Access to All Essential Camera Functions
- White ABS/Polycarbonate Body, Clear Back
- Interchangeable DL Lens Port System
- Ships without Required Lens Port
- Vacuum Valve Included
- Made in the USA
Compatibility
This housing is only compatible with the Sony Alpha A9 camera as shipped by the manufacturer. Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.
Differences in lens and control placement prevent other camera models from being used in this housing. We are not aware of any other models which may be used in or adapted to this particular housing.
Specifications
200' (60m) depth ratingCompatible with DL system lens ports
Controls are provided for all important camera controls; Controls are not provided for the Diopter adjustment dial, Multi-selector, Media slot cover switch, Focus mode dial; Focus mode dial lock release button
1/4-20 thread base mounts with 3.5" spacing
Near neutral buoyancy in fresh water
Actual buoyancy varies depending on choice of lens and port
5.0 lb (2.3 kg)
9 x 7.2 x 6.5" (229 x 183 x 168 mm)
Vacuum valve included (pump sold separately)
Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes; Optional TTL accessories provides automatic exposure with compatible Ikelite DS strobes
ABS-PC and Lexan construction is fundamentally corrosion-resistant
Made in the USA; Individually inspected for fit and water pressure tested to depth
1 year limited warranty
What's In the Box
HousingRear o-ring # 0132.59
Front o-ring # 0132.45
Base with Left-Hand Quick Release Handle # 4077.67
Port Hole Cover # 0200.92
Zoom Gear Retainer # 75900
Tool for Zoom Gear Retainer # 0945.06
Waterproof Bulkhead Cap # 9104.5
4-40 Hex Key # 0945.11
1/16" Hex Key # 0945.16
1/8" Hex Key # 0945.18
Control + Push Button Tip Assortment # 9249
Silicone Lubricant 1cc Tube # 0184.2

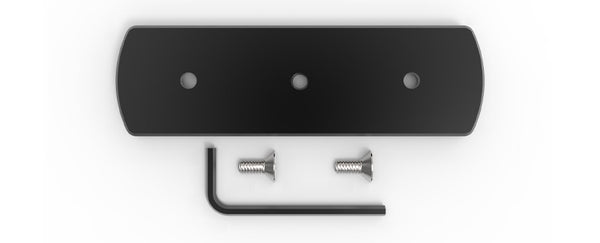

SeaLife Tray Adapter for Ikelite Housings
$ 39.00
SeaLife Tray Adapter for Ikelite Housings
SeaLife SKU: SL997 | Helix SKU: SL997
Overview
|
Connect an Ikelite housing to Flex-Connect Trays Easily connect your Ikelite camera housing to the Flex-Connect Single or Dual Tray. This anodized aluminum mounting plate attaches to Ikelite housings and also features a standard 1/4-20 tripod mount for attaching to Flex-Connect Trays. Includes two 12-24 type* stainless steel mounting bolts and a hex-wrench for quick assembly. |

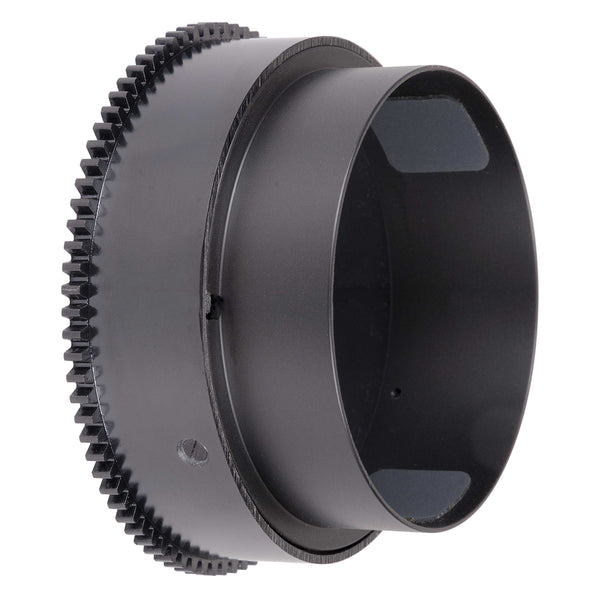

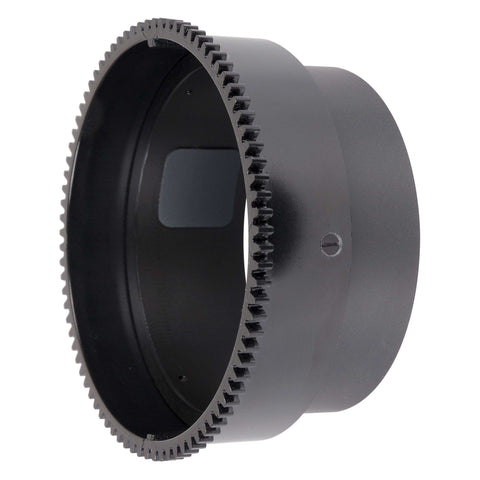

Ikelite Zoom Sleeve for Olympus 7-14mm Lens (DLM Type B)
$ 35.00 - Sold Out
Ikelite Zoom Sleeve for Olympus 7-14mm Lens (DLM Type B)
Ikelite SKU: 5515.09 | Helix SKU: 551509
Overview
A special zoom sleeve designed for use with the DLM 6 inch Dome Port with Zoom. For use with housings using the DLM Type B port mount. See DLM port charts for compatibility.

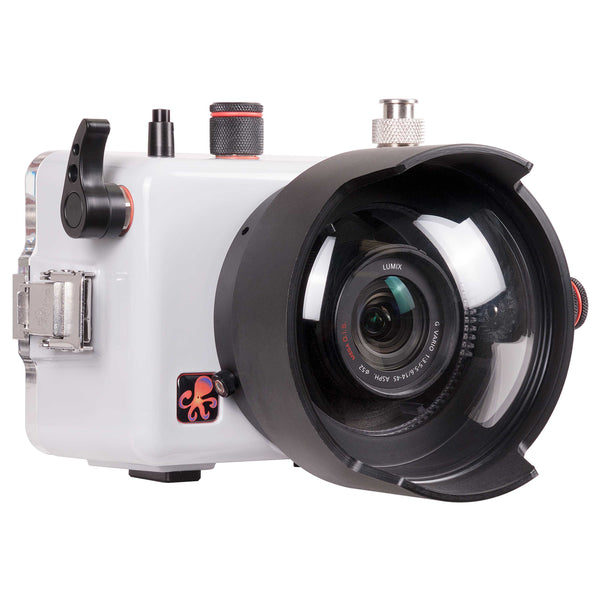

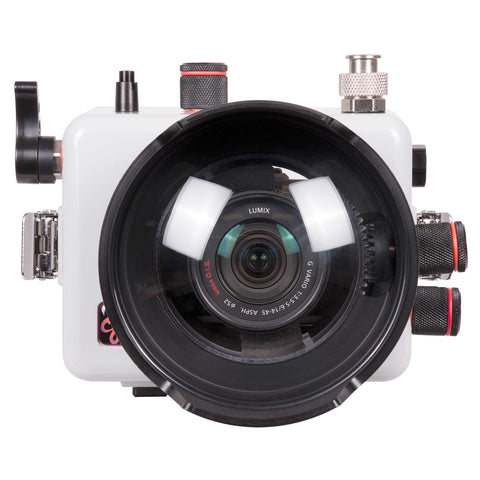

Ikelite 200DLM/A Underwater Housing for Olympus PEN E-PL8 Mirrorless Micro Four-Thirds Digital Camera
$ 1,049.95
Ikelite 200DLM/A Underwater Housing for Olympus PEN E-PL8 Mirrorless Micro Four-Thirds Digital Camera
ikelite SKU: 6951.08 | Helix SKU: 695108
Overview
This housing requires the addition of a compatible lens port for waterproof operation. Lens port not included.
Superb handling
This powerful compact housing packs in all of our latest upgrades to controls and ergonomics. The shutter lever has been updated to a more sensitive and natural feeling curved design. The standard control hugs the side of the housing for comfortable use when hand holding. It can be easily extended using the optional Shutter Trigger Extension # 4077.93 to put it within easy reach when using a right-hand quick release handle.
Controls are located in the same configuration as on the camera to replicate the muscle memory and familiarity you've developed with your camera on the surface.
Even our push buttons have been redesigned to reduce weight and salt build-up. The video record start/stop button is bright red anodized so that you never miss the action. The back of the housing features laser engraved control symbols which will never fade or fall off.
The camera mount is front-loading for easy installation and removal. A small mounting plate attaches to the bottom of the camera and secures in the front of the housing. The camera mounting plate does not need to be removed from the camera for surface use or when changing the battery or memory cards. The mounting plate features a 1/4-20 threaded mount on the bottom so that it can be attached to a tripod on the surface.
The camera's large, super-bright LCD screen is viewable edge-to-edge through the back of the housing.
True TTL exposure
Light is absorbed as it travels through even short distances underwater, making colors appear dull or monochromatic. To preserve the natural colors of your subject, it's important to stay within arm's reach—no more than 3-4 feet (1m) away.
An integrated TTL circuit is fine-tuned to the Olympus PEN E-PL8 flash exposure protocol for the most accurate exposure possible. The circuit is powered by the strobe for zero maintenance and no batteries to change. Exposure compensation in TTL mode is supported using the camera's built-in control. At this time, only Ikelite DS strobes are capable of powering the circuitry. SEA&SEA, INON, and Nikonos strobes will still enjoy fast recycle times and improved battery life, but must be used in manual exposure modes only.
This housing provides a direct electrical connection to the camera's external flash hot shoe. Cord attachment is as easy as screwing in a light bulb, and the threaded fit prevents accidental detachment during use. The bulkhead connection has been moved to the top of the housing to keep cords out of your way and reduce strain on the cord ends. A variety of sync cord terminations are available for Ikelite, SEA&SEA, INON, or Nikonos strobes for ultimate versatility.
The Olympus PEN E-PL8 camera does not feature a built-in flash. Triggering of fiber optic strobes is not supported at this time. A strobe must be connected by electrical sync cord.
A bright constant-on video light can be used instead of or in addition to a flash. A constant-on light is not as bright as a strobe flash. Constant-on lights do provide added versatility because they can be used for focus assist and for improved colors when shooting video.
Two 1/4-20 threaded mounting points are included on the bottom of the housing for the attachment of a tray and handle system. Handles provide improved ergonomics underwater and are the foundation for your lighting mounts.
There is a simple rule that brighter is better underwater. A high-quality lighting system can produce magazine quality results with almost any camera system.
The Lens Support You Want
It couldn't be more simple to change ports than this system—just press the port on and tighten three thumb screws. Feel positive reinforcement that the port is secure with simple parts you can trust in a remote location.
This housing accepts a variety of ports from our DLM Port System to accommodate all of the most popular zoom, macro, and wide angle lenses. Our custom optical grade acrylic domes components provide the color, clarity, and durability of glass at a fraction of the travel weight and cost.
Lens port sold separately.
Durability and corrosion free performance
Our new white ABS-PC blend housing provides strength and corrosion free performance year with minimal maintenance. The specially formulated color deflects the sun to keep your camera running cooler, longer. Compared to black or clear housings, the light color provides superior contrast for enhanced view of the camera, LCD screen, and o-ring seal.
The unique rear seal design prevents accidental twisting or stretching of the o-ring for simple and confident assembly. We have eliminated the need for an o-ring groove or channel which can trap sand, dirt, or debris. Two double-passivated stainless steel locking lid snaps are simple to use and virtually unbreakable. The clear back allows you to see the o-ring form a solid, watertight seal as it closes.
A spare 1/2-20 threaded accessory port is provided on the side of the housing for easily installation of the optional Vacuum Kit # 47012. A vacuum kit allows you to pressurize the housing to check for proper assembly prior to entering the water.
Ikelite products are designed, built and tested in the USA. We use locally sourced, top-grade materials. Our housings are built by hand and individually tested for fit and function. Every unit is water pressure tested to 200 feet (60m). We back our products with over 50 years of experience and the best reputation for service within the dive industry.
This housing is only compatible with the PEN E-PL8 camera.
Strobe Compatibility
Serial number requirements
- AF35: not compatible
- DS50: yes, above serial number 70000
- DS51: yes
- DS125: yes, above serial number 5000
- DS160, DS161: yes
- DS200: yes, above serial number 7163
Electrical sync cord compatibility
- Ikelite-to-Ikelite TTL Sync Cord (TTL) Product 4103.51
- Ikelite-to-Ikelite TTL Dual Sync Cord (TTL) Product 4103.52
- SEA&SEA / INON Strobe-to-Ikelite Non-TTL Sync Cord (Manual) Product 4118.1
- SEA&SEA / INON Strobe-to-Ikelite Non-TTL Dual Sync Cord (Manual) Product 4118.2
- Nikonos SB Strobe-to-Ikelite Non-TTL Sync Cord (Manual) Product 4116.31
- Nikonos SB Strobe-to-Ikelite Non-TTL Sync Cord (Manual) Product 4116.32
Specifications
- 200 ft (60m) depth rating
- DLM Type A port mount
- Controls for all important camera functions; controls are not provided for Fn button or Zoom button
- Ikelite flash bulkhead connector with built-in TTL circuitry
- Two 1/4-20 threaded tray mounts with 3-inch (76mm) spacing
- Slightly negative buoyancy in fresh water
- Actual buoyancy varies depending on choice of lens and port
- 2.9 pounds (1.3 kg)
- 7.5 x 5.9 x 5.2 in (191 x 150 x 132 mm)
- ABS-PC, acrylic, and acetyl construction
What's Included
- Housing
- Housing Rear O-Ring # 0110
- Housing Front O-Ring # 0132.36
- Waterproof bulkhead cap # 9104.5
- Control + Push Button Tip Assortment # 9249.3
- 1/8" Hex Key # 0945.18
- Lubricant # 0184.1
- 1 year manufacturer warranty
Lens port required for waterproof operation. Lens port sold separately.

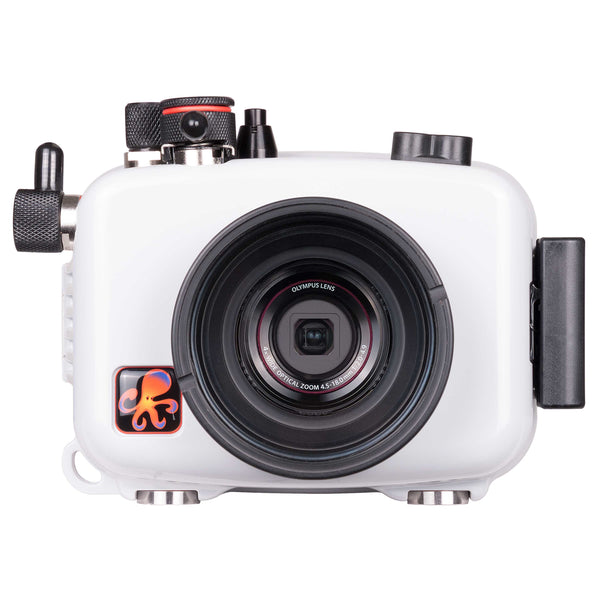

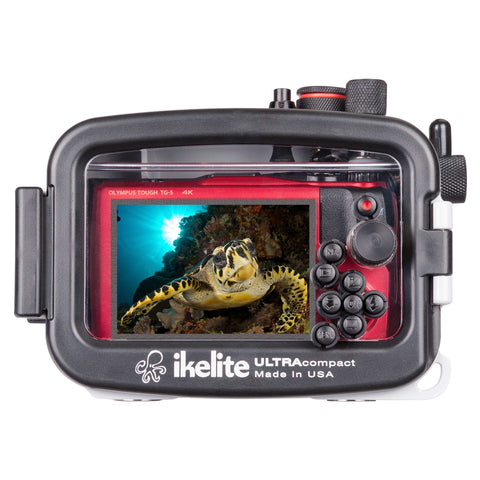

Ikelite Underwater Housing and Olympus Tough TG-5 Camera Kit
$ 699.00
Ikelite Underwater Housing and Olympus Tough TG-5 Camera Kit
Ikelite SKU: 6233.07 | Helix SKU: 623307
Overview
The TG-5 has a fast 25-100mm mid-range zoom lens with a macro mode that betters almost every other compact out there right now. The TG-5 supports ultra HD 4K video and RAW image capture, which is a powerful tool for post-dive color corrections using either Adobe Lightroom or the included software. The TG-5 is waterproofed to 50' (15.2m) even without a housing, making it the ideal outdoor companion.
This housing is designed for a deeper depth rating and more robust handling than the comparable Olympus brand model. The front of the lens port has a standard 67mm thread for the direct attachment of most popular wide angle and macro wet lenses. A side-mounted shutter lever is more comfortable to use than top mounted styles.
Strobe Compatibility
Due to the position of the camera's flash in relation to its lens, the built-in flash is not suitable to illuminate photos under water. For the best color and clarity, we recommend adding a filter, strobe, or constant-on light. The built-in flash may be used to trigger external strobes via fiber optic sync cord. Two ports are provided for the connection of up to two fiber optic cords.
Any Ikelite DS strobe may be connected using the Fiber Optic Converter # 4401.1 and Fiber Optic Cord # 4501. The AF35 strobe is not compatible with this housing.
Fiber optic cord compatibility
- Ikelite Fiber Optic Coiled Cord # 4501
- INON Optical D Cable "Non-wireless type" L-Connector
- SEA&SEA Fiber Optic Cable (L-type) # 50107
- SEA&SEA Fiber Optic Cable II # 50128
- Olympus UW Fiber Optic Cable PTCB-E02
- Nauticam Optical Fiber Cable # 26211 Nauticam to INON
- Nauticam Optical Fiber Cable # 26212 Nauticam to Sea&Sea
Specifications
- 200 ft (60m) depth rating
- Controls for all camera functions except INFO button
- Slightly positive buoyancy in fresh water
- Central 1/4-20 thread tray mounting
- Weight 1.1 lb (500 g)
- Dimensions 6.2 x 5.5 x 3.6 in (158 x 141 x 85 mm) including projections
- 3.0" diameter glass lens port with 67mm thread
What's Included
- Underwater Housing # 6233.06
- Olympus Stylus TOUGH TG-5 Digital Camera (Red)
- LI-92B Rechargeable Lithium-Ion Battery (3.6V, 1350mAh)
- CB-USB8 Cable (26")
- F-2AC AC Adapter
- Wrist Strap
- Software CD-ROM
- Limited 1-Year Warranty

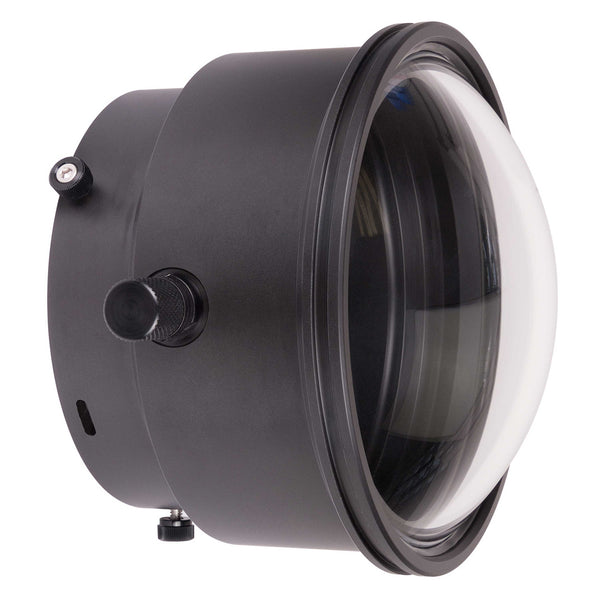

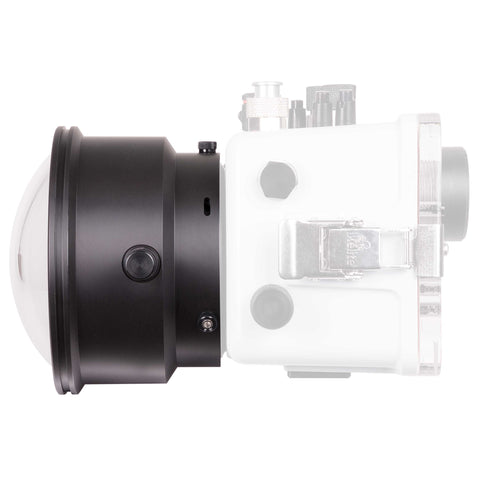

Ikelite DLM 6 inch Dome Port with Zoom Extended 1.0 Inch
$ 449.95
Ikelite DLM 6 inch Dome Port with Zoom Extended 1.0 Inch
Ikelite SKU: 5516.17 | Helix SKU: 551617
Overview
An extended dome port providing zoom function for most mirrorless interchangeable zoom lenses when used with the appropriate zoom sleeve.
An optical-grade acrylic 6-inch diameter dome allows you to fully take advantage of the angle of view of your lens. Acrylic produces virtually identical image quality to glass yet is much lighter weight and easier to pack.
Our unique zoom sleeves are simple and affordable. Zoom sleeves are particular to the lens for proper operation. Refer to the appropriate port for your housing to determine compatibility.
A dome shade is in process for this item. It is expected to become available in late 2017.
Specifications
- Delrin body with acrylic dome
What's Included
- Dome Port
- Neoprene cover # 0200.1
- Silicone lubricant # 0184.2

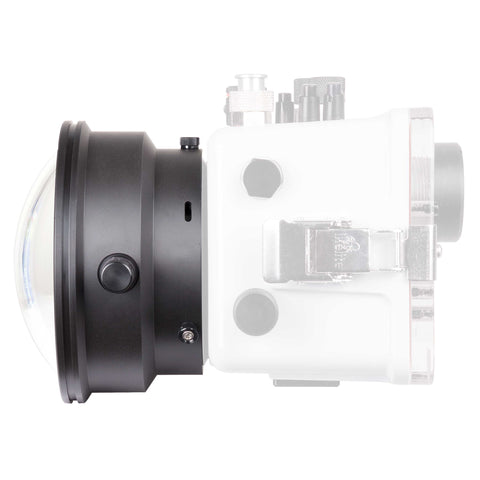

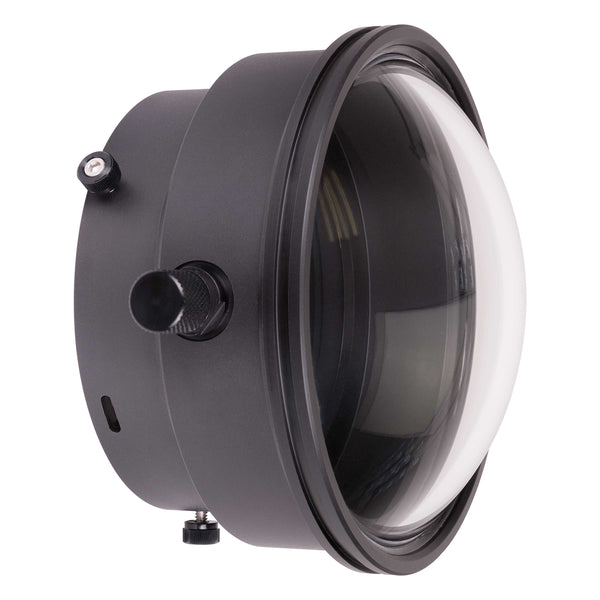

Ikelite DLM 6 inch Dome Port with Zoom Extended .375 Inch
$ 424.95
Ikelite DLM 6 inch Dome Port with Zoom Extended .375 Inch
Ikelite SKU: 5516.16 | Helix SKU: 551616
Overview
An extended dome port providing zoom function for most mirrorless interchangeable zoom lenses when used with the appropriate zoom sleeve.
An optical-grade acrylic 6-inch diameter dome allows you to fully take advantage of the angle of view of your lens. Acrylic produces virtually identical image quality to glass yet is much lighter weight and easier to pack.
Our unique zoom sleeves are simple and affordable. Zoom sleeves are particular to the lens for proper operation. Refer to the appropriate port for your housing to determine compatibility.
A dome shade is in process for this item. It is expected to become available in late 2017.
Specifications
- Delrin body with acrylic dome
What's Included
- Dome Port
- Neoprene cover # 0200.1
- Silicone lubricant # 0184.2

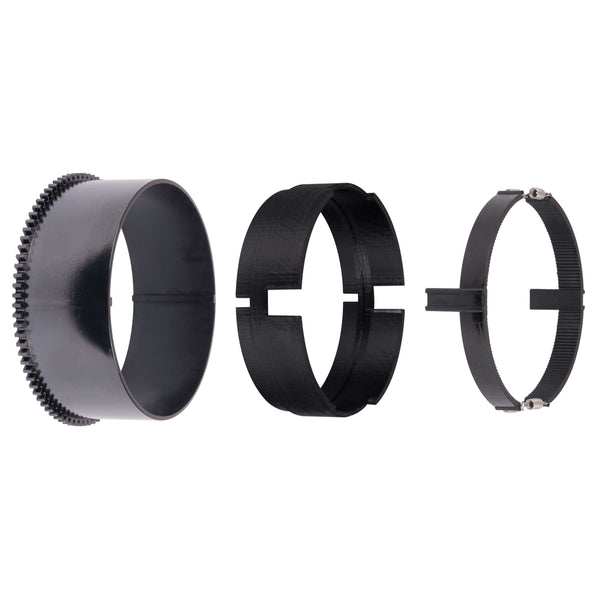

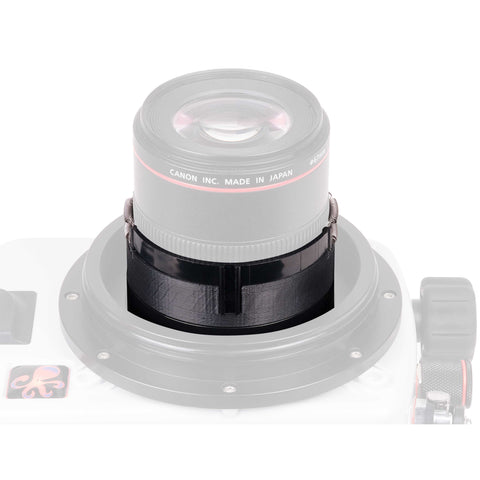

Ikelite Focus Gear for Canon EF 100mm IS USM Macro Lens
$ 65.00
Ikelite Focus Gear for Canon EF 100mm IS USM Macro Lens
Ikelite SKU: 5509.71 | Helix SKU: 550971
Overview
For use with DL port systems. Refer to the appropriate lens port chart for complete compatibility information.
What's Included
- Zoom sleeve

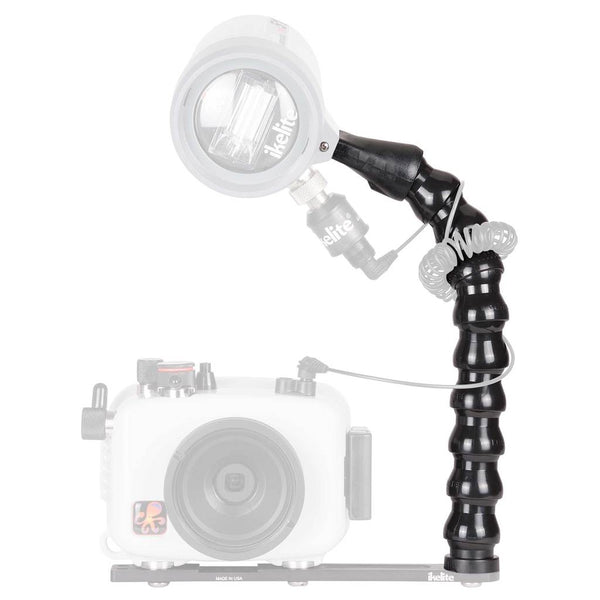

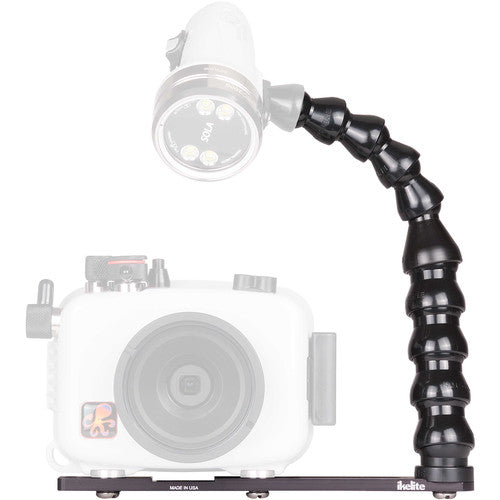

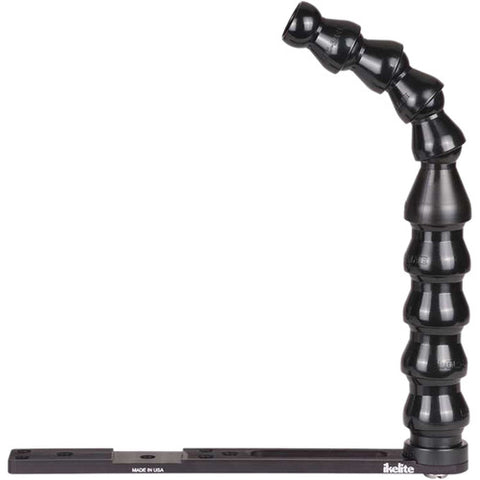

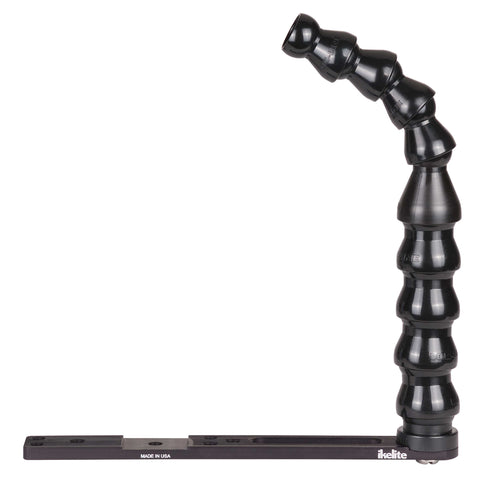

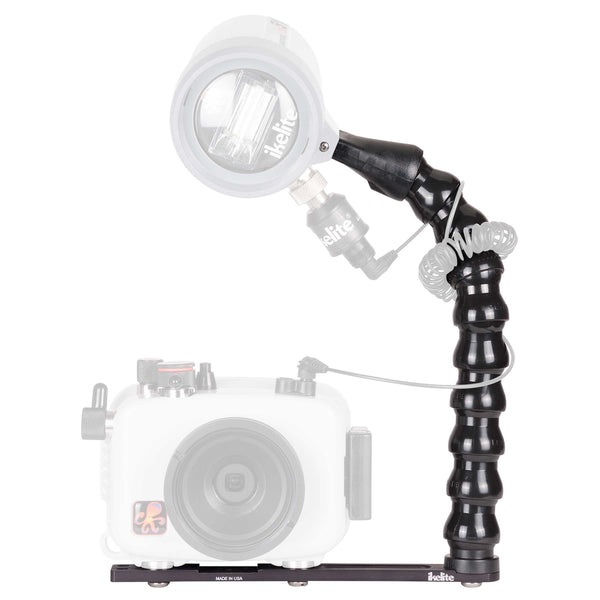

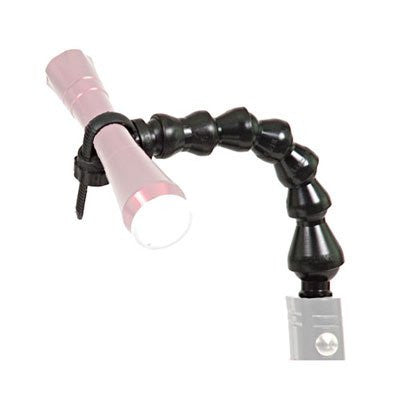

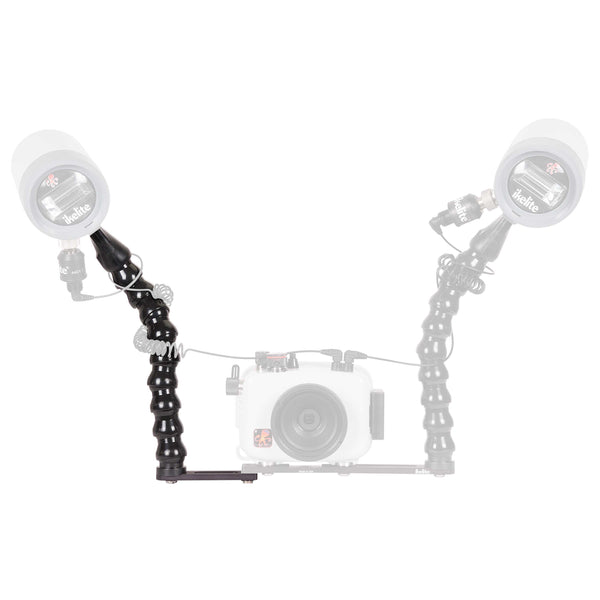

Ikelite Flex Strobe Arm For Action Tray
$ 39.95
Ikelite Flex Strobe Arm For Action Tray
Ikelite SKU: 4087.27 | Helix SKU: 408727
Overview
A lightweight and flexible arm for the Action Tray for compact digital housings. The 10" (254mm) long flex arm accepts a DS50 or DS51 strobe. Mounting of larger strobes is not supported. To mount a video light, use product # 4087.26 instead.
This arm can be attached to the top of a Quick Release Handle using the # 9573.31 mount.

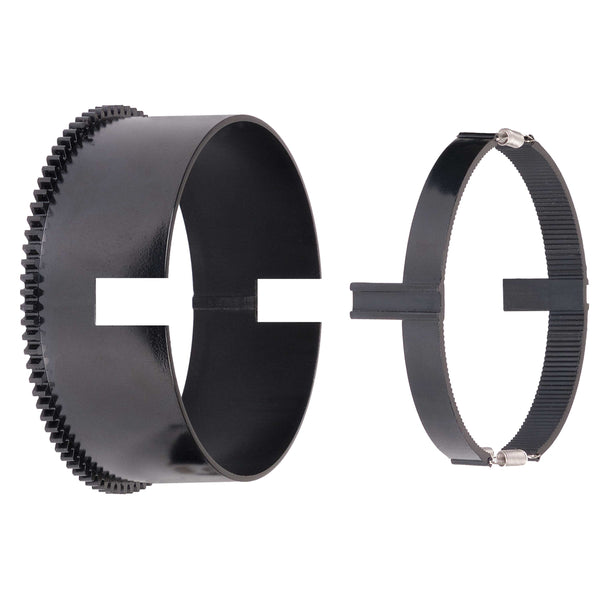

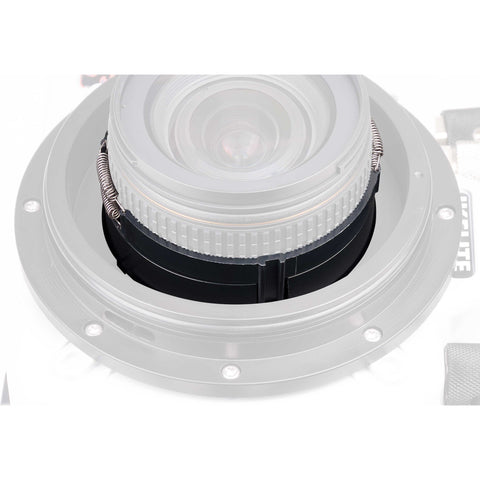

Ikelite Zoom Gear for Nikon 16-80mm Lens
$ 35.00 - Sold Out
Ikelite Zoom Gear for Nikon 16-80mm Lens
Ikelite SKU: 5509.16 | Helix SKU: 550916
Overview
For use with DL port systems. Refer to the appropriate lens port chart for complete compatibility information.
What's Included
- Zoom sleeve
Ikelite Flex Strobe Arm For Action Tray
$ 39.95 - Sold Out
Ikelite Flex Strobe Arm For Action Tray
Ikelite SKU: 4087.27 | Helix SKU: 408767
Ikelite Flex Light Arm For Action Tray
$ 39.95
Ikelite Flex Light Arm For Action Tray
Ikelite SKU: 4087.26 | Helix SKU: 408726
Overview
A lightweight and flexible arm for the Action Tray II for compact digital housings. The 8.5" (216mm) long flex arm accepts any light mount which is compatible with 1/2" Loc-line flex components, including the 1/2" flex mounts offered by Light & Motion. Mounting of strobes or larger video lights is not recommended. To mount a strobe, use the Flex DS51 Strobe Arm for Action Tray product # 4087.27 instead.
This arm can be attached to the top of a Quick Release Handle using the # 9573.31 mount.

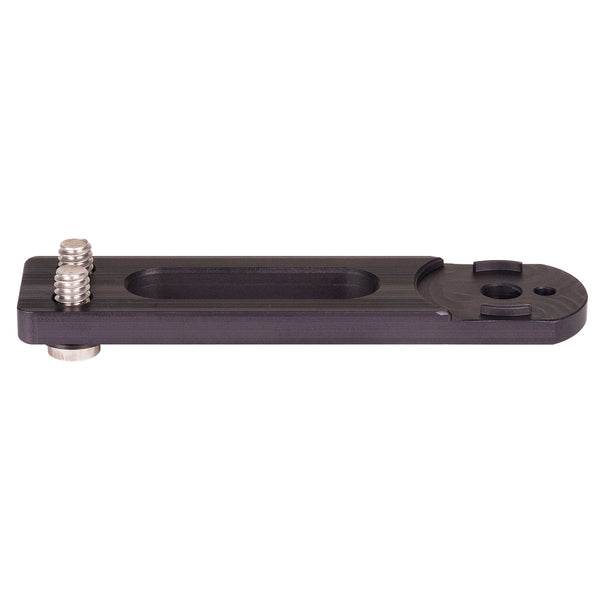

Ikelite Action Tray II Extension for Compact Housings
$ 20.00
Ikelite Action Tray II Extension for Compact Housings
Ikelite SKU: 2605.12 | Helix SKU: 2605.12
Overview
Extend the Action Tray II to make a dual tray. The Action Tray II is required to mount to a housing.
Specifications
- Hard anodized aluminum tray
- 5.6 oz (158g)
What's Included
- Extension
- Mounting hardware

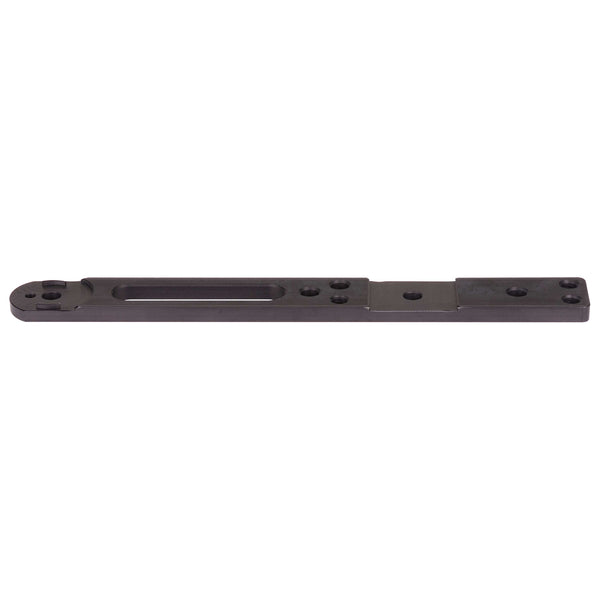

Ikelite Action Tray II for Compact Housings
$ 25.00
Ikelite Action Tray II for Compact Housings
Ikelite SKU: 2605.11 | Helix SKU: 260511
Overview
This super slim and streamlined tray is designed specifically for Ikelite Action and ULTRAcompact digital housings. Compared to our standard Tray with Quick Release Handle, the Action tray is lighter and brings the grip closer to the side of the housing for a more comfortable system.
Included is the necessary hardware to mount to Ikelite housings featuring female mounting points with 3" (76mm) spacing, as well as Action housings with central 1/4-20 mounting. The tray is machined specially to prevent rotation when attached to an Action housing.
Specifications
- Hard anodized aluminum tray
- 8.2 oz (233g)
What's Included
- Action Tray II
- Hardware Set for 1/4-20 Thread Housings # 9523.24
- Hardware Set for 12-24 Thread Housings # 9523.25

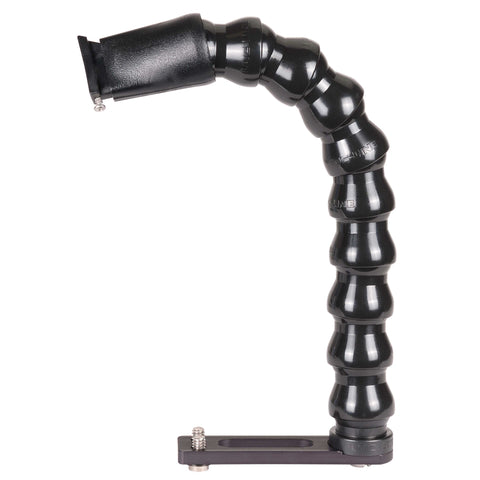

Ikelite Action Tray II Extension with DS51 Strobe Arm for ULTRAcompact Housings
$ 55.00
Ikelite Action Tray II Extension with DS51 Strobe Arm for ULTRAcompact Housings
Ikelite SKU: 2605.09 | Helix SKU: 260509
Overview
Add a second strobe to an Action Tray II. The Action Tray II is required to mount to a housing.
Specifications
- Hard anodized aluminum tray
-
6.7 oz (189g)
What's Included
- Action Tray II Extension # 2605.12
- Flex Strobe Arm for Action Tray # 4087.27

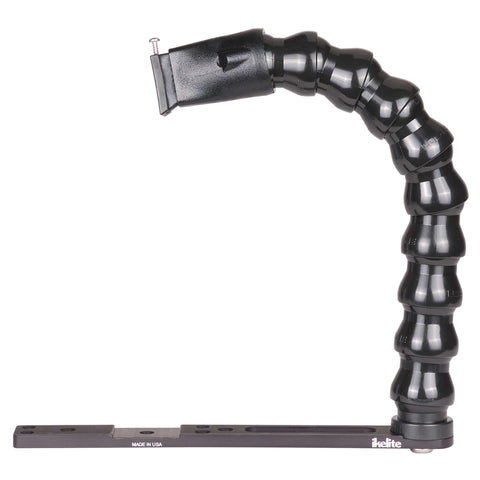

Ikelite Action Tray II with DS51 Strobe Arm for ULTRAcompact Housings
$ 65.00
Ikelite Action Tray II with DS51 Strobe Arm for ULTRAcompact Housings
Ikelite SKU: 2605.08 | Helix SKU: 260508
Overview
This super slim and streamlined tray is designed specifically for Ikelite Action and ULTRAcompact digital housings. Compared to our standard Tray with Quick Release Handle, the Action tray is lighter and brings the grip closer to the side of the housing for a more comfortable system.
The flex arm accepts any light mount which is compatible with 1/2" Loc-line flex components, including the 1/2" flex mounts offered by Light & Motion. Mounting of strobes or larger video lights is not recommended. To mount a strobe, use product # 2605.08 instead.
Add the Action Tray II Extension with Light Arm # 2605.07 for a dual handle tray.
Included is the necessary hardware to mount to Ikelite housings featuring female mounting points with 3" (76mm) spacing, as well as Action housings with central 1/4-20 mounting. The tray is machined specially to prevent rotation when attached to an Action housing.
This tray is not suitable for use with our housings for Mirrorless cameras or larger digital housings with stainless steel lidsnaps. Refer to the housing webpage for the correct tray recommendation.
Specifications
- Hard anodized aluminum tray
- 9.3 oz (263g)
What's Included
- Action Tray II # 2605.11
- Flex Strobe Arm for Action Tray # 4087.27
- Hardware Set for 1/4-20 Thread Housings # 9523.24
- Hardware Set for 12-24 Thread Housings # 9523.25

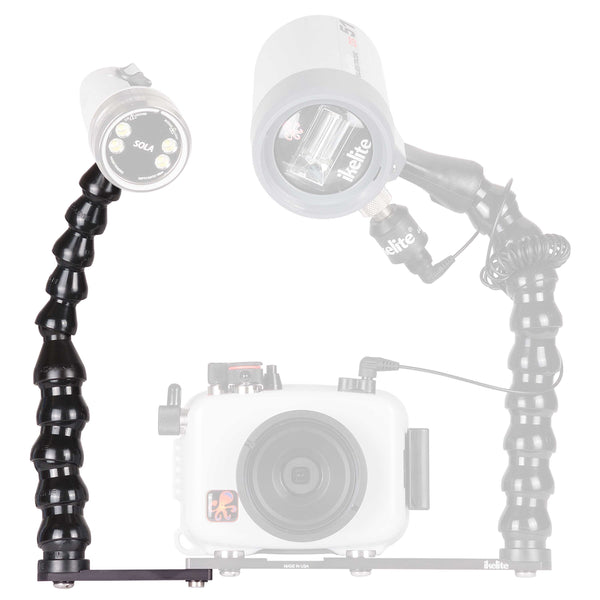

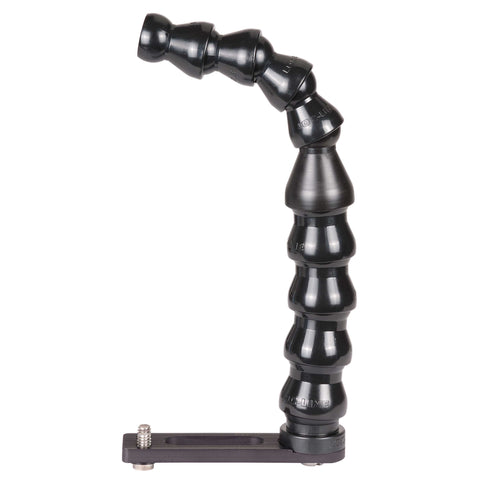

Ikelite Action Tray II Extension with Light Arm for ULTRAcompact Housings
$ 55.00
Ikelite Action Tray II Extension with Light Arm for ULTRAcompact Housings
Ikelite SKU: 2605.07 | Helix SKU: 260507
Overview
Add a light any Action Tray II. The Action Tray II is required to mount to a housing.
Specifications
- Hard anodized aluminum tray
- 5.6 oz (158g)
What's Included
- Action Tray II Extension # 2605.12
- Flex Light Arm for Action Tray # 4087.26

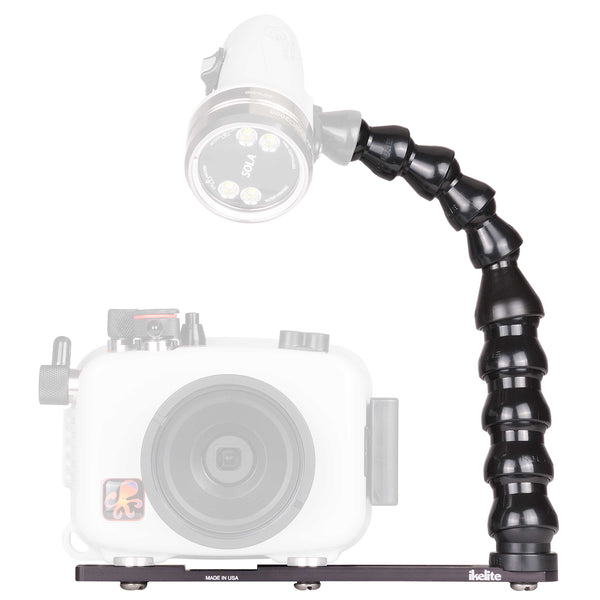

Ikelite Action Tray II with Light Arm for ULTRAcompact Housings
$ 65.00
Ikelite Action Tray II with Light Arm for ULTRAcompact Housings
Ikelite SKU: 2605.06 | Helix SKU: 260506
Overview
This super slim and streamlined tray is designed specifically for Ikelite Action and ULTRAcompact digital housings. Compared to our standard Tray with Quick Release Handle, the Action tray is lighter and brings the grip closer to the side of the housing for a more comfortable system.
The flex arm accepts any light mount which is compatible with 1/2" Loc-line flex components, including the 1/2" flex mounts offered by Light & Motion. Mounting of strobes or larger video lights is not recommended. To mount a strobe, use product # 2605.08 instead.
Add the Action Tray II Extension with Light Arm # 2605.07 for a dual handle tray.
Included is the necessary hardware to mount to Ikelite housings featuring female mounting points with 3" (76mm) spacing, as well as Action housings with central 1/4-20 mounting. The tray is machined specially to prevent rotation when attached to an Action housing.
This tray is not suitable for use with our housings for Mirrorless cameras or larger digital housings with stainless steel lidsnaps. Refer to the housing webpage for the correct tray recommendation.
Specifications
- Hard anodized aluminum tray
- 8.2 oz (233g)
What's Included
- Action Tray II # 2605.11
- Flex Light Arm for Action Tray # 4087.26
- Hardware Set for 1/4-20 Thread Housings # 9523.24
- Hardware Set for 12-24 Thread Housings # 9523.25

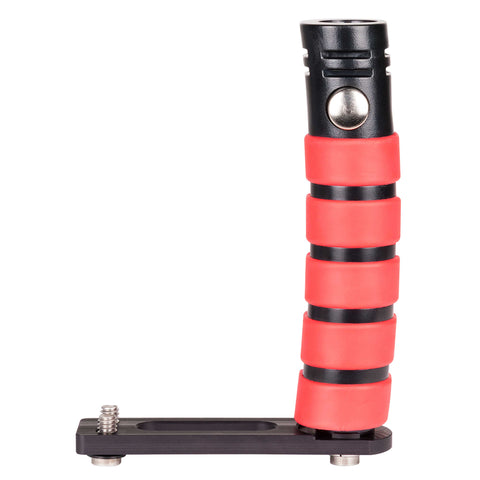

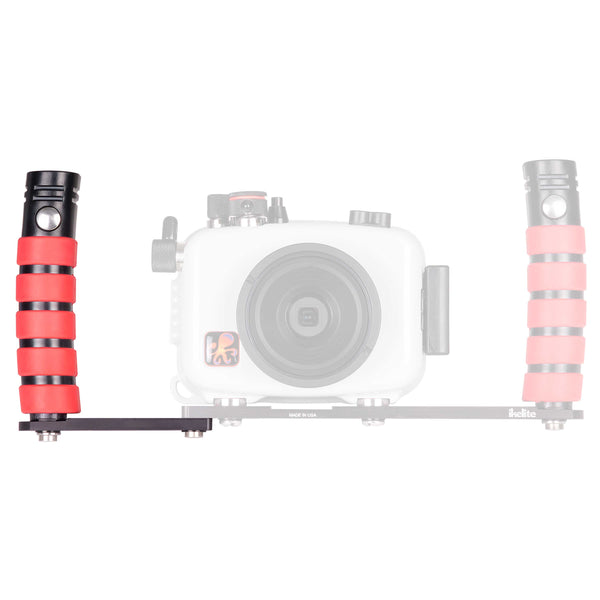

Ikelite Action Tray II Extension with Right Handle for Compact Housings
$ 55.00
Ikelite Action Tray II Extension with Right Handle for Compact Housings
Ikelite SKU: 2605.05 | Helix SKU: 260505
Overview
Extend the Action Tray II into a dual handle assembly. The Action Tray II is required to mount to a housing.
Specifications
- Hard anodized aluminum tray
- Aluminum, ABS and rubber handle
- 7.1 oz (200g)
What's Included
- Action Tray II Extension # 2605.12
- Left-Handle Quick Release Handle # 9531.4

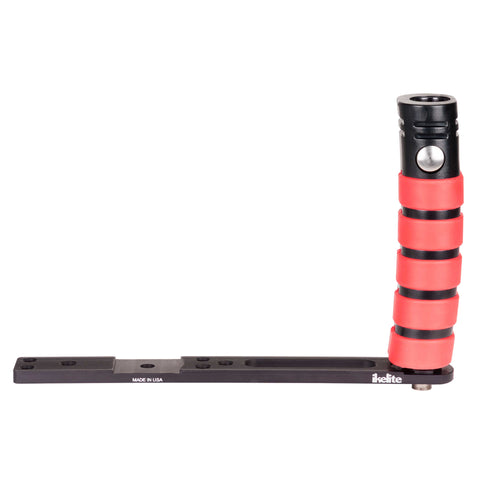

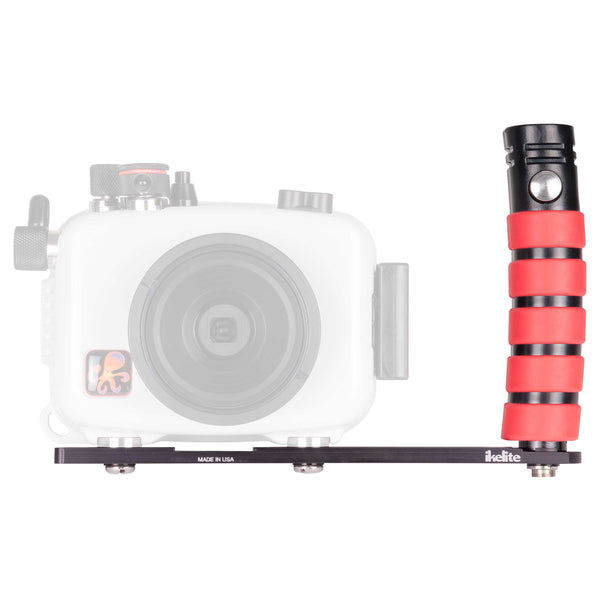

Ikelite Action Tray II with Left Handle for Compact Housings
$ 65.00
Ikelite Action Tray II with Left Handle for Compact Housings
Ikelite SKU: 2605.04 | Helix SKU: 260504
Overview
This super slim and streamlined tray is designed specifically for Ikelite Action, ULTRAcompact, and smaller compact digital housings. Compared to our standard Tray with Quick Release Handle, the Action tray is lighter and brings the handle closer to the side of the housing for a more comfortable grip.
The Ikelite Quick Release handle has become a favorite over the years for attachment and release of your lighting arm at the touch of a button. Accept no substitute. Add the Action Tray II Extension with Right Handle # 2605.05 for a dual handle tray.
Included is the necessary hardware to mount to Ikelite housings featuring female mounting points with 3" (76mm) spacing, as well as Action housings with central 1/4-20 mounting. The tray is machined specially to prevent rotation when attached to an Action housing.
This tray is not suitable for use with our housings for Mirrorless cameras or larger digital housings. Refer to the housing webpage for the correct tray recommendation.
Specifications
- Hard anodized aluminum tray
- Aluminum, ABS and rubber handle
- 10.6 oz (299g)
What's Included
- Action Tray II # 2605.11
- Left-Handle Quick Release Handle # 9531.3
- Hardware Set for 1/4-20 Thread Housings # 9523.24
- Hardware Set for 12-24 Thread Housings # 9523.25

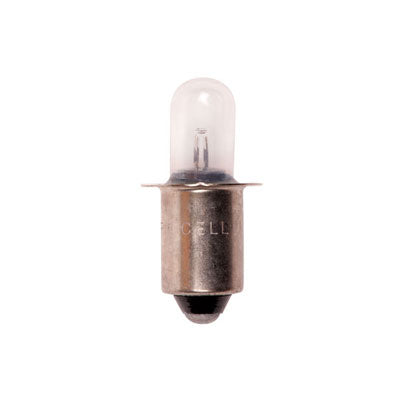

Ikelite Halogen Bulb for PCa, SS200
$ 19.95
Ikelite Halogen Bulb for PCa, SS200
Ikelite SKU: 0042.56 | Helix SKU: 004256
Overview
High-intensity halogen bulb with standard PR-style base. Usable with 6-cell PCa flashlights and Substrobe 200 modeling light.

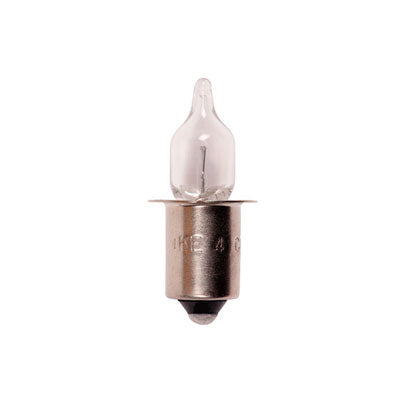

Ikelite Halogen Bulb for PC, PCm, RCD, Mini-C
$ 19.95
Ikelite Halogen Bulb for PC, PCm, RCD, Mini-C
Ikelite SKU: 0042.55 | Helix SKU: 004255
Overview
High-intensity halogen bulb with standard PR-style base. Usable with 4-cell PC, PCm, RCD, and Mini-C flashlights.
Ikelite Replacement O-Ring for DS-125/DS-160 & DLM Ports
$ 4.99
Ikelite Replacement O-Ring for DS-125/DS-160 & DLM Ports
Ikelite SKU: 0132.36 | Helix SKU: 013236
Overview
Compatible with:
- DLM port system mount and extensions
- DS161, DS160, DS125 battery packs
This o-ring should be lubricated when used with a lens port. Use only Ikelite silicone lubricant to prevent interaction with our plastics, swelling, or leakage.
This housing should not be lubricated when used on a battery pack.

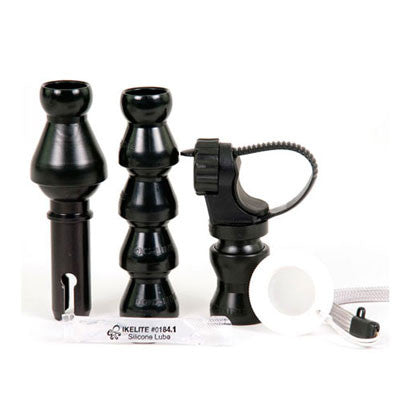

Ikelite Quick Release Kit for Gamma
$ 64.95 - Sold Out
Ikelite Quick Release Kit for Gamma - 18873
This mount kit is super lightweight, flexible, and includes everything you need to attach your Gamma to an Ikelite release handle for use as a focus assist or macro video light. Compatible Ikelite trays with release handle(s) are available to fit most Ikelite and non-Ikelite compact digital systems, sold separately. Gamma flashlight not included.

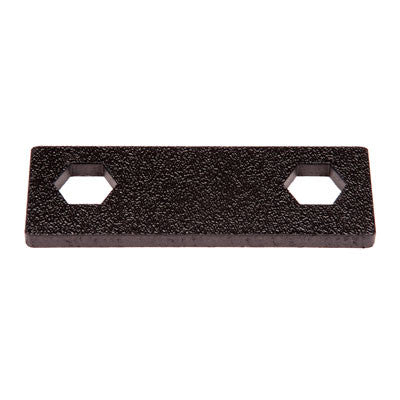

Ikelite Tray Spacer for Digital Housings
$ 5.00
Ikelite Tray Spacer for Digital Housings - 952309
Required when attaching 9523.61, 9523.62, 9523.63, or 9523.64 trays to Ikelite housings serial no. 37100 or less with male threaded mounting hardware (see photo) require the 9523.09 tray spacer, sold separately. Housings with female threaded mounting hardware do not require a separate spacer.

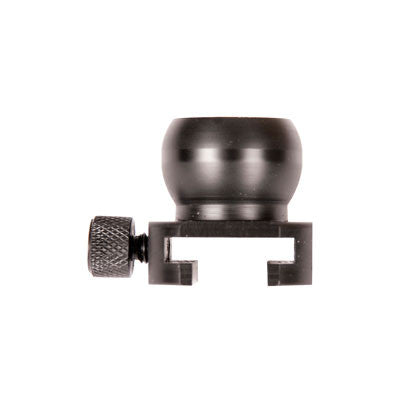

Ikelite Flex Mount for AF35 & Featherweight Tray
$ 20.00 - Sold Out
Ikelite Flex Mount for AF35 & Featherweight Tray - 95735
Mounts to the Featherweight Tray or AF35 strobe tray.

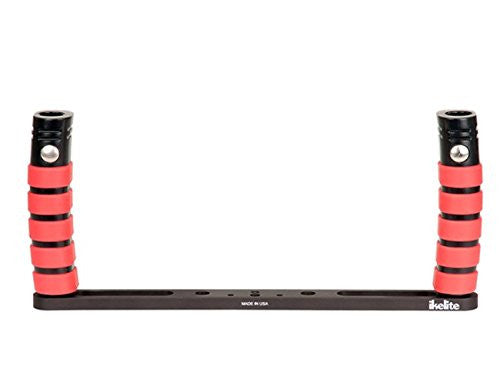

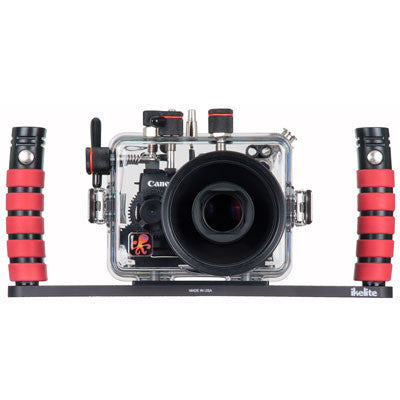

Ikelite Tray with Dual Release Handles
$ 150.00
Ikelite Tray with Dual Release Handles - 952364
Fits Ikelite Compact Digital and ULTRAcompact Digital Still housings and non-Ikelite housings for compact digital still cameras featuring a central 1/4-20 bottom mount.
Ikelite Dual AF35 Tray with T-Mount
$ 39.95 - Sold Out
Ikelite Dual AF35 Tray with T-Mount - 952345
A dual tray designed to combine the AF35 strobe kit with a secondary lighting accessory.

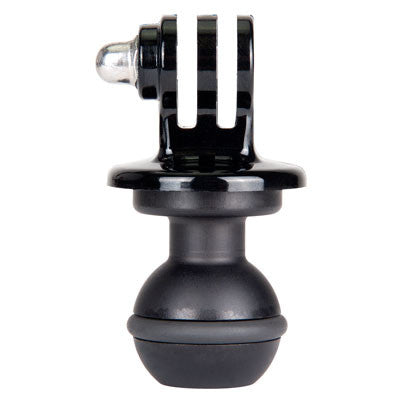

Ikelite 1-Inch Ball Mount for GoPro
$ 34.95
Ikelite 1-Inch Ball Mount for GoPro - 408173
Mounts to GoPro cameras for attachment to 1-inch diameter ball arms from Ikelite, TLC, Ultralight, Nauticam, and others. Requires a compatible 1-inch Ball Clamp, sold separately.
Ikelite 1-Inch Sliding Ball Mount Mark II
$ 34.95
Ikelite 1-Inch Sliding Ball Mount Mark II - 408172
Mounts to Ball Arm Mark II Extensions for the addition of a lightweight accessory in the middle of your arm system. A three-pronged wing nut provides adjustability to slide your accessory up and down the length of the arm to reposition lighting easily during your dive. Requires a Ball Arm Mark II Extension, sold separately.

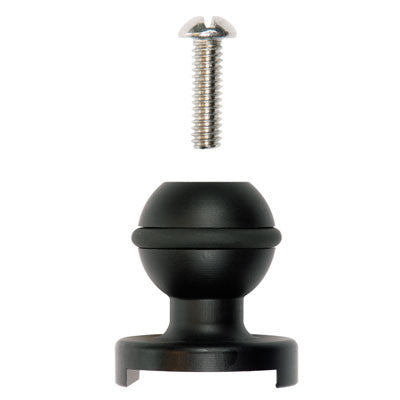

Ikelite 1-Inch Ball Mount Mark II for DSLR Top Mount
$ 24.95
Ikelite 1-Inch Ball Mount Mark II for DSLR Top Mount - 40816
Mounts to the top of an Ikelite DSLR featuring 1/4-20 top mount for attachment to 1 in diameter ball arms from Ikelite, TLC, Ultralight, Nauticam and others. Requires a compatible 1-inch Ball Clamp, sold separately.
Ikelite 1-Inch Ball Mount Mark II for DS51, DS125, DS160, DS161 Strobes
$ 24.95
Ikelite 1-Inch Ball Mount Mark II for DS51, DS125, DS160, DS161 Strobes - 40814
Mounts to DS50, DS51, DS125, DS160 or DS161 strobes for attachment to 1-inch diameter ball arms from Ikelite, TLC, Ultralight, Nauticam, and others. Requires a compatible 1-inch Ball Clamp, sold separately.

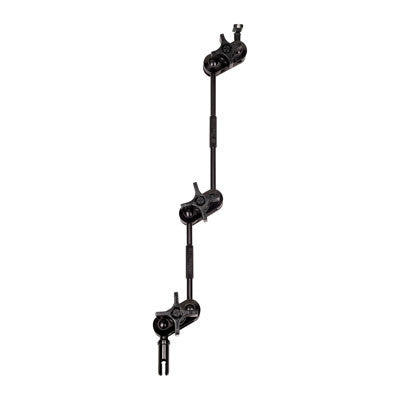

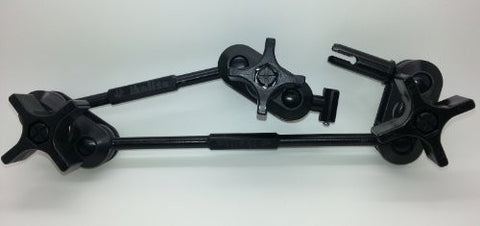

Ikelite Double 1.25 in Ball Arm for DS Strobes
$ 284.95
Ikelite Double 1.25 in Ball Arm for DS Strobes - 408527
This complete arm kit is everything you need to position your strobe for any shot - wide angle to macro! Kit features our largest, 1.25 in (3.2 cm) diameter, balls for maximum holding power. Nituff anodized aluminum components are lightweight and corrosion-resistant. Includes ball at release handle, one 6 in (15 cm) length extension, one 9 in (22 cm) length extension, three clamps, and mount for Ikelite DS50, DS51, DS125, DS160 or DS161 strobe.

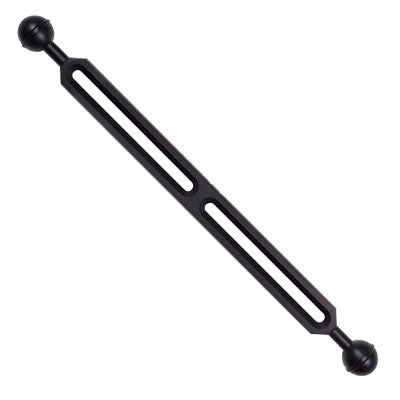

Ikelite 1-Inch Ball Arm Extension Mark II 12-Inch Length
$ 64.95 - Sold Out
Ikelite 1-Inch Ball Arm Extension Mark II 12-Inch Length - 408112
A rigid anodized aluminum arm with balls at each end to extend your strobe or video light arm. Add an extension and clamp to your existing strobe arm for reduced backscatter and more creative lighting effects when shooting with a wide angle lens.
The slotted design allows for the attachment of a lightweight accessory in the middle of the extension. When used with our Sliding Ball Mount, the additional accessory is able to move up and down the length of the arm for quick repositioning during a dive.

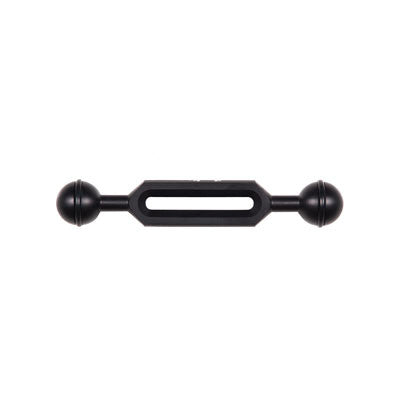

Ikelite 1-Inch Ball Arm Extension Mark II 5-Inch Length
$ 49.95 - Sold Out
Ikelite 1-Inch Ball Arm Extension Mark II 5-Inch Length - 408105
A rigid anodized aluminum arm with balls at each end to extend your strobe or video light arm. Add an extension and clamp to your existing strobe arm for reduced backscatter and more creative lighting effects when shooting with a wide angle lens.
The slotted design allows for the attachment of a lightweight accessory in the middle of the extension. When used with our Sliding Ball Mount, the additional accessory is able to move up and down the length of the arm for quick repositioning during a dive.

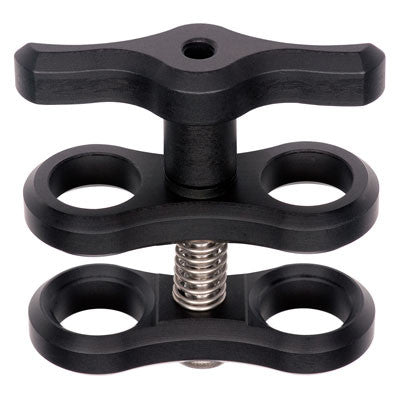

Ikelite 1-inch Standard Ball Clamp Mark II
$ 44.95 - Sold Out
Ikelite 1-inch Standard Ball Clamp Mark II - 40812
The Standard Clamp attaches two (2) 1-inch diameter balls. Thicker plates provide the perfect combination of strength and range of motion. Plates are spring-loaded for easy assembly and breakdown of your arm system. A hard anodized aluminum wing nut allows for easy one-handed operation and will withstand years of use.

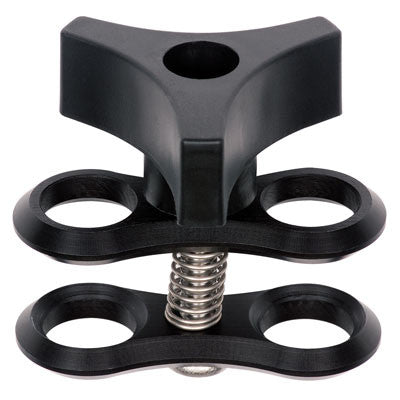

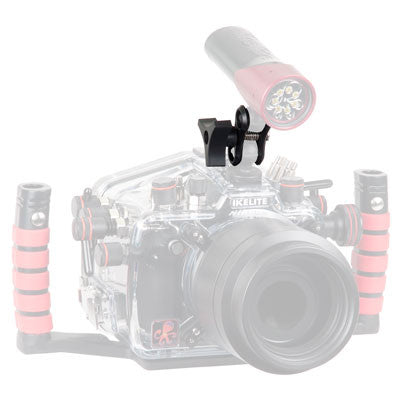

Ikelite 1-inch Ball Clamp Mark II for Lightweight Accessories
$ 34.95 - Sold Out
Ikelite 1-inch Ball Clamp Mark II for Lightweight Accessories - 408121
The Accessory Clamp attaches two (2) 1-inch diameter balls. In travel, every ounce counts so we reduced plate thickness and chose a light, three prong wing nut to reduce weight as compared to our Standard Clamp. The result is a lighter, maneuverable clamp with the perfect amount of holding power for small lights and accessories which weigh less than one pound. Plates are spring-loaded for easy assembly and breakdown of your arm system.

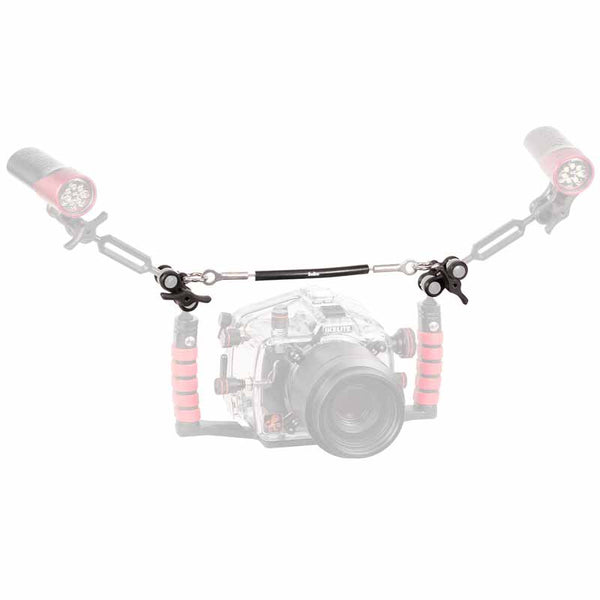

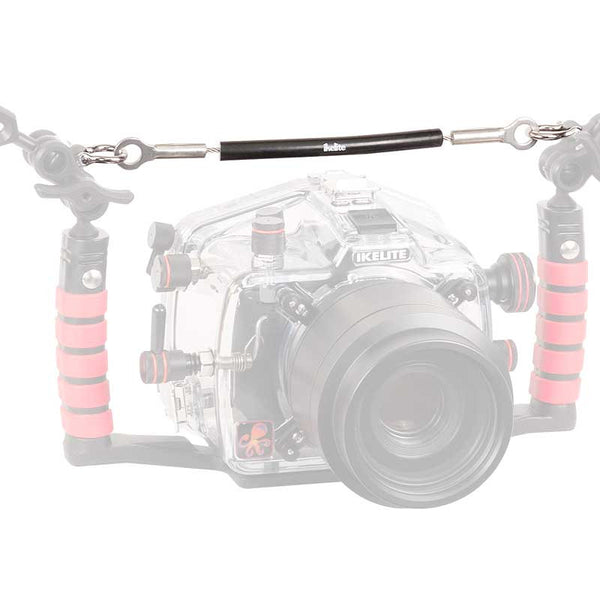

Ikelite Cable Grip for Housings
$ 89.95
Ikelite Cable Grip for Housings - 408007

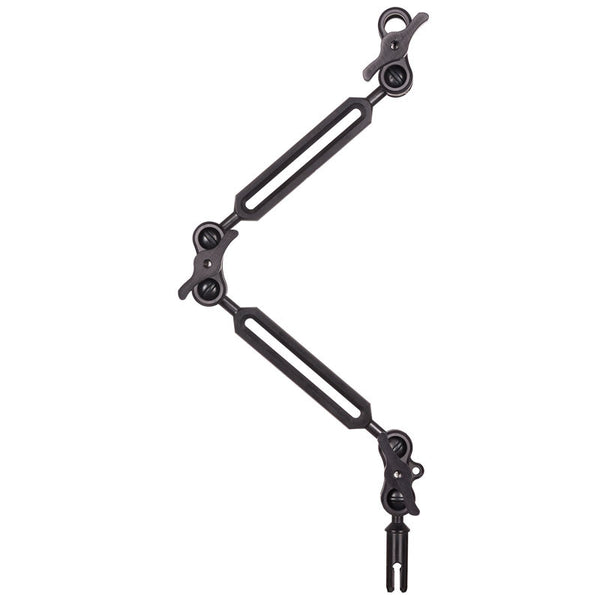

Ikelite Wide Angle Ball Arm for Quick Release Handle
$ 275.00
Ikelite Wide Angle Ball Arm for Quick Release Handle - 408006
Ikelite Cable Grip with Auxiliary Clamps
$ 189.95
Ikelite Cable Grip with Auxiliary Clamps - 408004
Ikelite Aluminum Top Handle for Digital & DSLR
$ 289.95
Ikelite Aluminum Top Handle for Digital & DSLR - 408003

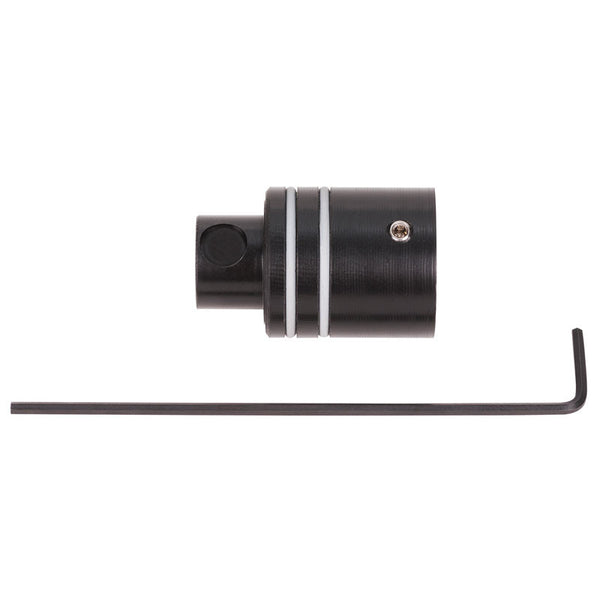

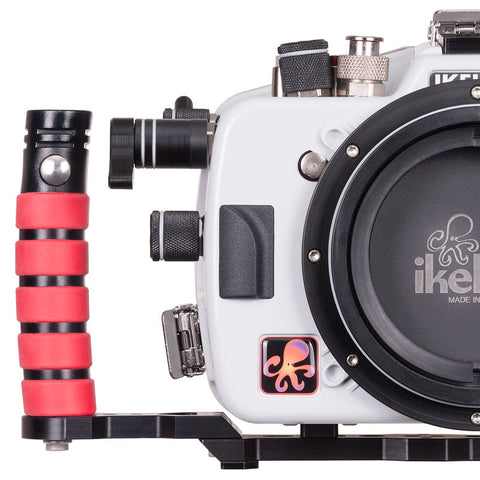

Ikelite Shutter Trigger Extension
$ 14.95
Ikelite Shutter Trigger Extension - IK407793

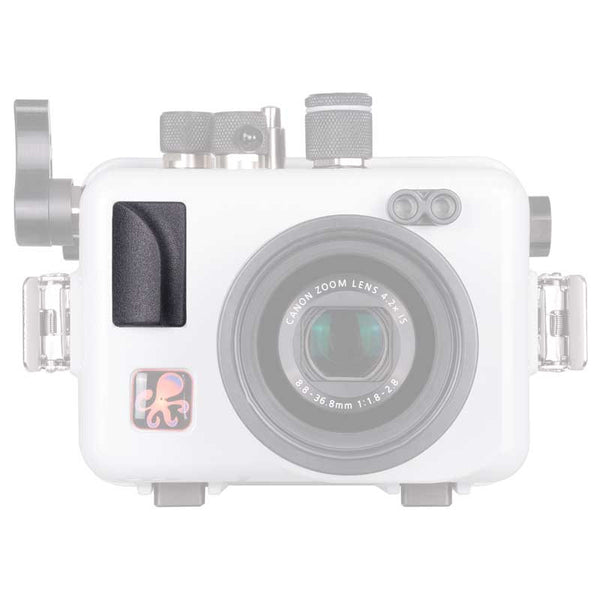

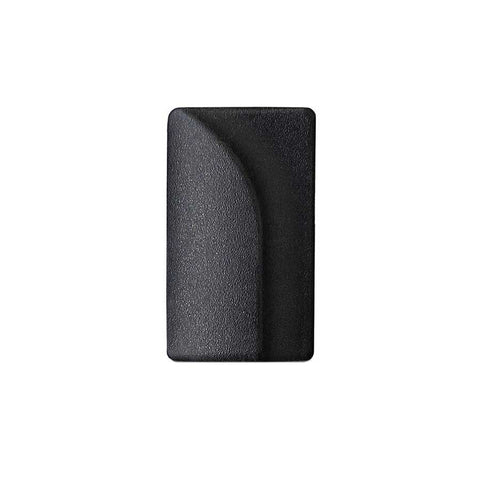

Ikelite Silicone Hand Grip for Housings
$ 9.95
Ikelite Silicone Hand Grip for Housings - IK407792

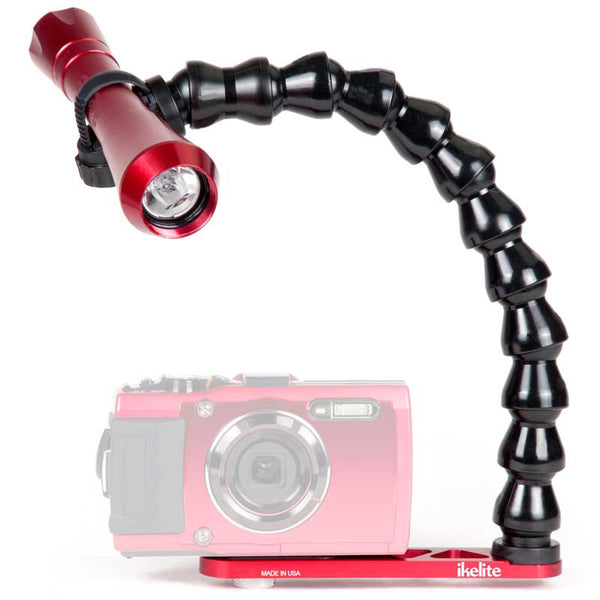

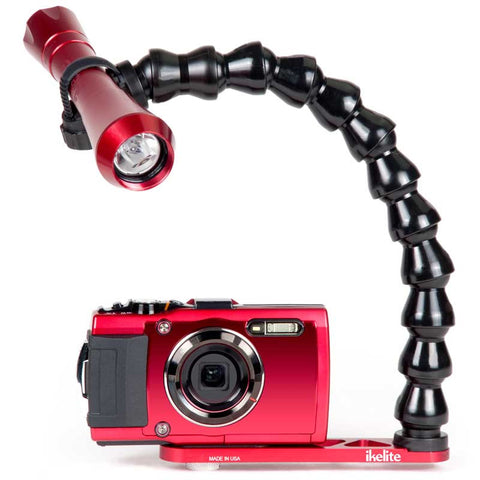

Ikelite Tough Tray with Gamma Light
$ 179.00 - Sold Out
Ikelite Tough Tray with Gamma Light - 26053

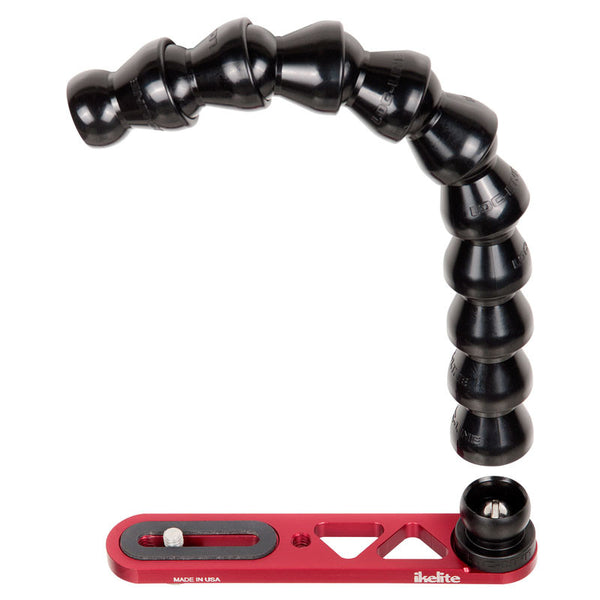

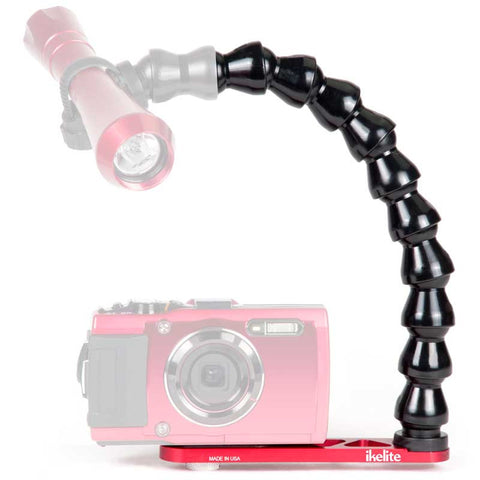

Ikelite Tough Tray for Waterproof Cameras
$ 79.00 - Sold Out
Ikelite Tough Tray for Waterproof Cameras - 260501

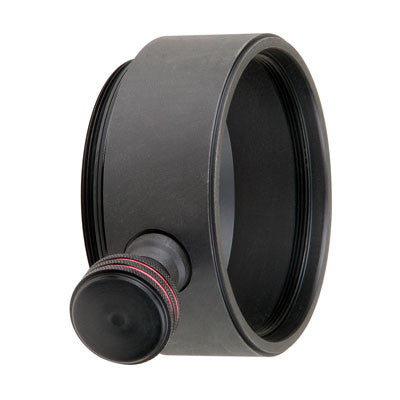

Ikelite Modular 1.75 Inch Extension Ring with Focus
$ 295.00 - Sold Out
Ikelite Modular 1.75 Inch Extension Ring with Focus - 551075

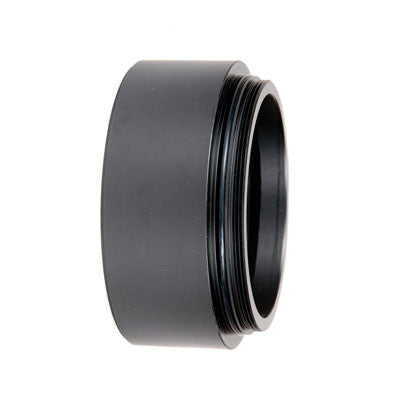

Ikelite Modular 1.75 Inch Extension Ring
$ 224.95 - Sold Out
