Underwater Photography

The ever-growing selection of lighting accessories on the market demands a mounting system that's highly expandable, flexible, and streamlined. In answer to this need, the second generation of our 1-inch ball arm system provides improved ergonomics and versatility in a lighter, sleeker package. Possible combinations are virtually endless, with opportunities to mount an additional lightweight accessory almost anywhere along the length of an arm.

The 1-inch Ball Arm System Mark II features 1-inch ball components with a groove and o-ring to prevent slippage for improved holding power with less force. While underwater, clamps may be finger-tightened to keep lighting in place yet allow repositioning without loosening the clamp.

All parts are hard coat type III anodized for a long lasting, scratch resistant finish.

Works with 1-inch ball arms from Ikelite, TLC, Ultralight, Nauticam, and others.

Old and new Ikelite 1-inch balls and clamps are interchangeable. For the best performance, we recommend combining like components within a single clamp (two balls with grooves, or two balls without grooves). Ball components with an o-ring groove should have an o-ring installed at all times.

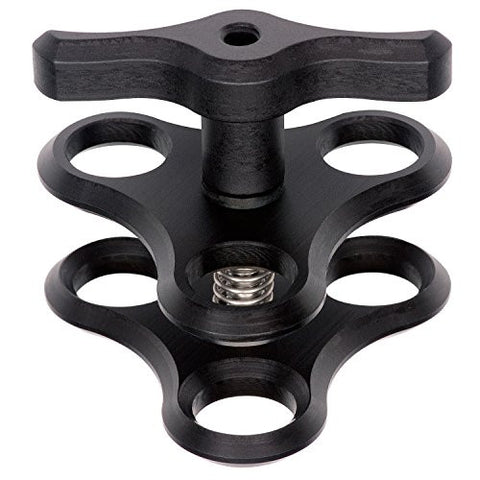

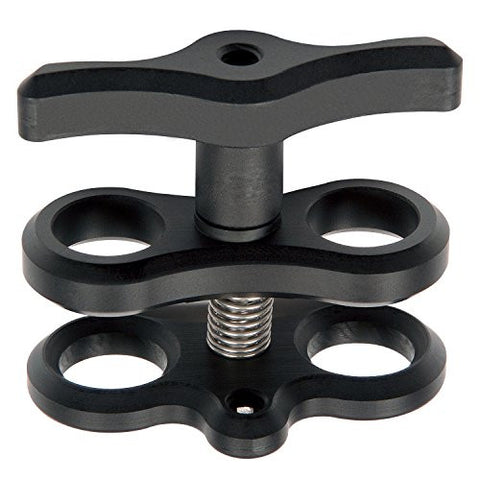

• Clamp with wingnut

• Accepts 1 in (25.4 mm) diameter ball
• Aluminum clamp plates and wing nut
• Type III hard coat anodizing

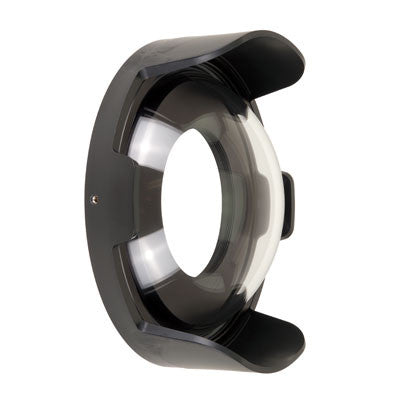

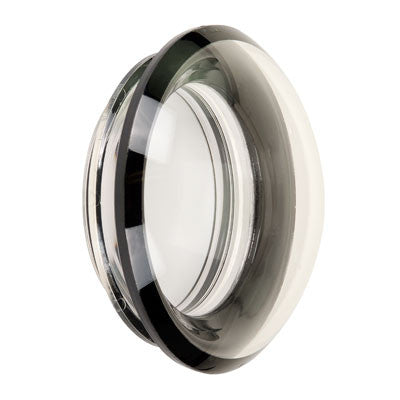

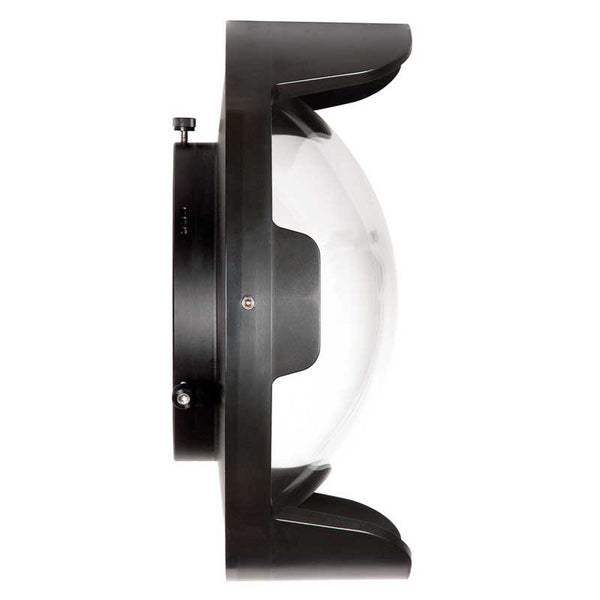

An 8” diameter dome made of optical grade acrylic. Comparable quality to glass yet significantly lighter and easier to handle, especially at the surface of the water. Not compatible with external filters.

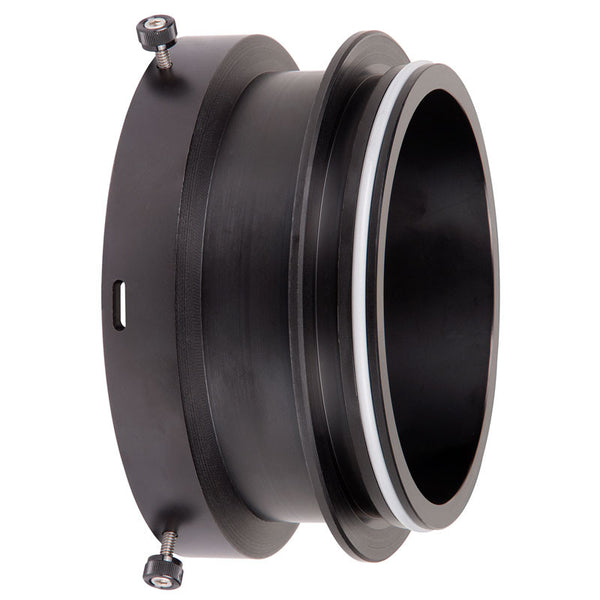

This port features a longer base which is required with certain very large diameter zoom lenses. Refer to the DL System Port Chart for compatibility.

View the DL System Port Chart

• Dome port

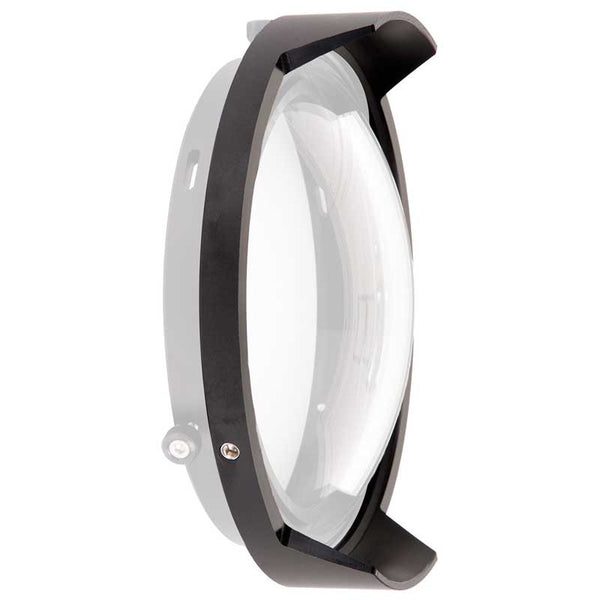

• Dome shade # 5510.04

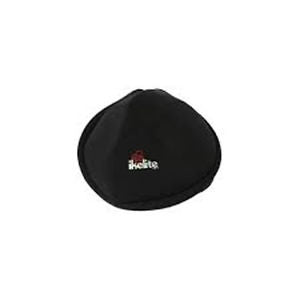

• Neoprene front cover # 0200.82
• Neoprene rear cover # 0200.83
• Securing thumbscrews # 9249.7

• Optical grade acrylic dome
• Acetyl body
• Weight 2.3lb (1kg)
• 9.25" diameter x 4" (235 x 102mm)

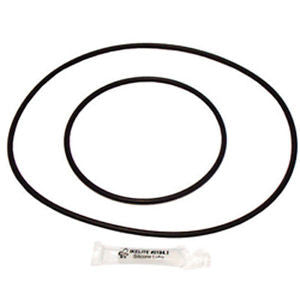

• O-ring # 0132.45
• Silicone lubricant # 0184.2
• Securing thumbscrews (set of 3) # 9249.7
• Neoprene front cover # 0200.82
• Neoprene rear cover # 0200.83
• NOVUS polish kit # 6201.32

• Shutter-release button
• Power switch
• Movie-record button
• Sub-command dial
• Exposure compensation (+/-) button
• ISO button
• MODE button
• WB button
• Metering button
• BKT button
• Lens release button
• AF-ON button
• Main command dial
• Multi selector
• Info button
• Live view selector
• Lv button
• Playback button
• MENU button
• OK button

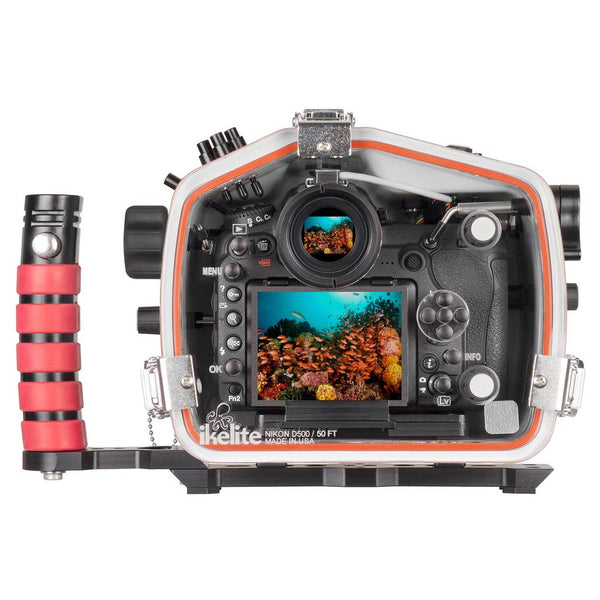

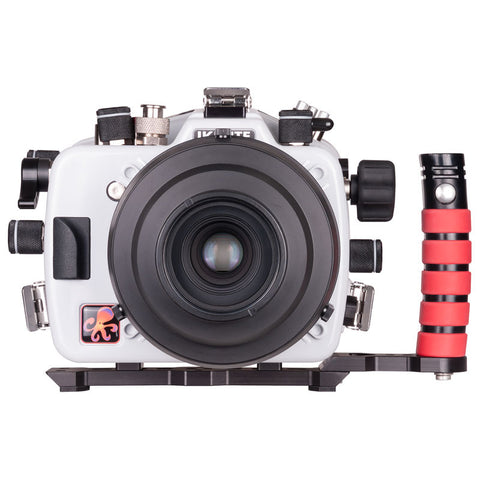

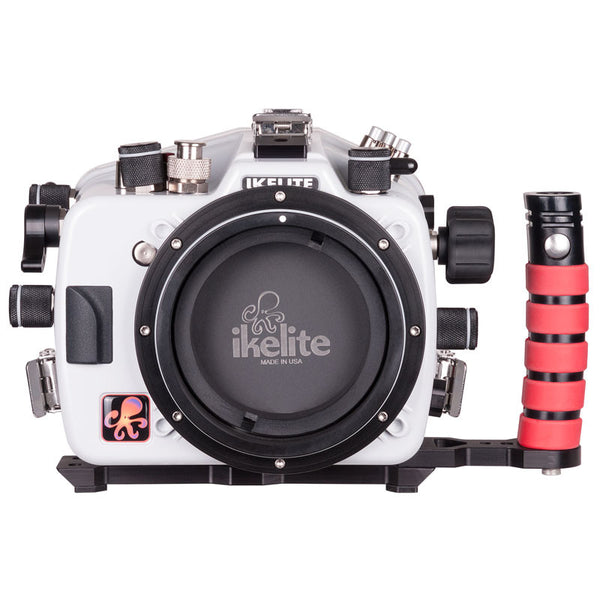

• Underwater Housing with 50ft Back
• Base with Left-Hand Quick Release Handle # 4077.67
• Waterproof Bulkhead Cap # 9104.5
• Silicone Lubricant 1cc Tube # 0184.2

• Right-Hand Quick Release Handle with Extension # 4077.02
• Straight Magnified Viewfinder # 6890

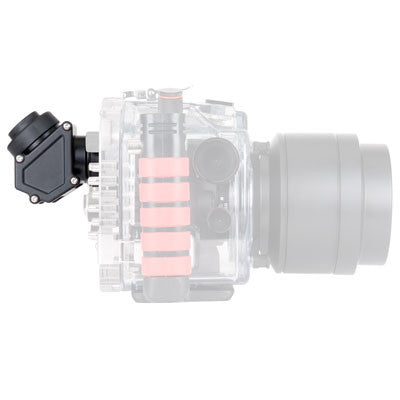

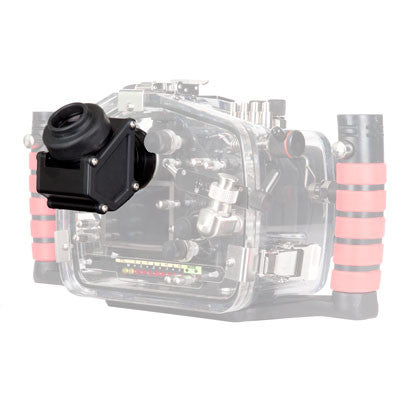

• 45° Magnified Viewfinder Type 1 # 6891.1

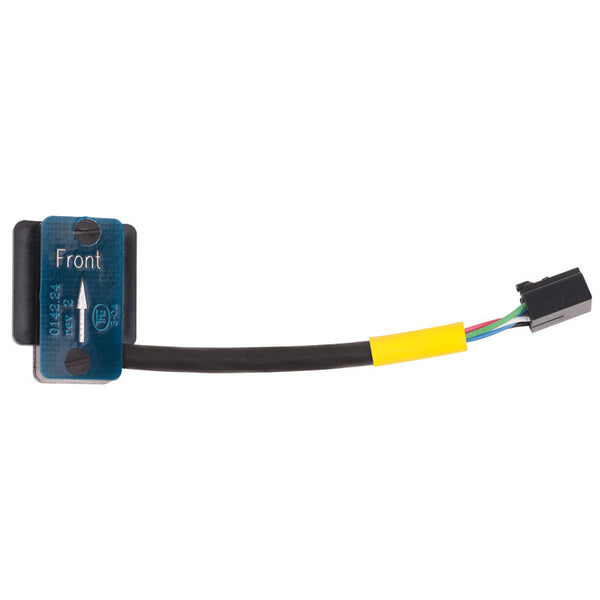

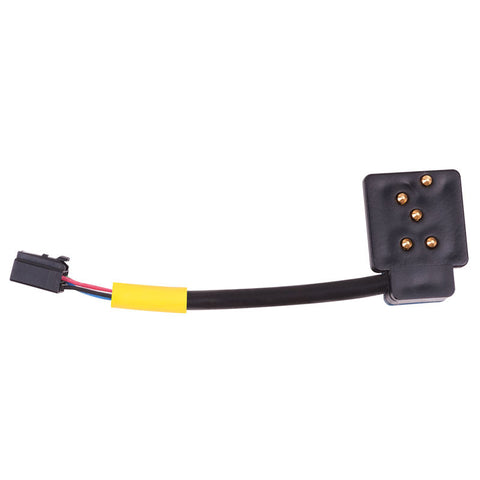

• TTL Hotshoe # 46061 + TTL Converter # 4301.3

• 50' (15m) depth rating
• 1/4-20 thread base mounts with 3.5" spacing
• Near neutral buoyancy in fresh water
• Actual buoyancy varies depending on choice of lens and port
• Weight 4.5 lb (2 kg) not including tray + handles
• Dimensions 9.2 x 7.1 x 6.3" (234 x 180 x 160 mm) including projections

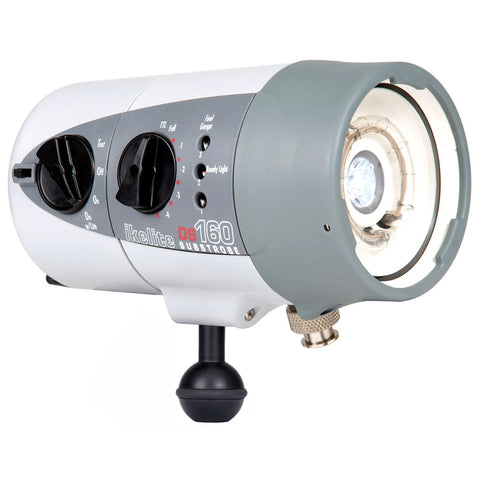

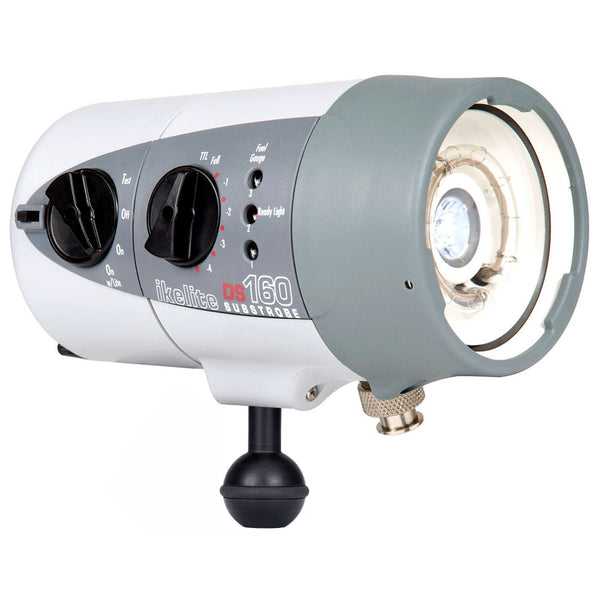

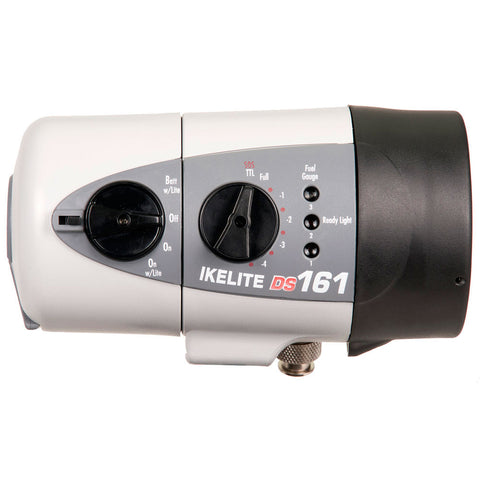

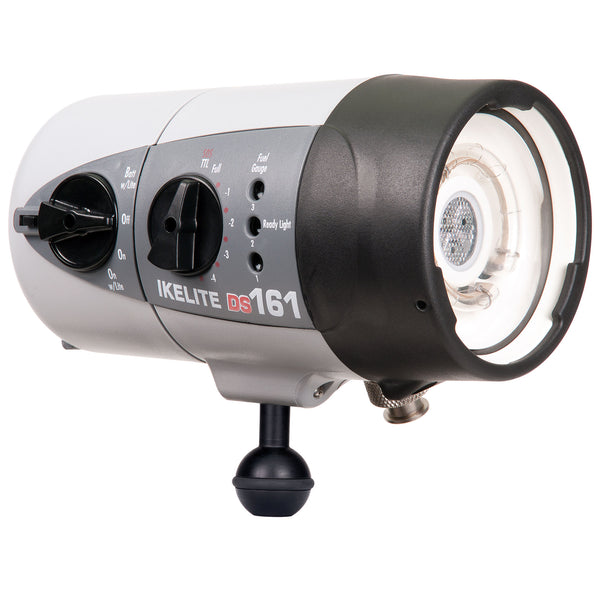

Extra large flash capacitors and a dedicated rechargeable battery pack provide twice the speed and energy of the next smaller strobe.

The DS160 series strobes are specifically designed for underwater use to provide the most colorful and natural wide angle lighting on the market. A professional grade round xenon flash tube and powder coated reflector produce perfectly a soft, stunningly warm 4800K light.

Optional accessories for corded, fiber optic, or remote triggering.

The built-in modeling light automatically turns off and back on when taking a still photo to avoid over exposure.

Our famous quick-release toggle system eliminates attaches the battery pack with ease and confidence. A high capacity rechargeable NiMH battery pack provides longevity and rapid firing that no current set of AA batteries can provide.

• DS160 Strobe Front # 4060.2
• Rechargeable NiMH Battery Pack # 4066.5
• Battery Pack Cover # 0591.4
• Smart Charger for NiMH with USA Plug # 0083.92 (or 0083.93 Euro Plug / 0083.94 UK Plug / 0083.95 Australian Plug)
• Diffuser # 0591.3
• 1" Ball Mount # 4081.4
• Waterproof bulkhead cap # 9104.5
• Silicone lubricant 1cc tube # 0184.1
• 2 year limited warranty on DS161 strobe front
• 1 year limited warranty on NiMH battery pack + charger

• Depth rating: 100m (328')
• Max energy: 160 Ws
• Manual control increments: (10) 1/2 f-stop
• Modeling light: 205 lm LED
• Color temperature: 4800K
• Guide number at 1m / ISO 100: 24
• Flashes per charge: 225 full
• Recycle time: 1.5 seconds at full power
• Electrical sync connection: Ikelite ICS 5-pin bulkhead
• Battery: 7.2V 3300mAh NiMH
• Dimensions: 3.75 length x 7" diameter (96 x 179 mm)
• Weight with battery: 2.7 lb (1243 g)
• Buoyancy: Slightly negative in salt water

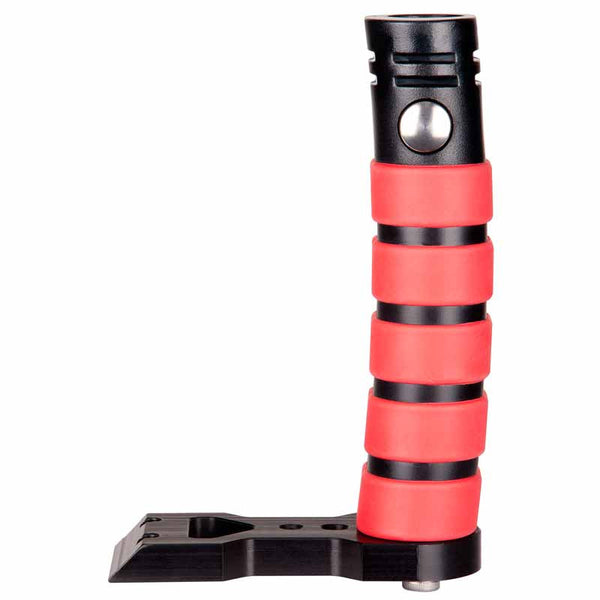

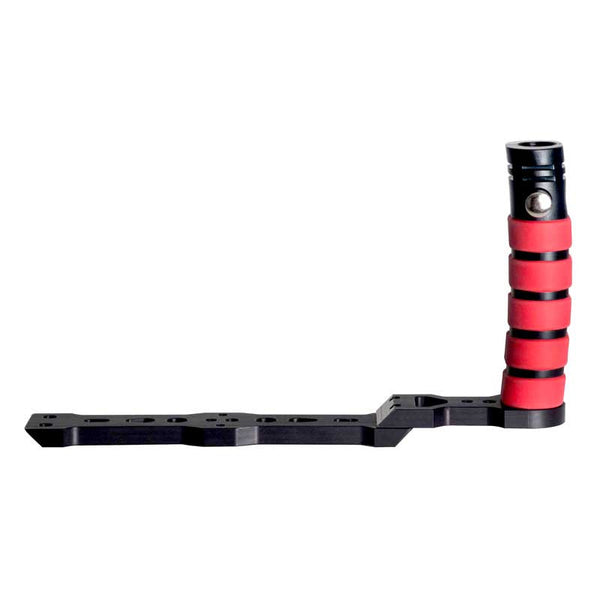

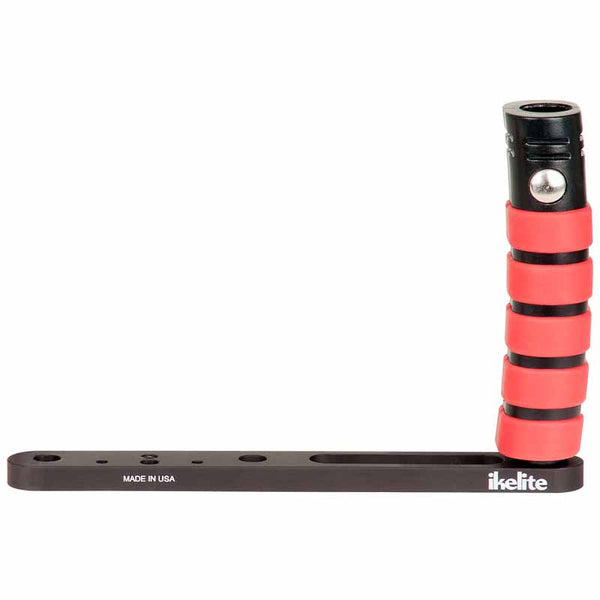

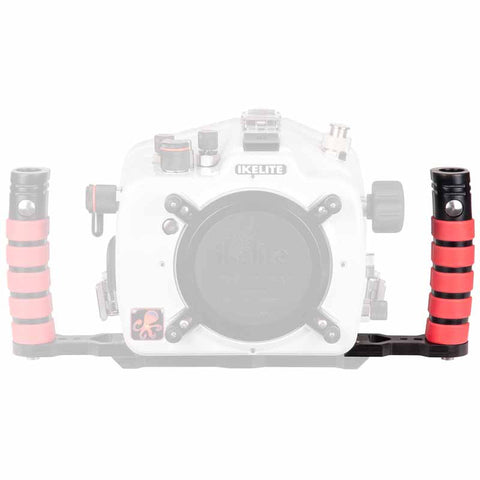

The Ikelite Quick Release Handle allows for easy attachment and removal of arm components at the touch of a button for added convenience above and below water. The unique curved design and soft-touch rubber over-molding for a comfortable grip for large or small hands. Placement of release handle does not interfere with opening and closing the housing. Accepts Right-Hand Quick Release Handle with Extension, sold separately.

• Left-hand quick release handle with extension
• Base
• Mounting hardware

• 10.75 x 6.75 x 2.5" (273 x 171 x 64 mm)
• 11.3 oz (319 g)

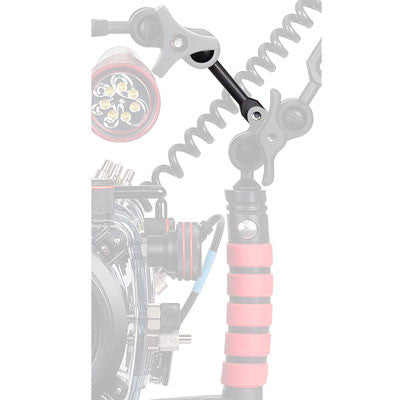

The ever-growing selection of lighting accessories on the market demands a mounting system that's highly expandable, flexible, and streamlined. In answer to this need, the second generation of our 1-inch ball arm system provides improved ergonomics and versatility in a lighter, sleeker package. Possible combinations are virtually endless, with opportunities to mount an additional lightweight accessory almost anywhere along the length of an arm.

The 1-inch Ball Arm System Mark II features 1-inch ball components with a groove and o-ring to prevent slippage for improved holding power with less force. While underwater, clamps may be finger-tightened to keep lighting in place yet allow repositioning without loosening the clamp.

All parts are hard coat type III anodized for a long lasting, scratch resistant finish.

Works with 1-inch ball arms from Ikelite, TLC, Ultralight, Nauticam, and others.

Old and new Ikelite 1-inch balls and clamps are interchangeable. For the best performance, we recommend combining like components within a single clamp (two balls with grooves, or two balls without grooves). Ball components with an o-ring groove should have an o-ring installed at all times.

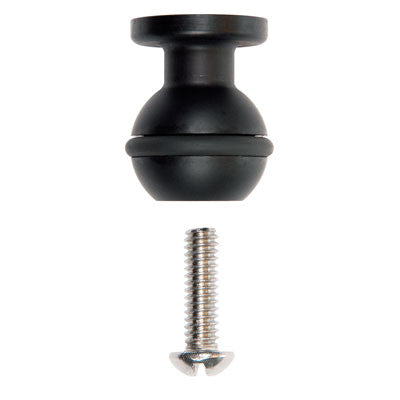

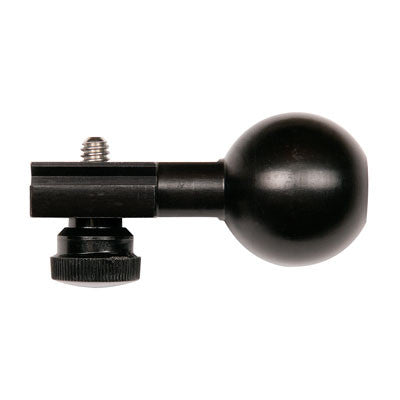

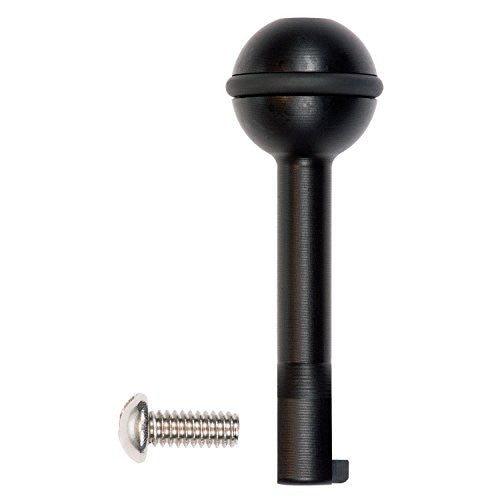

This ball mount replaces our Product Number 9571.25.

• Ball mount with o-ring
• Stainless steel screw

• 1 in (25.4 mm) diameter ball
• Type III hard coat anodized aluminum

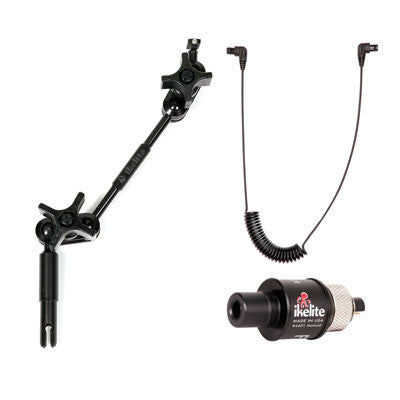

Built of NiTuff anodized aluminum with 1 inch (2.5 cm) diameter ball components, the ball socket arm system represents the standard for the underwater lighting industry. Includes ball at release handle, two clamps, one 6 in (15cm) extension, two clamps, and mount for Ikelite DS50, DS51, DS125, DS160 or DS161 strobe. Overall extended length of the arm is approximately 14 in (34.5 cm). Additional extensions and clamps can always be added to get your strobe way out there!

Each Ikelite DS strobe requires its own fiber optic adapter and coiled cord for triggering. Purchase a second kit to add a second strobe to your system.

• Ball socket arm
• Fiber optic coiled cord
• Fiber optic adapter for DS strobes
• Universal optical ports kit
• Silicone lubricant 1cc tube
