Features

New 30.4 Megapixel full-frame CMOS sensor for versatile shooting in nearly any light, with ISO range 100-32000; expandable up to 50-102400 (equivalent ISO).

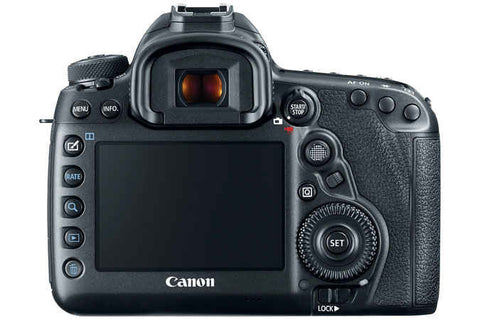

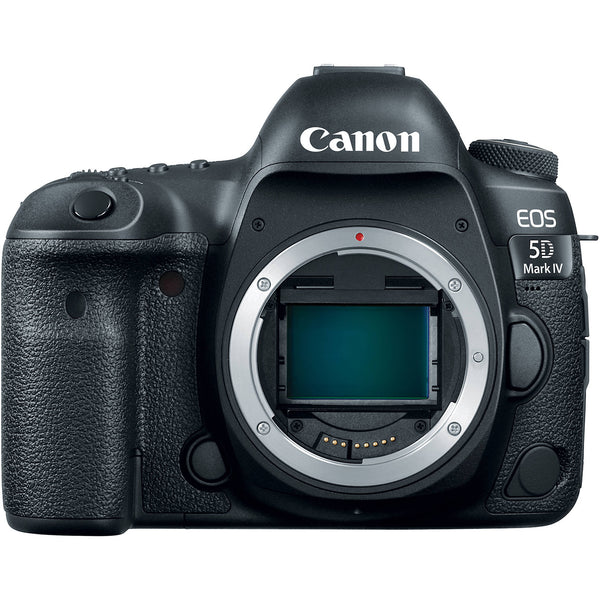

The EOS 5D Mark IV camera boasts a full-frame, high-speed CMOS sensor that's ideal for a broad range of applications with its remarkable high-resolution abilities. Measuring approximately 36.0mm x 24.0mm, the same size and ratio as a 35mm film frame, it records 30.4 effective Megapixels at normal ISOs of up to 32000. It also captures incredible still and 4K video clips suitable for significant post-processing, retouching and cropping.

ISO 100-32000 (expandable to 50-102400)

Featuring an ISO range of 100-32000 (expandable to 50-102400), the EOS 5D Mark IV camera is incredibly well-suited for low-light photography. Its sensor has an improved S/N ratio plus an improved noise-processing algorithm to help deliver high-level light sensitivity along with its high resolution, with virtually no compromise in image quality. Whether working in a dimly lit auditorium, trying to capture the action at night, photographing at the fastest possible shutter speed or simply suppressing camera shake blur, the EOS 5D Mark IV has an extended ISO range that contributes to its ability to excel in nearly every situation it faces.

4K Motion JPEG video (DCI cinema-type 4096 x 2160) at 30p or 24p; in-camera still frame grab* of 4K 8.8-Megapixel images; multiple video options include Full HD up to 60p, and HD up to 120p.

The EOS 5D Mark IV is a remarkably capable video camera. Thanks to its impressive CMOS sensor and its high-speed DIGIC 6+ Image Processor, it can transition from taking still photographs to shooting videos in a near instant, capturing Digital Cinema (DCI) standard 4K (Motion JPEG) videos of 4096 x 2160 pixels at up to 30 or 24 fps. Adding to its versatility, it also supports the 4K broadcasting standard of 3840 x 2160 pixels with slight trimming on the left and right sides.

Superb Dual Pixel CMOS AF for responsive and smooth AF during video or Live View shooting; LCD monitor has full touch-screen interface, including selection of AF area.

Adding to its powerful and portable design, the EOS 5D Mark IV camera utilizes Canon's smooth, fast and intelligent Dual Pixel CMOS AF. Featuring two photodiodes per pixel and each pixel capable of phase-difference detection autofocus, the CMOS sensor can deliver fast and accurate AF throughout approximately 80% of the image plane. Able to detect shifts in movement at the pixel level, Dual Pixel CMOS AF enables continuous automatic AF and AF tracking that enhances overall camera operation for sharp still images and smooth, accurate focus transitions in movies.

Specifications

Type
Digital, AF/AE single-lens reflex, camera

Recording Media

1. CF card

• Type I drive (Type II and Microdrive non-supported.)
• UDMA Mode 7 supported.
• CFast cards cannot be used.
• SD, SDHC and SDXC memory cards

• UHS-I supported.
• MultiMediaCards (MMC) cannot be used (results in error).
• UHS-II not supported. If a UHS-II card is used, it may be slower than a UHS-I (depends on the card specifications).

Compatible Lenses
Canon EF Lenses (excluding EF-S and EF-M lenses)

Lens Mount
Canon EF mount

Image Sensor

Type
CMOS sensor (Compatible with Dual Pixel CMOS AF)

Pixels
Approx. 30.4 megapixels

Pixel Unit
Approx. 5.36 µm square

Total Pixels
Approx. 31.7 megapixels

Aspect Ratio
3:2 (Horizontal: Vertical)

Color Filter System
RGB primary color filters

Low Pass Filter
Installed in front of the image sensor, non-detachable

Dust Deletion Feature

1. Self Cleaning Sensor Unit

• Removes dust adhering to the low-pass filter.
• Self-cleaning can be done automatically when the power is turned on/ off.
• After the cleaning is performed, the camera will automatically restart (Power OFF to ON).
• When you use Multi Shot Noise Reduction, "Clean now" cannot be selected.
• Dust Delete Data acquisition and appending

• The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
• The dust coordinate data appended to the image is used by the EOS software DPP to automatically erase the dust spots.
• Manual cleaning

Recording System

Recording Format
Complies with Design rule for Camera File System 2.0 and EXIF 2.3

Image Format
Still Image: JPEG, RAW (14 bit Canon Original)
Video: MOV (4K video: Motion JPEG; Full HD and HD Movie: MPEG4 AVC/H.264*; Audio: Linear PCM), MP4 (Movie: MPEG4 AVC/H.264*; Audio: AAC)
* Variable (averaged) bit rate.

File Size
3:2 Aspect Ratio
Large/RAW: Approx. 30.1 Megapixels (6720 x 4480)
mRAW: Approx. 16.9 Megapixels (5040 x 3360)
Medium: Approx. 13.3 Megapixels (4464 x 2976)
Small 1/sRAW: Approx. 7.5 Megapixels (3360 x 2240)
Small 2: Approx. 2.5 Megapixels (1920 x 1280)
Small 3: Approx. 0.35 Megapixels (720 x 480)

4:3 Aspect Ratio
Large/RAW: Approx. 26.7 Megapixels (5952 x 4480)*
mRAW: Approx. 15.1 Megapixels (4480 x 3360)
Medium: Approx. 11.8 Megapixels (3968 x 2976)
Small 1/sRAW: Approx. 6.7 Megapixels (2976 x 2240)*
Small 2: Approx. 2.2 Megapixels (1696 x 1280)*
Small 3: Approx. 0.31 Megapixels (640 x 480)

16:9 Aspect Ratio
Large/RAW: Approx. 25.4 Megapixels (6720 x 3776)*
mRAW: Approx. 14.3 Megapixels (5040 x 2836)*
Medium: Approx. 11.2 Megapixels (4464 x 2512)*
Small 1/sRAW: Approx. 6.3 Megapixels (3360 x 1888)*
Small 2: Approx. 2.1 Megapixels (1920 x 1080)
Small 3: Approx. 0.29 Megapixels (720 x 408)*

1:1 Aspect Ratio
Large/RAW: Approx. 20.1 Megapixels (4480 x 4480)
mRAW: Approx. 11.3 Megapixels (3360 x 3360)
Medium: Approx. 8.9 Megapixels (2976 x 2976)
Small 1/sRAW: Approx. 5.0 Megapixels (2240 x 2240)
Small 2: Approx. 1.6 Megapixels (1280 x 1280)
Small 3: Approx. 0.23 Megapixels (480 x 480)

Values for Recording Pixels are rounded off to the nearest 10,000th or 1,000th.
JPEG images are generated in the set aspect ratio.
RAW images are generated in [3:2], and the set aspect ratio is appended.
* Inexact proportion.

Recording Functions

1. Standard

• Select manually to record on either the CF card or SD card.
• Auto switch card

• When the current card becomes full, the camera switches to the other card automatically.
• Record separately

• The CF card and SD card record the same image at a different image recording quality (Large/Fine, Large/Normal, Medium/Fine, Medium/Normal, Small 1/Fine, Small 1/Normal, Small 2, Small 3, RAW, mRAW, sRAW).
• Record to multiple

• Both the CF card and SD card record the same image at the same image recording quality (Also applies to RAW+JPEG, mRAW+JPEG, and sRAW+JPEG).

Backup Recording
N/A

File Numbering
The following three types of file numbers can be set:

1. Continuous numbering

• The numbering of captured images continues even after you replace the card.
• Auto reset

• When you replace the card, the numbering will be reset to start from 0001. If the new card already contains images, the numbering will continue from the last recorded image in the card.
• Manual reset

• Resets the file number to 0001, and creates a new folder automatically.

RAW + JPEG Simultaneous Recording
Possible

Color Space
sRGB, Adobe RGB

Picture Style

1. Auto
2. Standard
3. Portrait
4. Landscape
5. Fine Detail
6. Neutral
7. Faithful
8. Monochrome
9. User Defined 1-3
   1. In Scene Intelligent Auto, [Auto] will be set automatically.
   2. [Standard] is the default setting for [User Def. 1-3].

White Balance

Settings
Auto (Ambience priority/White priority), Daylight, Shade, Cloudy*, Tungsten Light, White Fluorescent Light, Flash, Custom (Custom WB), Color Temperature
* Effective also in twilight and sunset.

Auto White Balance
Option between ambience priority and white priority settings

Color Temperature Compensation
Blue/amber bias: ±9 levels
Magenta/green bias: ±9 levels


Corrected in reference to the current WB mode's color temperature.

Color Temperature Information Transmission
Provided

Viewfinder

Type
Eye-level SLR (with fixed pentaprism)

Coverage
Approx. 100% vertically and horizontally (at approx. 21mm eyepoint)

Magnification
Approx. 0.71

Eye Point
Approx. 21mm (at -1m^-1 from the eyepiece lens center)

Dioptric Adjustment Correction
Adjustable from approx. -3.0 to +1.0 m^-1 (dpt)

Focusing Screen
Fixed

Mirror
Quick-return half mirror

Viewfinder Information
Displayed with transparent liquid crystal

• AF point information
• AF operation*
• Area AF frame
• Metering mode*
• Spot metering circle
• Image quality*
• Electronic level (dedicated indicator)*
• Digital Lens Optimizer*
• Battery (remaining capacity)*
• Dual Pixel RAW setting (shooting)*
• Shooting mode*
• Flicker detection*
• White balance*
• Warning symbol
• Drive mode*
• AF status indicator

You can select whether or not to display the asterisked items [Show/hide in viewfinder].

Depth Of Field Preview
Enabled with depth of field preview button

Autofocus

Type
TTL secondary image-forming phase-difference detection system with AF-dedicated sensor

AF Points

AF Points (Max. 61 points)

The number of AF points, cross-type AF points and dual cross-type AF points vary depending on the lens used.

AF Working Range

Conditions: One-Shot AF, at 73°F/23°C, ISO 100

Focusing Modes

1. Autofocus
1. One-Shot AF
2. Predictive AI Servo AF (AI Servo AF III)
3. AI Focus AF

• Switches between One-Shot AF and AI Servo AF automatically.
• Manual focus

AF Point Selection

1. Single-point Spot AF (Manual selection)
2. Single-point AF (Manual selection)
   • The checkmark cannot be removed from this option.
3. AF point expansion (Manual selection, 4 points: Up, down, left and right)
4. AF point expansion (Manual selection, surrounding 8 points)
5. Zone AF (Manual zone selection)
   • All AF points divided into nine focusing zones.
6. Large Zone AF (Manual zone selection)
   • All AF points divided into three focusing zones.
7. AF point Auto selection AF

Selected AF Point Display

Selected AF Point Display

Active AF Point Indicator
Displayed in viewfinder with transparent LCD and on LCD panel

AF Assist Beam

1. Enable
2. Disable
3. IR AF assist beam only

Exposure Control

Metering Modes
150,000-pixel RGB+IR metering sensor

• 153,600 effective pixels (480 x 320)

EOS iSA System with 252 zone (18 x 14) metering

1. Evaluative metering (linked to all AF points)
2. Partial metering (center, approx. 6.1% of viewfinder)
3. Spot metering (center, approx. 1.3% of viewfinder)
   • AF point-linked spot metering not provided.
4. Center-weighted average metering

Metering Range
EV 0-20 (at 73°F / 23°C , ISO 100)

Exposure Control Systems
(1) Scene Intelligent Auto

(2) Program AE (shiftable)

(3) Shutter-priority AE (Safety shift possible)

(4) Aperture-priority AE (Safety shift possible)

(5) Manual exposure

(6) Bulb

(7) Custom shooting mode C1, C2, C3

ISO Speed Range

Manual setting (During viewfinder shooting)

• For [Highlight tone priority], the settable ISO speed range will be ISO 200–32000.
• ISO speed safety shift possible with Custom Function.

Auto setting (During viewfinder shooting)

^*1 It depends on [Minimum] and [Maximum] of [ISO speed settings] [Range for stills].
^*2 If fill-in flash will cause overexposure, ISO 100 or a higher ISO will be set (except for M and B).
^*3 In the <d> mode, if you use bounce flash with an external Speedlite, ISO 400–1600 will be set automatically.

Exposure Compensation
Manual: ±5 stops in 1/3 or 1/2-stop increments

AEB: ±3 stops in 1/3 or 1/2-stop increments

* Indicated up to ±3 stops on the LCD panel and in the viewfinder. To set exposure compensation exceeding ±3 stops, you can use Quick Control.

* Live View shooting, exposure compensation can be set up to ±3 stops.

AE Lock
(1) Auto AE lock

·In the One-Shot AF mode with evaluative metering, AE lock takes effect when focus is achieved.

(2) Manual AE lock

·With AE lock button. (AE lock is updated each time you press the button.) Enabled in all metering modes.

Shutter

Type
Vertical-travel, mechanical, focal-plane shutter with all speeds electronically-controlled

Shutter Speeds
1/8000 to 30 sec., bulb (Total shutter speed range. Available range varies by shooting mode.)
X-sync at 1/200 sec.

Shutter Release
Soft-touch electromagnetic release

Self Timer
10-sec. self-timer, 2-sec. self-timer

Shutter Lag Time

Shutter Lag Time

External Speedlite

EOS Dedicated Speedlite
E-TTL II autoflash with all EX Series Speedlites

Zooming to Match Focal Length
Provided

Flash Exposure Compensation
±3 stops in 1/3- or 1/2-stop increments

FE Lock
Provided

External Flash Settings

1. External flash control
   • Flash firing
   • E-TTL II Flash metering
   • Flash sync. speed in Av mode
   • Flash mode
   • Radio transmission wireless flash shooting
   • Optical transmission wireless flash shooting
   • Flash ratio control
   • Zoom
   • Sync setting
   • Flash exposure compensation
   • FEB
   • Clear settings
2. Flash Custom Function setting

PC Terminal
Provided (no polarity)

Drive System

Drive Modes

1. Single shooting
2. High-speed continuous shooting
3. Low-speed continuous shooting
4. Silent single shooting
5. Silent continuous shooting
6. 10-sec. self-timer/remote control
7. 2-sec. self-timer/remote control

Continuous Shooting Speed
High-speed continuous shooting: Max. approx. 7.0 fps

• With 1/500 sec. or faster shutter speed, maximum aperture (varies depending on the lens), with a fully-charged Battery Pack LP-E6N, and at room temperature (73°F/23°C).
• The maximum continuous shooting speed will decrease under the following shooting conditions:
• [Anti-flicker shoot.: Enable] results in maximum approx. 6.6 fps.
• [Dual Pixel RAW: Enable] and RAW or RAW+JPEG image quality.
• [Digital Lens Optimizer: Enable] will greatly decrease the continuous shooting speed.
• The continuous shooting speed may become slower depending on the shutter speed, aperture, subject conditions, brightness, lens, flash use, temperature, battery type, remaining battery level, etc.
• With the AF mode set to One-Shot AF and the Image Stabilizer turned off when using the following lenses: EF 300mm f/4 L IS USM, EF 28-135mm f/3.5-5.6 IS USM, EF 75-300mm f/4-5.6 IS USM, EF 100-400mm f/4.5-5.6L IS USM.
• In AI Servo AF operation, the continuous shooting speed may become slower depending on the subject and the lens used.
• If you use Battery Pack LP-E6 and shoot in low temperatures (battery temperature is low), the high-speed continuous shooting speed may become slower.
• The continuous shooting speed may become slower if the remaining battery level is low or if you shoot under low-light conditions.

Low-speed continuous shooting: Max. approx. 3.0 fps
Silent continuous shooting: Max. approx. 3.0 fps

Live View Functions

Shooting Modes
Still photo and video recording

Focusing

1. Dual Pixel CMOS AF
   • Dual Pixel CMOS AF is possible with all EF lenses.
2. Manual focus
   • Magnify the image by 5x or 10x and focus manually.

Metering Modes

1. Evaluative metering 315-zone (21 x 15)
2. Partial metering (approx. 6.3% of Live View screen)
3. Spot metering (approx. 2.7% of Live View screen)
4. Center-weighted average metering
   • AE lock possible. The active metering timer can be changed.

Metering Range
EV 0-20 (at 73°F/23°C, ISO 100)

Grid Display

1. 3x3
2. 6x4
3. 3x3 + diagonals

Exposure Simulation
Possible

Silent Shooting
Provided (Mode 1 and 2)

Video Shooting

File Format
MOV:
4K Video*: Motion JPEG
Full HD/HD Movie: MPEG-4 AVC/H.264

• Variable (averaged) bit rate

Audio: Linear PCM

MP4:
Movie: MPEG-4 AVC/H.264

• Variable (averaged) bit rate

Audio: AAC

File Size
Recording Sizes:
4096 x 2160 (4K)*, 1920 x 1080 (Full HD), 1280 x 720 (HD)

Frame Rates
MOV:
4096 x 2160 (4K)*: 30 fps (29.97 fps) / 24 fps / 23.98 fps
1920 x 1080 (Full HD): 60 fps (59.94 fps) / 30 fps (29.97 fps) / 24 fps / 23.98 fps
1280 x 720 (HD): 120 fps (119.9 fps)

MP4:
1920 x 1080 (Full HD): 60 fps (59.94 fps) / 30 fps (29.97 fps) / 24 fps / 23.98 fps

*4K requires the following write speed requirements: CF UDMA7 (100MB/sec. or faster); SD UHS-I (90MB/sec. or higher)

Continuous Shooting Time

Continuous Shooting Time

MOV

MP4

Bit rate indicates video output only, audio is not included.
For both MOV and MP4, if the recording time reaches 29 min. 59 sec. (or 7 min. 29 sec. for a HD High Frame Rate Movie), the movie shooting will stop automatically.
With MOV and MP4, movie shooting does not stop automatically stop even when the file size reaches 4 GB.

Focusing

1. Dual Pixel CMOS AF
2. Manual focus
   • Magnify the image by approx. 5x or 10x and focus manually (not possible during movie shooting).

Exposure Compensation
Up to ±3 stops in 1/3-stop increments

LCD Monitor

Type
TFT color, liquid-crystal monitor

Monitor Size
3.2-inch (Screen aspect ratio of 3:2)
3.19 in./8.10cm diagonal (2.65 in./6.74cm width, 1.77 in./4.49cm height)

Pixels
Approx. 1.62 million dots

Coverage
Approx. 100%
Viewing angle: 170° vertically and horizontally

Brightness Control

• Automatic
• Manually adjustable to one of seven brightness levels

Coating
Clear View LCD II

• Anti-smudge coating
• Anti-reflection coating

Interface Languages
25 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese)

Tilt Display

On LCD Monitor
Electronic level indicates up to 360° roll and ±10° pitch in 1° increments.

• Precision has a margin of error of up to 1° for ±10°, and up to 3° for ±45°.

In Viewfinder
Electronic level indicates up to 7.5° roll left/right and ±4° pitch in 1° increments.

• Precision has a margin of error of up to 1° for ±10°, and up to 3° for ±45°.

Playback

Display Format
Single image display:

• No information display
• Basic information display
• Detailed shooting information display
  Basic shooting information
  Lens/histogram information
  White balance information
  Picture Style information 1
  Picture Style information 2
  Color space/noise reduction information
  Lens aberration correction information 1
  Lens aberration correction information 2
  GPS information
  IPTC information (First for EOS)

Index display:

• 4-image index
• 9-image index
• 36-image index
• 100-image index

Highlight Alert
With single-image display (Info.) and single-image display, the white areas with no image data will blink.

Quick Control Function

Items
Pressing the Quick Control button displays the Quick Control screen during viewfinder shooting, Live View shooting, movie shooting and playback.

Image Protection and Erase

Protection
Erase protection can be applied or canceled for a single image (select image), all images in a folder or all images in the card.

Erase
Erase a single image (playback and erase image), selected images, all images in a folder or all images in a card.

Direct Printing

Compatible Printers
Images can be sent via Wi-Fi® to a PictBridge-compatible (Wireless LAN) printer and printed.

Printable Images

1. Individual images
2. Specify images by folder
3. Specify all images in card
   • RAW images and movies cannot be specified for printing.

DPOF: Digital Print Order Format

DPOF
Compliant to DPOF Version 1.1

Direct Image Transfer

Compatible Images

1. JPEG images
2. RAW images
3. Movies

Customization

Custom Functions
17 Custom Functions settable with the camera

Custom Controls
Functions can be assigned to the following buttons:

• Shutter button halfway pressing
• AF-ON button
• AE lock button
• Depth of field preview button
• Lens AF stop button
• Multi-function button
• SET button
• Main Dial
• Quick Control Dial
• Multi controller
• AF area selection button

Camera User Settings
Current camera settings can be registered to C1, C2 and C3 on the Mode Dial.

My Menu Registration

• Up to six top-tier menu options and Custom Functions can be registered.
• Up to five My Menu tabs can be added.
• My Menu tab overall operations
• Adding a tab
• Deleting tabs in a batch
• Deleting all tab items
• Setting the menu display
• My Menu tab detailed operations
• Selecting a registered item
• Sorting registered items
• Deleting selected registered items
• Deleting registered items in a batch
• Deleting tabs
• Changing a tab name (16 ASCII characters)

Interface

USB Terminal
SuperSpeed USB (USB 3.0)

• For computer communication
• For WFT-E7 (Ver.2.0) connection
• For Connect Station CS100 connection

Video Out Terminal

HDMI Type C (Resolution switches automatically), CEC compatible

• Images can be displayed through the HDMI output and on LCD monitor at the same time.

Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.

Power Source

Battery
Battery Pack LP-E6N (or LP-E6) x 1

• With the AC Adapter + DC Coupler, AC power is possible.
• When the Battery Grip BG-E20 is used, two battery packs (LP-E6N or LP-E6) can be installed.

Battery Life

Battery Life (Approx. Number of Shots)

Based on CIPA testing standards.

Battery Check
Automatic battery check when the power switch is turned ON. Displayed in 6 levels.

• Battery level displayed on the LCD panel and in the viewfinder.
• One of six levels displayed for LP-E6N and LP-E6. The display for other power sources is different.

Power Saving
Power turns off after the set time (1, 2, 4, 8, 15 or 30 min.) of non-operation elapses.

• Even when you set the date, time or zone and 1, 2 or 4 min. is set, it will take 6 min. for auto power off to take effect.

Date/Time Battery
Built-in secondary battery
When fully-charged, the date/time can be maintained for approx. 3 months

• Recharge time: approx. 8 hr.
  • The recharge time required to provide the above number of months with no battery pack installed.

Start-up Time
Approx. 0.96 sec

• Based on CIPA testing standards

Dimensions and Weight

Dimensions (W x H x D)
Approx. 5.93 x 4.58 x 2.99 in. / 150.7 x 116.4 x 75.9mm

Weight
Approx. 31.39 oz. / 890g (Including battery, CF card and SD memory card)
Approx. 28.22 oz. / 800g (Body only; without battery, card, body cap and eyecup)

Operating Environment

Working Temperature Range
32-104°F/0-40°C

Working Humidity Range
85% or less

What's Included
