$ 199.99 - Sold Out
Manfrotto SKU: MVH502A | Helix SKU: BOMVH502A
The Manfrotto 502 Fluid Video Head features variable fluid drag system for pan and tilt movements that's cleverly incorporated into the design. It's ideal for the latest camcorder and HDSLR cameras supplied with external accessories. It has a maximum capacity of 7kg and features a Ø75mm half ball connection to ensure compatibility with most equipment today. This video head also has a fixed counterbalance system of 4 Kgs. Last but not least, 3/8'' Easy Link attachment points allow an external monitor or other accessory equipment to be fitted.
|Safety Payload Weight||15.43 lbs|
|Counterbalance Weight||8.82 lbs|
|Tilt Drag||continuously adjustable from 0 to max level|
|Pan Drag||continuously adjustable from 0 to max level|
|Ball Flat||75 Ball|
|Center of gravity||2.17 in|
|Front Tilt||-80° / +90°|
|Bubble Spirit Level (No.)||1|
|Accessory Compatibility||MVAPANBARM; MVAPANBARL; 502HLV; 509HLV|
|Top Attachment||1/4″ screw, 3/8″ screw|
|Powered by (batteries)||0|
|Head Type||Video/Fluid Head|
|Maximum Working Temperature||140 F|
|Minimum Working Temperature||-4 F|
|Pan Bar Included||Yes|
|Working Height||5.91 in|
ProMaster SKU: 7517 | Helix SKU: PR7517

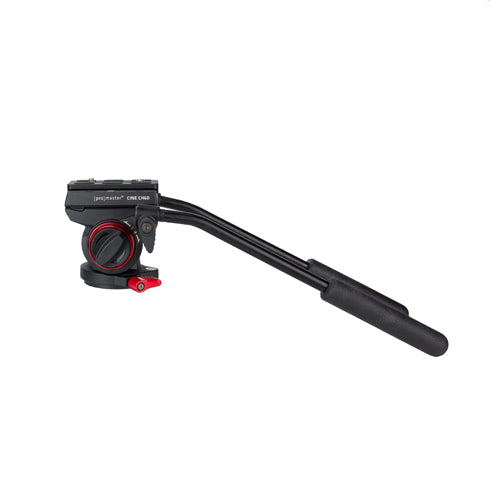

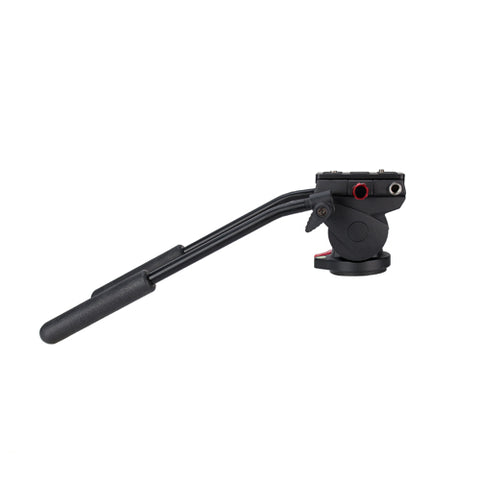

The ProMaster CH60 Cine Head uses the ProMaster dovetail quick release system (arca-swiss compatible). This dovetail Q/R can work with a host of plates and accessories from ProMaster and other brands. The plate included with this kit is long. You can slide it to find the best balance point for your camera and then record the number from the scale on top of the head to set up the same camera even faster next time. This Cine head also has an accessory attachment port (3/8” threaded) for connecting accessories such as an arm and external video monitor. It has twin handles so you can choose to use left, right, or both. The overall operation is very smooth and there is drag adjustment too.
ProMaster SKU: 7524 | Helix SKU: PR7524
Atop the ProMaster CH75 Cine Head you will find the ProMaster dovetail quick release system (arca-swiss compatible), which works with a host of ProMaster accessories as well as many other industry-standard products. The included plate is extra-long so you can slide it to find the best balance point for your camera. Once you do, record the number from the scale on top of the head so you can set up the same camera even faster next time. The CH75 head also has an accessory attachment port (3/8” threaded). This makes it easy to connect all kinds of accessories, especially an arm and external video monitor. Twin, removable handles allow you to choose right, left, or both hands for operation of the head. The movements are very smooth overall and there is a drag adjustment control.
Height: 5" / 12.7 cm
Weight: 4 lbs 4 oz / 1.93 kg
Maximum Load: 22 lbs / 10 kg
Uses Quick Release Plate #7090
ProMaster SKU: 2435 | Helix SKU: PR24352

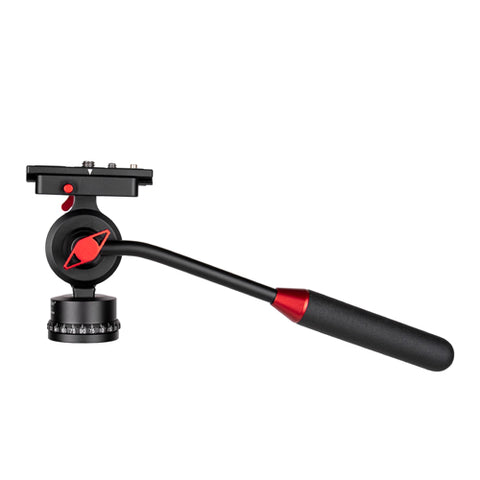

The ProMaster SPCH20 Cine Head is a small but mighty head designed for use with mirrorless and DSLR cameras shooting video or still photos. It provides smooth tilt / pan movements and features a cushiioned handle which can be reversed for right-hand or left-hand use. Its sliding quick relelase plate lets you balance your camera properly and has a scale for quick, repeatable use. The dovetail design of the quick release plate is comatible with a variety of other ProMaster accessories as well as many industry standard items. The mult-position quick release receiver at the top of the head can be set up in various orientations for front-to-back QR plate mounting or side-to-side. Red touch points quickly identify the controls of this head. A separate panning control knob helps you achieve smooth, even pans and a marked scale at the panning base shows precise movemement.
Many telephoto lenses with dovetail style (arca-swiss compatible) tripod collars work extremely well with the SPCH20 head in achieving excellent, smooth tracking of animals for wildlife photography too.
- Height: 3 15/16" / 10 cm
- Weight: 14 1/4 oz / 0.43 g
- Tilt Angle: +60 / -90
- Maximum Load: 6 lbs 9 oz / 3 kg
- 1 ProMaster SPC20 cine head
- 1 1711 Quick release plate
The Mini Fluid Video Head is ideal for small-to-mid size camcorders weighing under 9 lbs. It features smooth, fluid-like pan & tilt movement, and a quick-release plate for fast mounting/dismounting of your camera. Also, the adjustable length pan/tilt handle comes in handy when you're working close (such as when using the eyepiece) or far (when using the LCD screen) from your camcorder. Mounts on any tripod with a flat base and a standard 3/8""-16 mounting screw. Can be mounted on tripods with a bowl using optional half-ball levelers.
The Pro Video Fluid Head with 75mm Half Ball features a removable 70mm head bowl that allows you the flexibility of using the head for either video or still photography. The head also features independent tilt and pan drag control with a built-in counter-balance system. The head includes a quick-release plate with both 1/4" and 3/8" mounts. Maximum load capacity of the head is 15 pounds (6.8 kg)
