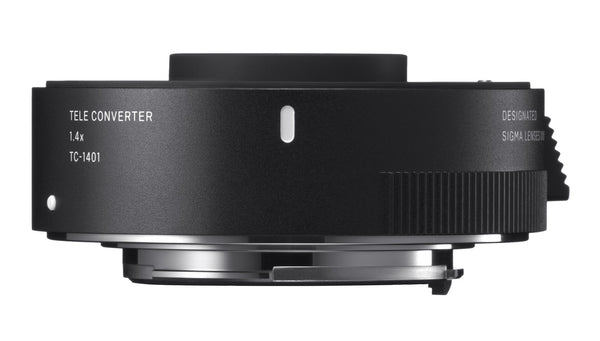

Sigma 1.4 X Teleconverter TC-1401 (only for SGV Lenses) (Sigma)
$ 349.00
Sigma 1.4 X Teleconverter TC-1401 (only for SGV Lenses) (Sigma)
$ 349.00
Sigma 1.4 X Teleconverter TC-1401 (only for SGV Lenses) (Sigma) - SM879110
Product Overview
Equipped with 1 SLD (Special Low Dispersion) glass element for maximum image quality, the new Sigma Global Vision teleconverters utilize a splash and dust proof construction for long lasting durability. Created exclusively for the Global Vision lenses, these teleconverters ensure the utmost in compatibility, even for large diameter lenses. With effective AF at F8 and 1.4x the reach, get the most out of your Sigma lens.
| SIGMA TELECONVERTER TC-1401 | |||
| SIGMA | NIKON | CANON | |
| 120-300mm F2.8 DG OS HSM | Sports | AF*1 | AF*2 | AF*3 |
| 150-600mm F5-6.3 DG OS HSM | Sports | AF*4 | AF*4 | AF*4 |
| 150-600mm F5-6.3 DG OS HSM | Contemporary | AF*4 | AF*4 | AF*4 |
Teleconverter TC-1401 is only compatible with the Global Vision lenses listed above.
*1 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.01 or later.
*2 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.02 or later.
*3 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.03 or later.
*4 When SIGMA TELE CONVERTER TC-1401 is attached to cameras that are compatible with AF at F8, it is possible to shoot with AF. In cases where contrast or brightness level of the shooting object is low, it may not focus properly.
Please be advised that the updated version of lens firmware will make it compatible with the new tele converters, however it will also make it incompatible with conventional APO TELE CONVERTER 1.4x EX DG and APO TELE CONVERTER 2x EX DG.
SPECIFICATIONS
Sigma 100-400mm F5-6.3 DG OS HSM | C - Sigma
$ 799.00
$ 699.00
Sale
Sigma 100-400mm F5-6.3 DG OS HSM | C - Sigma
$ 799.00 $ 699.00
Sigma 100-400mm F5-6.3 DG OS HSM | C - Sigma
Sigma SKU: 729956 | Helix SKU: SM729956
Overview
The Sigma 100-400mm 5-6.3 DG HSM OS Contemporary is a state-of-the-art telephoto zoom that brings a new level of portability and quality to the super telephoto market. Touting Sigma’s Optical Stabilizer (OS), the Sigma 100-400mm 5-6.3 Contemporary is highly compact and lightweight compared to similar products on the market. A push/pull zooming function and a new Hyper Sonic Motor (HSM) allow for a more responsive approach to photography while a 1:3.8 macro feature can be utilized from up close or from a further distance. Like each and every Global Vision Lens, the Sigma 100-400mm Contemporary is handcrafted at our single factory in Aizu, Japan and undergoes individual evaluation before leaving Sigma’s facility.
-
Full Frame Lens with APS-C compatibility
-
Compact size meets strong image quality
-
Ideal Use: Travel photography, wildlife photography, nature photography and bird photography
Specifications
LENS CONSTRUCTION
SPECIFICATIONS
| Lens Construction | 21 Elements in 15 Groups | ||||||
| Angle of View (35mm) | 24.4º-6.2 º | ||||||
| Number of Diaphragm Blades | 9 | ||||||
| Minimum Aperture | f22 | ||||||
| Minimum Focusing Distance | 160 cm / 63 in | ||||||
| Filter Size (mm) | 67mm | ||||||
| Maximum Magnifications | 1:3.8 | ||||||
| Dimensions (Diameter x Length) |
86.4x182.3mm/ 3.4x7.2in | ||||||
| Weight | 1160g/ 40.9oz. | ||||||
| Corresponding Mounts |
|
||||||
| HSM -Hyper-Sonic Motor DG - DG for Digital Full Frame and APS-C OS - Optical Stabilizer * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||
GEOMETRICAL MTF CHART
DIFFRACTION MTF CHART
EFFECTIVE DISTORTION
RELATIVE DISTORTION
VIGNETTING

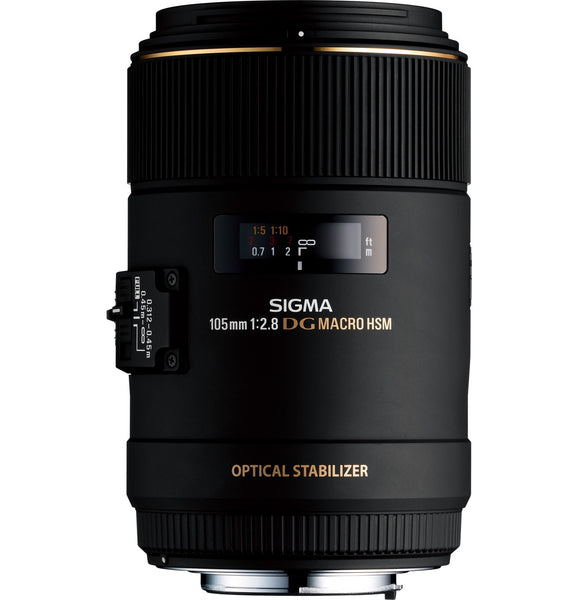

Sigma 105mm F2.8 EX DG OS HSM Macro (Sigma)
$ 669.00
Sigma 105mm F2.8 EX DG OS HSM Macro (Sigma)
$ 669.00
Sigma 105mm F2.8 EX DG OS HSM Macro (Sigma)
Sigma SKU: 258110 | Helix SKU: SM258110
Product Overview
This large aperture medium telephoto macro lens offers advanced performance of close-up photography. Sigma’s own proprietary OS (Optical Stabilizer) system enables handheld close-up photography. A Special Low Dispersion (SLD) lens and one high refractive index SLD lens provide excellent correction for all types of aberration and distortion. A floating focusing system moves two different lens groups in the optical path to different positions. This system compensates for astigmatic aberration and spherical aberration and provides extremely high optical performance from infinity to 1:1 Macro.The Super Multi-Layer Coating reduces flare and ghosting, providing high contrast images. It is also possible to use this lens with Sigma's APO TELE CONVERTERS. The HSM (Hyper Sonic Motor) ensures quiet and high speed autofocus as well as full-time manual focus capability. This lens features a rounded 9 blade diaphragm creating an attractive blur to the out of focus areas of the image.
SPECIFICATIONS
| Lens Construction | 16 Elements in 11 Groups | ||||||||
| Angle of View | 23.3º | ||||||||
| Number of Diaphragm Blades | 9 | ||||||||
| Minimum Aperture | f22 | ||||||||
| Minimum Focusing Distance | 31.2 cm / 12.3 in | ||||||||
| Filter Size (mm) | 62mm | ||||||||
| Maximum Magnifications | 1:1 | ||||||||
| Dimensions (Diameter x Length) |
126.4 mm/3.1in.×5 in | ||||||||
| Weight | 725g / 25.6oz. | ||||||||
| Corresponding Mounts |
|
||||||||
|
OS - Optical Stabilizer Function HSM - Hyper-Sonic Motor EX - EX Lens * Nikon mounts do not have an aperture ring. Some functions may not work depending on the camera model. *For Nikon and Canon mounts, Optical Stabilizer (OS) function will not work with film SLR cameras except Nikon F6 and Canon EOS-1V. * When using the APS-C Hood Adapter HA680-01 with digital cameras with larger than APS-C size image sensor, vignetting will occur. Please remove the hood adapter if you are using these cameras. * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
MTF CHART
LENS CONSTRUCTION
Sigma 120-300mm F2.8 SPORTS DG APO OS HSM (Sigma)
$ 3,599.00
Sigma 120-300mm F2.8 SPORTS DG APO OS HSM (Sigma)
$ 3,599.00
Sigma 120-300mm F2.8 SPORTS DG APO OS HSM (Sigma)
Sigma SKU: 137110 | Helix SKU: SM137110
Special Order Item
Overview
The Sigma 120-300 F2.8 DG HSM OS is the first lens introduced into the Sports category for Sigma’s Global Vision. Designed for full frame cameras but can work with APS-C sized sensors as well, the 120-300 F2.8 has a large aperture and versatile focal length, ideal for a wide range of photography. Though placed in the Sports category, the 120-300 F2.8 is also great for nature, automotive, wildlife, and everything in between. Equipped with state of the art technology such as a Hyper Sonic Motor (HSM), an Optical Stabilizer (OS) and Inner Focusing and Zooming, the 120-300 F2.8 ensures sharp and beautiful images. The HSM allows for a quiet, fast, and accurate autofocusing while the OS compensates for camera shake while shooting by hand. Two FLD glass elements, which have performance equal to fluorite, are incorporated with one SLD element to reduce color aberration at the highest degree. The Sports category offers not only a higher level of customization through the Sigma USB dock*, but also has a dust and splash proof design.
| Teleconverter Compatibility Chart | |||
| SIGMA TELECONVERTER TC-1401 | |||
| SIGMA | NIKON | CANON | |
| 120-300mm F2.8 DG OS HSM | Sports | AF*1 | AF*2 | AF*3 |
| SIGMA TELECONVERTER TC-2001 | |||
| SIGMA | NIKON | CANON | |
| 120-300mm F2.8 DG OS HSM | Sports | AF*1 | AF*2 | AF*3 |
Teleconverter TC-1401 is only compatible with the Global Vision lenses listed above.
*1 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.01 or later.
*2 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.02 or later.
*3 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.03 or later.
 |
USB Dock Compatibility Sigma has developed special software (SIGMA Optimization Pro) that can update the lens firmware and adjust parameters such as focus. In addition, the lenses from our Sports line have customizable AF speed, focus limiter and OS function. The “Custom Mode Switch” is the device for further customization on the dedicated lenses. *USB Dock is sold separately. |
 |
SIGMA MOUNT CONVERSION SERVICE Sigma will convert the current mount of your Sigma Global Vision lens to another of your choice. Sigma lenses currently from the Contemporary, Art or Sports line, in Sigma, Canon, Nikon, Sony, Pentax mounts can be converted to Sigma, Canon, Nikon, Sony or Pentax*. They cannot be converted to either an APS-C or a Full Frame format. |
SPECIFICATIONS
| Lens Construction | 23 Elements in 18 Groups | ||||||||
| Angle of View | 20.4º-8.2º | ||||||||
| Number of Diaphragm Blades | 9 | ||||||||
| Minimum Aperture | f22 | ||||||||
| Minimum Focusing Distance | 150cm -250cm cm / 59.1in - 98.4in | ||||||||
| Filter Size (mm) | 105mm | ||||||||
| Maximum Magnifications | 1:8.1 | ||||||||
| Dimensions (Diameter x Length) |
124.4mm x 291mm/4.8in x 11.5in | ||||||||
| Weight | 3,390g / 119.6oz. | ||||||||
| Corresponding Mounts |
|
||||||||
|
HSM -Hyper-Sonic Motor DG - DG for Digital
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
MTF CHART
LENS CONSTRUCTION
Sigma 150-600mm F5-6.3 CONTEMPORARY DG OS HSM & TC-1401 (Sigma)
$ 1,289.00
Sigma 150-600mm F5-6.3 CONTEMPORARY DG OS HSM & TC-1401 (Sigma)
$ 1,289.00
Sigma 150-600mm F5-6.3 CONTEMPORARY DG OS HSM & TC-1401 (Sigma) - SMZB101
PRODUCT DETAIL
The Sigma 150-600mm 5-6.3 DG HSM OS Contemporary was created around the concept of maximum portability meets utmost image quality in a variable aperture hyper-telephoto zoom lens. Light weight and compact, this s zoom can handle any long-reach photographic situation one may encounter. This 150-600mm Contemporary boasts updated Sigma technology such as a quiet and optimized Hyper Sonic Motor (HSM) and a new Optical Stabilizer (OS) with an accelerometer for improved panning photography both vertically and horizontally, essential for birding, wildlife and motor photography. The Sigma 150-600 Contemporary also touts a new zoom lock switch that can be locked at any focal length and a new manual override (MO) switch is incorporated for improved focusing control. Working with the Sigma USB dock, this lens allows for maximum customization such as firmware updates and adjustments to the focus limiter, AF speed and OS view.
| Teleconverter Compatibility Chart | |||
| SIGMA TELECONVERTER TC-1401 | |||
| SIGMA | NIKON | CANON | |
| 150-600mm F5-6.3 DG OS HSM | Contemporary | AF*4 | AF*4 | AF*4 |
| SIGMA TELECONVERTER TC-2001 | |||
| SIGMA | NIKON | CANON | |
| 150-600mm F5-6.3 DG OS HSM | Contemporary | MF | MF | MF |
Teleconverter TC-1401 is only compatible with the Global Vision lenses listed above.
*4 When SIGMA TELE CONVERTER TC-1401 is attached to cameras that are compatible with AF at F8, it is possible to shoot with AF. In cases where contrast or brightness level of the shooting object is low, it may not focus properly.
|
USB DOCK COMPATIBILITY Sigma has developed special software (SIGMA Optimization Pro) that can update the lens firmware and adjust parameters such as focus. In addition, the lenses from our Sports line have customizable AF speed, focus limiter, OS function and full-time manual focus function. The “Custom Mode Switch” is the device for further customization on the dedicated lenses. |
|
SIGMA MOUNT CONVERSION SERVICE Sigma will convert the current mount of your Sigma Global Vision lens to another of your choice. Sigma lenses currently from the Contemporary, Art or Sports line, in Sigma, Canon, Nikon, Sony, Pentax mounts can be converted to Sigma, Canon, Nikon, Sony or Pentax*. They cannot be converted to either an APS-C or a Full Frame format. |
SPECIFICATIONS
| Lens Construction | 20 Elements in 14 Groups | ||||||||
| Angle of View | 16.4º-4.1 º | ||||||||
| Number of Diaphragm Blades | 9 | ||||||||
| Mininum Aperture | f22 | ||||||||
| Minimum Focusing Distance | 280 cm / 110.2 in | ||||||||
| Filter Size (mm) | 95mm | ||||||||
| Maximum Magnifications | 1:5 | ||||||||
| Dimensions (Diameter x Length) |
105x260.1mm/ 4.1x10.2in | ||||||||
| Weight | 1930g/ 68oz. | ||||||||
| Corresponding Mounts |
|
||||||||
|
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
MTF CHART
LENS CONSTRUCTION
Sigma 150-600mm F5-6.3 CONTEMPORARY DG OS HSM (Sigma)
$ 1,089.00
Sigma 150-600mm F5-6.3 CONTEMPORARY DG OS HSM (Sigma)
$ 1,089.00
Sigma 150-600mm F5-6.3 CONTEMPORARY DG OS HSM (Sigma) - SM745110
PRODUCT DETAIL
The Sigma 150-600mm 5-6.3 DG HSM OS Contemporary was created around the concept of maximum portability meets utmost image quality in a variable aperture hyper-telephoto zoom lens. Light weight and compact, this s zoom can handle any long-reach photographic situation one may encounter. This 150-600mm Contemporary boasts updated Sigma technology such as a quiet and optimized Hyper Sonic Motor (HSM) and a new Optical Stabilizer (OS) with an accelerometer for improved panning photography both vertically and horizontally, essential for birding, wildlife and motor photography. The Sigma 150-600 Contemporary also touts a new zoom lock switch that can be locked at any focal length and a new manual override (MO) switch is incorporated for improved focusing control. Working with the Sigma USB dock, this lens allows for maximum customization such as firmware updates and adjustments to the focus limiter, AF speed and OS view.
| Teleconverter Compatibility Chart | |||
| SIGMA TELECONVERTER TC-1401 | |||
| SIGMA | NIKON | CANON | |
| 150-600mm F5-6.3 DG OS HSM | Contemporary | AF*4 | AF*4 | AF*4 |
| SIGMA TELECONVERTER TC-2001 | |||
| SIGMA | NIKON | CANON | |
| 150-600mm F5-6.3 DG OS HSM | Contemporary | MF | MF | MF |
Teleconverter TC-1401 is only compatible with the Global Vision lenses listed above.
*4 When SIGMA TELE CONVERTER TC-1401 is attached to cameras that are compatible with AF at F8, it is possible to shoot with AF. In cases where contrast or brightness level of the shooting object is low, it may not focus properly.
|
USB DOCK COMPATIBILITY Sigma has developed special software (SIGMA Optimization Pro) that can update the lens firmware and adjust parameters such as focus. In addition, the lenses from our Sports line have customizable AF speed, focus limiter, OS function and full-time manual focus function. The “Custom Mode Switch” is the device for further customization on the dedicated lenses. |
|
SIGMA MOUNT CONVERSION SERVICE Sigma will convert the current mount of your Sigma Global Vision lens to another of your choice. Sigma lenses currently from the Contemporary, Art or Sports line, in Sigma, Canon, Nikon, Sony, Pentax mounts can be converted to Sigma, Canon, Nikon, Sony or Pentax*. They cannot be converted to either an APS-C or a Full Frame format. |
SPECIFICATIONS
| Lens Construction | 20 Elements in 14 Groups | ||||||||
| Angle of View | 16.4º-4.1 º | ||||||||
| Number of Diaphragm Blades | 9 | ||||||||
| Mininum Aperture | f22 | ||||||||
| Minimum Focusing Distance | 280 cm / 110.2 in | ||||||||
| Filter Size (mm) | 95mm | ||||||||
| Maximum Magnifications | 1:5 | ||||||||
| Dimensions (Diameter x Length) |
105x260.1mm/ 4.1x10.2in | ||||||||
| Weight | 1930g/ 68oz. | ||||||||
| Corresponding Mounts |
|
||||||||
|
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
MTF CHART
LENS CONSTRUCTION
Sigma 150-600mm F5-6.3 SPORTS DG OS HSM (Sigma)
$ 1,999.00
Sigma 150-600mm F5-6.3 SPORTS DG OS HSM (Sigma)
$ 1,999.00
Sigma 150-600mm F5-6.3 SPORTS DG OS HSM (Sigma) - SM740110
PRODUCT DETAILS
Designed and executed for the most demanding types of photography, the Sigma 150-600mm 5-6.3 DG HSM OS Sports lens is the new standard for telephoto zooms. Boasting 2 FLD glass elements (performance equal to fluorite) and 3 SLD glass elements, the new Sigma 150-600mm Sport produces incredibly sharp images y through the entire zoom range. Chromatic aberration is controlled at the long end of the focal length through the optimized design of the glass elements and a dust and splash proof construction ensures a high degree of durability.
An updated optical stabilizer (OS) features an accelerometer for improved panning photography both horizontally and vertically, essential for birding, wildlife and motorsports photography. The Sigma 150-600 Sports also touts a new zoom lock switch that can be locked at any focal length and a new manual override (MO) switch is incorporated as an option which is activated by rotating the focus ring while using the autofocus. This state-of-the-art lens is equipped with advanced Sigma technology including an optimized, quieter AF, water/oil repellent coating on front and rear elements and Mount Conversion service compatibility. As with all Sport line lenses, the Sigma 150-600 works with the Sigma USB dock for maximum customization allowing for firmware updates and adjustments to the focus limiter, AF speed and OS view.
Accelerator sensor enables panning photography both in vertical and horizontal position.
The OS (Optical Stabilizer) function using an accelerator sensor has been incorporated to ensure high accuracy. OS Mode 1 is suitable for general photography, and Mode 2 is ideal for panning shooting for motor sports etc. With Mode 2, the accelerator sensor works effectively to minimize blur while shooting by detecting whether the camera is positioned vertically or horizontally.
*This lens cannot be used on film SLR cameras with the exception of the Nikon F6, Canon EOS-1V.
*Effect of Mode 2 is limited to panning shooting in horizontal direction.
| Teleconverter Compatibility Chart | |||
| SIGMA TELECONVERTER TC-1401 | |||
| SIGMA | NIKON | CANON | |
| 150-600mm F5-6.3 DG OS HSM | Sports | AF*4 | AF*4 | AF*4 |
| SIGMA TELECONVERTER TC-2001 | |||
| SIGMA | NIKON | CANON | |
| 150-600mm F5-6.3 DG OS HSM | Sports | MF | MF | MF |
Teleconverter TC-1401 is only compatible with the Global Vision lenses listed above.
*4 When SIGMA TELE CONVERTER TC-1401 is attached to cameras that are compatible with AF at F8, it is possible to shoot with AF. In cases where contrast or brightness level of the shooting object is low, it may not focus properly.
|
USB DOCK COMPATIBILITY Sigma has developed special software (SIGMA Optimization Pro) that can update the lens firmware and adjust parameters such as focus. In addition, the lenses from our Sports line have customizable AF speed, focus limiter, OS function and full-time manual focus function. The “Custom Mode Switch” is the device for further customization on the dedicated lenses. |
|
SIGMA MOUNT CONVERSION SERVICE Sigma will convert the current mount of your Sigma Global Vision lens to another of your choice. Sigma lenses currently from the Contemporary, Art or Sports line, in Sigma, Canon, Nikon, Sony, Pentax mounts can be converted to Sigma, Canon, Nikon, Sony or Pentax*. They cannot be converted to either an APS-C or a Full Frame format. |
SPECIFICATIONS
| Lens Construction | 24 Elements in 16 Groups | ||||||
| Angle of View | 16.4º-4.1º | ||||||
| Number of Diaphragm Blades | 9 | ||||||
| Mininum Aperture | f22 | ||||||
| Minimum Focusing Distance | 260cm/ 102.4 in | ||||||
| Filter Size (mm) | 105mm | ||||||
| Maximum Magnifications | 1:5 | ||||||
| Dimensions (Diameter x Length) |
121x290.2mm/ 4.8x11.4in | ||||||
| Weight | 2860g/ 100.9oz | ||||||
| Corresponding Mounts |
|
||||||
|
HSM -Hyper-Sonic Motor *This lens cannot be used on film SLR cameras with the exception of the Nikon F6, Canon EOS-1V.
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||
LENS CONSTRUCTION
Sigma 18-35mm F1.8 ART DC HSM (Sigma)
$ 799.00
$ 724.00
Sale
Sigma 18-35mm F1.8 ART DC HSM (Sigma)
$ 799.00 $ 724.00
Sigma 18-35mm F1.8 ART DC HSM (Sigma)
Sigma SKU: 210110 | Helix SKU: SM210110
Special Order Item
Overview
Truly a revolutionary product, the Sigma 18-35mm 1.8 DC HSM is the first wide-angle to standard zoom lens to achieve a large aperture of 1.8. Designed specifically for APS-C sized sensors, the Sigma 18-35mm 1.8 translates to 27mm-52.5mm on 35mm camera. Tapping into Sigma’s long history of lens innovations, the 18-35mm 1.8 DC HSM incorporates a wide glass molded aspherical lens with Special Low Dispersion (SLD) glass to compensate for aberrations and curvature at the widest angle. Internal focusing and zooming allows for more usability and functionality. The 18-35mm is ideal for landscape photography, portrait photography, still life photography, snap shots, casual photography, and close-ups and the Hyper Sonic Motor (HSM) ensures smooth, fast and accurate autofocusing. The use of Thermally Composite Material (TSC) reduces size and weight but increases accuracy of the lens construction. Its new Global Vision design works features compatibility with the Sigma USB dock for further customization. A 9 blade rounded diaphragm also creates beautiful background blur. The Sigma 18-35mm 1.8 DC HSM is a new benchmark in photographic history and a must have for every camera bag.

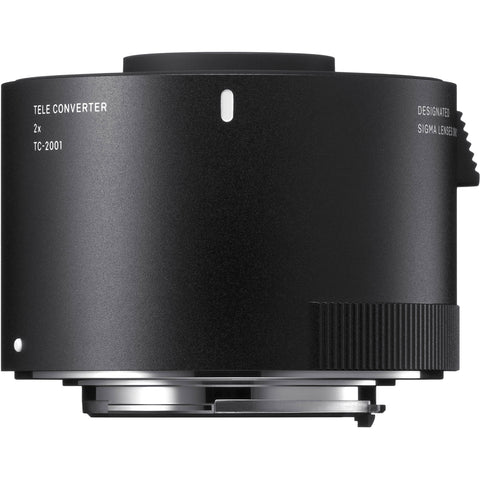

Sigma 2.0 X Teleconverter TC-2001 (only for SGV Lenses) (Sigma)
$ 399.00
Sigma 2.0 X Teleconverter TC-2001 (only for SGV Lenses) (Sigma)
$ 399.00
Sigma 2.0 X Teleconverter TC-2001 (only for SGV Lenses) (Sigma) - SM870110
Product Overview
Equipped with 2 SLD (Special Low Dispersion) glass element for maximum image quality, the new Sigma Global Vision teleconverters utilize a splash and dust proof construction for long lasting durability. Created exclusively for the Global Vision lenses, these teleconverters ensure the utmost in compatibility, even for large diameter lenses. With effective AF at F8 and 2x the reach, get the most out of your Sigma lens.
| SIGMA TELECONVERTER TC-2001 | |||
| SIGMA | NIKON | CANON | |
| 120-300mm F2.8 DG OS HSM | Sports | AF*1 | AF*2 | AF*3 |
| 150-600mm F5-6.3 DG OS HSM | Sports | MF | MF | MF |
| 150-600mm F5-6.3 DG OS HSM | Contemporary | MF | MF | MF |
Teleconverter TC-1401 is only compatible with the Global Vision lenses listed above.
*1 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.01 or later.
*2 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.02 or later.
*3 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.03 or later.
Please be advised that the updated version of lens firmware will make it compatible with the new tele converters, however it will also make it incompatible with conventional APO TELE CONVERTER 1.4x EX DG and APO TELE CONVERTER 2x EX DG.
SPECIFICATIONS
| Lens Construction | 10 Elements in 5 Groups | ||||||||
| Shooting RAnge and Shooting Ratio | 2.0 times the magnification of the original lens | ||||||||
| Dimensions (Diameter x Length) |
69.8x48.90mm/ 2.7x1.9in | ||||||||
| Weight | 290g/ 10.2oz | ||||||||
| Corresponding Mounts |
|
||||||||
|
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
Sigma 200-500mm F2.8 APO EX DG (Sigma)
$ 25,999.00
Sigma 200-500mm F2.8 APO EX DG (Sigma)
$ 25,999.00
Sigma 200-500mm F2.8 APO EX DG (Sigma)
Sigma SKU: 597110 | Helix SKU: SM597110
Special Order Item
Overview
Sigma’s APO 200-500mm F2.8/400-1000mm F5.6 EX DG, is the first large-aperture ultra telephoto lens to have an F2.8 aperture at 500mm. With its specially designed attachment mounted becomes a 400-1000mm F5.6 ultra telephoto lens capable of auto-focus shooting. It has ELD (Extraordinary Low Dispersion) and SLD (Special Low Dispersion) glass for maximum correction of aberrations. Perfect fast moving nature subjects and sports such as surfing, polo and soccer and as it excels at tracking fast moving objects it is a great surveillance lens. Here, Sigma’s achievement is unsurpassed and stands alone.
SPECIFICATIONS
| Lens Construction | 17 Elements in 13 Groups | ||||||
| Angle of View | 12.3º-5º | ||||||
| Number of Diaphragm Blades | 9 | ||||||
| Minimum Aperture | f22 | ||||||
| Minimum Focusing Distance | 200-500 cm / 78.7-196.9 in | ||||||
| Filter Size (mm) | 72mm | ||||||
| Maximum Magnifications | 1:7.7 | ||||||
| Dimensions (Diameter x Length) |
236.5 x 726 mm/9.3 x 28.6 in | ||||||
| Weight | 15700g / 553.7oz | ||||||
| Corresponding Mounts |
|
||||||
|
APO - Apochromatic EX - EX Lens DG - DG for Digital |
|||||||
MTF CHART
LENS CONSTRUCTION
Sigma 24-105mm F4.0 ART DG OS HSM (Sigma)
$ 899.00
Sigma 24-105mm F4.0 ART DG OS HSM (Sigma)
$ 899.00
Sigma 24-105mm F4.0 ART DG OS HSM (Sigma)
Sigma SKU: 635110 | Helix SKU: SM635110
Product Overview
The Sigma 24-105mm F4 DG OS HSM Art lens is a premium lens designed for full frame cameras and will also work with APS-C sensors with an effective increase in focal length. The 24-105mm F4 is a highly versatile focal range and staple everyday lens. With the increasing resolution power of new sensors, it is designed to bring out the true potential of evolving camera technology. Sigma’s 24-105mm f4 includes proprietary Sigma technology including our Hyper Sonic Motor (HSM) which ensures fast, quiet and accurate autofocusing as well as our Optical Stabilizer (OS) which compensates for camera shake. A 9 blade rounded diaphragm creates beautiful background blur, while FLD and SLD glass elements compensate for various aberrations, distortion and curvature. The use of Thermally Composite Material (TSC) reduces size and weight and as part of the new Global Vision design, it is compatible with the Sigma USB dock for further customization and the new Mount Conversion Service.
 |
USB Dock Compatibility Sigma has developed special software (SIGMA Optimization Pro) that can update the lens firmware and adjust parameters such as focus. |
*USB Dock is sold separately.
|
SIGMA MOUNT CONVERSION SERVICE Sigma will convert the current mount of your Sigma Global Vision lens to another of your choice. Sigma lenses currently from the Contemporary, Art or Sports line, in Sigma, Canon, Nikon, Sony, Pentax mounts can be converted to Sigma, Canon, Nikon, Sony or Pentax*. They cannot be converted to either an APS-C or a Full Frame format. |
SPECIFICATIONS
| Lens Construction | 19 Elements in 14 Groups | ||||||||
| Angle of View | 84.1º-23.3º | ||||||||
| Number of Diaphragm Blades | 9 | ||||||||
| Minimum Aperture | f22 | ||||||||
| Minimum Focusing Distance | 45 cm / 17.7 in | ||||||||
| Filter Size (mm) | 82mm | ||||||||
| Maximum Magnifications | 1:4.6 | ||||||||
| Dimensions (Diameter x Length) |
88.6x109.4 mm/3.5x4.3 in | ||||||||
| Weight | 885g / 31.2oz. | ||||||||
| Corresponding Mounts |
|
||||||||
|
HSM -Hyper-Sonic Motor DG- compatible with both full frame and APS-c size sensor cameras * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
MTF CHART
LENS CONSTRUCTION
Sigma 24-35mm F2.0 ART DG HSM (Sigma)
$ 999.00
Sigma 24-35mm F2.0 ART DG HSM (Sigma)
$ 999.00
Sigma 24-35mm F2.0 ART DG HSM (Sigma)
Sigma SKU: 588956 | Helix SKU: SM588956
Product Overview
The Sigma 24-35mm F2 DG HSM Art is the worlds first full frame F2 zoom lens. Covering a common prime lens lineup, the 24-35mm F2 DG HSM was designed for prime performance with the versatility of a zoom lens. Premium FLD glass, with performance equal to flourite, and seven SLD glass elements allow for outstanding image quality. A large diameter aspherical lens, a complicated element to manufacture, allows for a stunning level of brightness. This complicated optical formula creates outstanding image quality throughout the focal range, and even at the widest of apertures. An updated AF algorithm makes for smooth, accurate and fast autofocusing while multi layer coating control flare and ghosting. The Sigma 24-35mm F2 DG HSM Art is another notch on Sigma’s belt for pure photographic innovation.
SPECIFICATIONS
| Lens Construction | 18 Elements in 13 Groups | ||||||
| Angle of View | 84.1º-63.4º | ||||||
| Number of Diaphragm Blades | 9 (rounded diaphragm) | ||||||
| Minimum Aperture | f16 | ||||||
| Minimum Focusing Distance | 28 cm / 11 in | ||||||
| Filter Size (mm) | 82mm | ||||||
| Maximum Magnifications | 1:4.4 | ||||||
| Dimensions (Diameter x Length) |
87.6x122.7 mm/3.4x4.8 in | ||||||
| Weight | 940g/ 33.2oz | ||||||
| Corresponding Mounts |
|
||||||
|
HSM -Hyper-Sonic Motor DG- Compatible with full frame DSLR as well as APS-C DSLR * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||
Sigma 24-70mm f2.8 DG OS HSM ART (Sigma)
$ 1,299.00
$ 1,224.00
Sale
Sigma 24-70mm f2.8 DG OS HSM ART (Sigma)
$ 1,299.00 $ 1,224.00
Sigma 24-70mm f2.8 DG OS HSM ART (Sigma)
Sigma SKU: 576956 | Helix SKU: SM576956
Special Order
Overview
The Sigma 24-70mm F2.8 DG HSM OS Art is a premium workhorse zoom lens designed for the latest high megapixel DSLRs. A constant aperture of 2.8 through the zoom range makes this a highly versatile tool and a brand new Optical Stabilization (OS) system helps compensate for camera shake. Though a common focal length, the Sigma 24-70mm Art brings a new level of usability and durability featuring a rugged metal barrel and an emphasis on image quality. Building off the experience from the 12-24mm Art, the aspherical elements used in the 24-70mm F2.8 OS Art undergo a highly precise level of polishing, producing elements thicker in the center than on the edges. This process creates stunning image quality and beautiful circular bokeh. Like each and every Global Vision Lens, the Sigma 24-70mm F2.8 DG HSM OS Art is handcrafted at our single factory in Aizu, Japan and undergoes individual evaluation before leaving Sigma’s facility.
Specifications
| Lens Construction | 19 elements in 14 groups | ||||||
| Angle of View (35mm) | 84.1° - 34.3° | ||||||
| Number of Diaphragm Blades | 9 (Rounded diaphragm) | ||||||
| Mininum Aperture | F22 | ||||||
| Minimum Focusing Distance | 37cm / 15in. | ||||||
| Filter Size (mm) | φ82㎜ | ||||||
| Maximum Magnifications | 1:4.3 | ||||||
| Dimensions (Diameter x Length) |
φ88㎜ × 107.6㎜ / 3.5in. x 4.2in. | ||||||
| Weight | 1,020g / 35.9oz. | ||||||
| Corresponding Mounts |
|
||||||
| HSM -Hyper-Sonic Motor DG - DG for Digital Full Frame and APS-C * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||
GEOMETRICAL MTF CHART
DIFFRACTION MTF CHART
EFFECTIVE DISTORTION
RELATIVE DISTORTION
VIGNETTING
Sigma 24mm F1.4 ART DG HSM (Sigma)
$ 849.00
Sigma 24mm F1.4 ART DG HSM (Sigma)
$ 849.00
Sigma 24mm F1.4 ART DG HSM (Sigma)
Sigma SKU: 401110 | Helix SKU: SM401110
Special Order Item
Overview
The Sigma 24mm 1.4 DG HSM Art is a state of the art wide-angle prime lens designed for Full Frame cameras but will work with APS-C sensors as well. Using over 50 years of lens making experience, particularly the knowledge gained from the 35mm 1.4 Art and the 50mm 1.4 Art, the 24mm 1.4 Art is aimed at being the new standard for fast aperture wide angle prime lenses. The latest optical design allows for the utmost in image quality with careful attention paid to edge to edge performance. An optimized power layout places the aspherical lens elements in the rear and adjusts the incidence angle of light source allowing for great performance wide open. Using premium FLD & SLD glass elements, the lens brings aberrations and distortion to a minimum, an issue many wide-angle lenses suffer from. With class leading performance, this lens is ideal for wedding photography, landscape photography, videography, astrophotography, lowlight/indoor photography and event photography. As with all Global Vision lines, the 24mm will be tested using the proprietary “A1” measuring system ensuring the highest standard of operation. The Sigma 24mm Art is compatible with the USB dock to update and customize and is also compatible with the Mount Conversion Service. A staple procedure for the Global Vision lines, every lens will be tested using the proprietary “A1” measuring system.
Specifications
| Lens Construction | 15 Elements in 11 Groups | ||||||||
| Angle of View | 84.1º | ||||||||
| Number of Diaphragm Blades | 9 | ||||||||
| Mininum Aperture | f16 | ||||||||
| Minimum Focusing Distance | 25 cm / 9.8 in | ||||||||
| Filter Size (mm) | 77mm | ||||||||
| Maximum Magnifications | 1:5.3 | ||||||||
| Dimensions (Diameter x Length) |
85mmx90.2mm/ 3.3inx3.6 in | ||||||||
| Weight | 665g / 23.5oz. | ||||||||
| Corresponding Mounts |
|
||||||||
|
HSM -Hyper-Sonic Motor
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
MTF CHART
LENS CONSTRUCTION
Sigma 28mm F1.4 DG HSM I Art Lens - Sigma Mount
$ 1,399.00
Sigma 28mm F1.4 DG HSM I Art Lens - Sigma Mount
$ 1,399.00
Sigma 28mm F1.4 DG HSM I Art Lens - Sigma Mount
Sigma SKU: 441956 | Helix SKU: SM441956
Overview
The new Sigma wide-angle model stands out with its thoroughly corrected magnification chromatic aberration and sagittal coma flare, as well as completely minimized distortion thanks to its optical design. It features water- and oil-repellent coating on the front lens element and its overall dust- and splash-proof structure ensures excellent performance even in the most challenging shooting conditions. The high-speed AF, thanks to the HSM (Hyper Sonic Motor) with an updated algorithm, captures the perfect moment instantly. Available in Sigma, Nikon, Canon and Sony E camera mounts, this lens is a great contender for street photography, as well as shooting landscapes and night skies.
- Best-in-class performance
- Dust- and splash-proof structure
- Designed to minimize flare and ghosting
- Designed to meet all shooting conditions
- Compatible with Canon Lens Aberration Correction
- Nikon electromagnetic diaphragm mechanism included
- Manual Override (MO) capable of switching two full-time manual modes
Specifications
LENS CONSTRUCTION
SPECIFICATIONS
| Lens Construction | 17 elements in 12 groups | ||||||||
| Angle of View (35mm) | 75.4° | ||||||||
| Number of Diaphragm Blades | 9 (Rounded diaphragm) | ||||||||
| Mininum Aperture | F16 | ||||||||
| Minimum Focusing Distance | 28cm / 11 in. | ||||||||
| Filter Size (mm) | φ77㎜ | ||||||||
| Maximum Magnifications | 1：5.4 | ||||||||
| Dimensions (Diameter x Length) |
Φ82.8mm × 107.7mm(3.3 in. x 4.2in.) | ||||||||
| Weight | 865g / 30.5oz. | ||||||||
| Corresponding Mounts |
|
||||||||
| HSM -Hyper-Sonic Motor DG - DG for Digital Full Frame and APS-C * The appearance, specifications, and the like of the product are subject to change for improvement without notice. **This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation. |
|||||||||
GEOMETRICAL MTF CHART
DIFFRACTION MTF CHART
EFFECTIVE DISTORTION
RELATIVE DISTORTION
VIGNETTING
Sigma 30mm F1.4 ART DC HSM (Sigma)
$ 499.00
Sigma 30mm F1.4 ART DC HSM (Sigma)
$ 499.00
Sigma 30mm F1.4 ART DC HSM (Sigma)
Sigma SKU: 301110 | Helix SKU: SM301110
Product Overview
Placed in the Art line, this large-aperture standard lens with an angle of view equivalent to 45mm on a 35mm camera is a superb go-to lens for artistic photography on an APS-C format digital SLR. Offering the bright F1.4 aperture and an angle of view extremely close to that of human vision, this lens is ideal for many different types of photography. Equipped with the latest in lens technology, the 30mm 1.4 lens Art boasts a Hyper Sonic Motor (HSM), Super Multi-Layer Coating and a design featuring Thermally Stable Composite Material (TSC). The HSM ensures quiet, accurate and high-speed autofocus; the Super Multi-Layer Coating reduces flare and ghosting, while the TSC reduces expansion and contraction of the internal lens barrel. A rear focus system prevents focus-dependent variation in aberration, making high-level image quality possible throughout the entire image. With their unchanging barrel length, these lenses also enhance balance and stability for the photographer. An optimized autofocus algorithm achieves smooth focusing while a 9 blade rounded diaphragm creates beautiful bokeh. Under the Global Vision standard, every lens will be tested before shipping using the Sigma A1 MTF system to ensure the highest degree of quality possible and also features capability with the USB dock.
|
USB Dock Compatibility Sigma has developed special software (SIGMA Optimization Pro) that can update the lens firmware and adjust parameters such as focus. |
*USB Dock is sold separately.
|
SIGMA MOUNT CONVERSION SERVICE Sigma will convert the current mount of your Sigma Global Vision lens to another of your choice. Sigma lenses currently from the Contemporary, Art or Sports line, in Sigma, Canon, Nikon, Sony, Pentax mounts can be converted to Sigma, Canon, Nikon, Sony or Pentax*. They cannot be converted to either an APS-C or a Full Frame format. |
SPECIFICATIONS
| Lens Construction | 9 Elements in 8 Groups | ||||||
| Angle of View | 50.7º | ||||||
| Number of Diaphragm Blades | 9 (rounded) | ||||||
| Minimum Aperture | f16 | ||||||
| Minimum Focusing Distance | 30 cm / 11.8 in | ||||||
| Filter Size (mm) | 62mm | ||||||
| Maximum Magnifications | 1:6.8 | ||||||
| Dimensions (Diameter x Length) |
74.2x63.3mm/ 2.9x2.5in | ||||||
| Weight | 435g / 15.3 oz. | ||||||
| Corresponding Mounts |
|
||||||
|
Note: Nikon mount lenses do not have an aperture ring. Lens function may be limited with certain camera bodies. *If the camera body does not support the hypersonic motor of the lens, auto focus will not be available. * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||
MTF CHART
LENS CONSTRUCTION
Sigma 35mm F1.4 ART DG HSM (Sigma)
$ 899.00
Sigma 35mm F1.4 ART DG HSM (Sigma)
$ 899.00
Sigma 35mm F1.4 ART DG HSM (Sigma)
Sigma SKU: 340110 | Helix SKU: SKU SM340110
Overview
The Sigma 35mm 1.4 DG HSM is a state of the art lens designed for full frame cameras but can also be used with APS-C sensors as well. The first addition to the Art category in Sigma’s Global Vision, the 35mm 1.4 DG HSM includes new features based around a unique lens concept and design. The 35mm is a staple focal length in the world of photography, and paired with Sigma technology, this lens can take artistic expression to the next level. The lens is equipped with technology including a Hyper Sonic Motor (HSM), floating internal focusing system, SLD and FLD Glass elements. The HSM ensures quiet, high speed, accurate autofocusing while the floating focusing system allows for superior optical performance with subjects at a closer shooting distance. The SLD glass elements along with the FLD glass elements, which are equal to fluorite, help correct both axial and chromatic aberration. The large 1.4 aperture make it ideal in low light and the lens is compatible with the Sigma USB dock and Optimization Pro software to adjust and fine tune focusing parameters. The Sigma 35mm 1.4 DG HSM is a must have for any camera bag.
SPECIFICATIONS
| Lens Construction | 13 Elements in 11 Groups | ||||||||||
| Angle of View | 63.4º | ||||||||||
| Number of Diaphragm Blades | 9 | ||||||||||
| Mininum Aperture | f16 | ||||||||||
| Minimum Focusing Distance | 30 cm / 11.8 in | ||||||||||
| Filter Size (mm) | 67mm | ||||||||||
| Maximum Magnifications | 1:5.2 | ||||||||||
| Dimensions (Diameter x Length) |
77mm x 94mm /3in x 3.7in | ||||||||||
| Weight | 665g / 23.5oz. | ||||||||||
| Corresponding Mounts |
|
||||||||||
|
HSM - Hyper-Sonic Motor
* PENTAX SFX and SF7 cannot be used. * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||||
LENS CONSTRUCTION
Sigma 50-100mm F1.8 Art DC HSM (Sigma)
$ 1,099.00
$ 999.00
Sale
Sigma 50-100mm F1.8 Art DC HSM (Sigma)
$ 1,099.00 $ 999.00
Sigma 50-100mm F1.8 Art DC HSM (Sigma)
Sigma SKU: 693956 | Helix SKU: SM693956
*Special Order Item
Product Overview
The Sigma 50-100mm 1.8 DC HSM Art is a premium mid telephoto zoom lens designed for APS-C sized sensors. Part of the Sigma Global Vision Art Line, the 50-100mm 1.8 is the second lens to feature a 1.8 aperture all the way through it focal length and factoring in the APS-C increase, the lens covers a highly useful range of 75-150mm. An enhanced and slimmer Hyper Sonic Motor (HSM) provide fast and accurate autofocus while 3 Premium FLD and 1 SLD Elements produce incredible image sharpness. Like all SGV lenses, each lens is hand crafted in our single factory in Aizu Japan, individually inspected before shipping and work with the Sigma USB Dock to update firmware and focus calibrate.
SPECIFICATIONS
| Lens Construction | 21 Elements in 15 Groups | ||||||||
| Angle of View | 31.7-16.2º | ||||||||
| Number of Diaphragm Blades | 9 (Rounded) | ||||||||
| Minimum Aperture | f16 | ||||||||
| Minimum Focusing Distance | 37.4 in | ||||||||
| Filter Size (mm) | 82mm | ||||||||
| Maximum Magnifications | 1: 6.7 | ||||||||
| Dimensions (Diameter x Length) |
3.7x6.7 in | ||||||||
| Weight | 52.6 oz | ||||||||
| Corresponding Mounts |
|
||||||||
|
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
Sigma 50mm F1.4 ART DG HSM (Sigma)
$ 949.00
$ 799.00
Sale
Sigma 50mm F1.4 ART DG HSM (Sigma)
$ 949.00 $ 799.00
Sigma 50mm F1.4 ART DG HSM (Sigma)
Sigma SKU: 311110 | Helix SKU: SM311110
*Special Order Item
Overview
The staple Sigma 50mm 1.4 DG HSM has been redesigned and reengineered to set a new standard for the Art line. With a large 1.4 aperture, the Sigma 50mm 1.4 prime lens is a pro level performer for shooting everything including portrait photography, landscape photography, studio photography and street photography. A Hyper Sonic Motor (HSM) ensures quiet, smooth and accurate autofocusing and paired with Special Low Dispersion (SLD) glass and Super Multi-Layer coating, the 50mm 1.4 is a high performance lens for the modern DSLR sensors. 13 elements in 8 groups allow for unsurpassed performance even at wide apertures and close-up photography is easily managed with a minimum focusing distance of 40cm. The Sigma 50mm 1.4 lens is the new exceptional standard, standard prime.
SPECIFICATIONS
| Lens Construction | 13 Elements in 8 Groups | ||||||||
| Angle of View | 46.8º | ||||||||
| Number of Diaphragm Blades | 9 | ||||||||
| Mininum Aperture | f16 | ||||||||
| Minimum Focusing Distance | 40 cm / 15.7 in | ||||||||
| Filter Size (mm) | 77mm | ||||||||
| Maximum Magnifications | 1: 5.6 | ||||||||
| Dimensions (Diameter x Length) |
3.4 x 3.9 in | ||||||||
| Weight | 815g/ 28.7 oz | ||||||||
| Corresponding Mounts |
|
||||||||
|
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
MTF CHART
Diffraction Chart
Geometrical Chart
LENS CONSTRUCTION
Sigma 60-600mm F4.5-6.3 DG OS HSM | S - Sigma
$ 1,999.00
Sigma 60-600mm F4.5-6.3 DG OS HSM | S - Sigma
$ 1,999.00
Sigma 60-600mm F4.5-6.3 DG OS HSM | S - Sigma
Sigma SKU: 730956 | Helix SKU: SM730956
Overview
The Sigma 60-600mm F4.5-6.3 DG OS HSM Sports is the world’s first 10x optical zoom telephoto lens with a tele end of 600mm. Incorporating 25 elements in 19 groups, excellent and consistent image quality can be achieved throughout the entire zoom range. This lens’ intelligent OS featuring the latest algorithm delivers an image stabilization effect of 4 stops. Its optical design ensures maximum correction of magnification chromatic aberration encountered in hyper-telephoto shooting. This offers both high resolution and consistent edge-to-edge performance throughout the entire zoom range. In addition, when shooting at the focal length of 200mm, the Sigma 60-600mm F4.5-6.3 DG OS HSM Sports can also be used for telephoto macro photography, with a maximum magnification ratio of 1:3.3, thanks to its high rendering performance. Its multi-material build, which incorporates magnesium among other components, ensures durability and enhances portability, allowing for comfortable handling of the 10x zoom lens. The zooming mechanism has been engineered to make both smooth rotation and straight zoom possible. Versatile and robust, the new Sigma hyper-telephoto zoom lens is available in Sigma, Canon and Nikon mounts.
INCORPORATING MULTI-MATERIAL TO
ACHIEVE BOTH PORTABILITY AND DURABILITY
To achieve comfortable handling required for a 10x zoom lens while maintaining high optical quality, the SIGMA 60-600mm F4.5-6.3 DG OS HSM | Sports incorporates multi-material, such as magnesium, CFRP*3, and TSC*4 . The use of these superior materials in the right place reduces the weight of the overall lens to enhance portability and ensure durability.
- *3 Carbon fiber reinforced plastic, a light but strong material used in the interior and exterior fittings of aircraft, among many other applications.
- *4 Thermally Stable Composite (TSC) offers thermal expansion characteristics similar to those of aluminum. Since parts made with TSC expand and contract less due to changes in temperature, they tend to perform better under extreme conditions and help maintain the performance of the lens. TSC also offers outstanding elasticity. Compared to polycarbonate containing 20% glass, TSC offers approximately 70% higher elasticity. Compared to polycarbonate containing 30% glass, it offers 25% higher elasticity. (Comparison is between SIGMA-produced components.)
-
water- and oil-repellent coating
Forefront and rear lenses incorporate a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
-
Dust-proof and splash-proof construction
This lens features a highly effective dust- and splash-proof structure with special sealing at the mount connection, manual focus ring, zoom ring,
-
and cover connection, allowing photographers to work in all types of weather.
-
Intelligent OS
This lens incorporates Intelligent OS*1 adopting the latest algorithm to deliver an image stabilization effect of 4 stops*2.
- horizontally, vertically, or diagonally—regardless of the position of the lens.
- Based on CIPA guidelines (Measured in 600mm with a 35mm full-size image sensor)
-
High-speed AF
The HSM (Hyper Sonic Motor) ensures high speed and quiet AF.
FLEXIBLE ADJUSTMENT
-
Tripod socket
Tripod socket with high usability
- With 90° click stops
- Replaceable lens foot
- Compatible with Arca Swiss tpe clamps
Specifications
LENS CONSTRUCTION
SPECIFICATIONS
| Lens Construction | 25 Elements in 19 Groups | ||||||||
| Angle of View | 39.6º- 4.1º | ||||||||
| Number of Diaphragm Blades | 9 | ||||||||
| Mininum Aperture | F22-F32 | ||||||||
| Minimum Focusing Distance | 60-260cm / 23.6-102.4in.｜ | ||||||||
| Filter Size (mm) | 105mm | ||||||||
| Maximum Magnifications | 1:3.3 (200mm) | ||||||||
| Dimensions (Diameter x Length) |
ø120.4mm x 268.9mm/ ø4.7in. x 10.6in. | ||||||||
| Weight | 2,700g / 95.2oz. | ||||||||
| Corresponding Mounts |
|
||||||||
| HSM -Hyper-Sonic Motor DG- compatible with both full frame and APS-c size sensor cameras * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
DIFFRACTION MTF CHART
GEOMETRICAL MTF CHART
EFFECTIVE DISTORTION
RELATIVE DISTORTION
VIGNETTING
Sigma 70-200mm F2.8 Sports DG OS HSM - Sigma
$ 1,499.00
$ 1,299.00
Sale
Sigma 70-200mm F2.8 Sports DG OS HSM - Sigma
$ 1,499.00 $ 1,299.00
Sigma 70-200mm F2.8 Sports DG OS HSM - Sigma
Sigma SKU: 590956 | Helix SKU: SM590956
*Special Order Item
Overview
One of the most anticipated lenses from the Sigma Global Vision line, the Sigma 70-200mm F2.8 DG OS HSM Sports is the new flagship large-aperture telephoto zoom lens that meets the most stringent needs of professional photographers. Robust yet lightweight, the lens’ magnesium body ensures high mobility and its dust- and splash-proof structure together with the water- and oil-repellent coating on the front element ensure safe use even in the most challenging shooting conditions. It also incorporates Intelligent OS with an acceleration sensor and the latest algorithm capable of panning in all directions. The lens’ optical design, incorporating 10 exclusive low-dispersion glass elements, allows for extremely high resolution, from the center to the corners. By optimizing spherical aberration, a smooth and natural bokeh effect is achieved when using the Sigma 70-200mm F2.8 DG OS HSM Sports for portrait photography. The versatility of this lens is demonstrated in various customization options via an AF Function button either through the camera body or Sigma USB Dock. The newest F2.8 large-aperture zoom lens from Sigma comes in Sigma, Canon and Nikon mounts.
-
water- and oil-repellent coatingForefront and rear lenses incorporate a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
-
dust- and splash-proof structure
This lens features a highly effective dust- and splash-proof structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection, allowing photographers to work in all types of weather.
-
Intelligent OS
This lens incorporates Intelligent OS* adopting the latest algorithm to deliver an image stabilization
* horizontally, vertically, or diagonally—regardless of the position of the lens.
Magnesium alloy barrel
-
To help minimize the weight associated with a hyper telephoto lens, the lens barrel is made with a magnesium alloy. Both lightweight and tough, this alloy contributes to the outstanding maneuverability of SIGMA 500mm F4 DG HSM | Sports.
Specifications
SPECIFICATIONS
| Lens Construction | 24 Elements in 22 Groups | ||||||||
| Angle of View | 34.3º-12.3º | ||||||||
| Number of Diaphragm Blades | 11 | ||||||||
| Mininum Aperture | F22 | ||||||||
| Minimum Focusing Distance | 120cm - 47.2in | ||||||||
| Filter Size (mm) | 82mm | ||||||||
| Maximum Magnifications | 1:4.8 | ||||||||
| Dimensions (Diameter x Length) |
ø94.2mm x 202.9mm / ø 3.7in. x 8.0in. | ||||||||
| Weight | 1,805g / 63.7oz. | ||||||||
| Corresponding Mounts |
|
||||||||
| HSM -Hyper-Sonic Motor DG- compatible with both full frame and APS-c size sensor cameras * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
LENS CONSTRUCTION
DIFFRACTION MTF CHART
GEOMETRICAL MTF CHART
EFFECTIVE DISTORTION
RELATIVE DISTORTION
VIGNETTING
Item Includes
Sigma 85mm F1.4 DG HSM Art (Sigma)
$ 1,199.00
Sigma 85mm F1.4 DG HSM Art (Sigma)
$ 1,199.00
Sigma 85mm F1.4 DG HSM Art (Sigma)
Sigma SKU: 321956 | Helix SKU: SM321956
Overview
The Sigma 85mm 1.4 DG HSM Art is the latest addition to the world renowned Sigma Global Vision Line. Designed and engineered for unparalleled image quality, the Sigma 85mm 1.4 Art employs a completely new optical design and premium components. 2 FLD (performance equal to fluorite) glass elements and 1 element boasting a high rate of anomalous partial dispersion and high refraction achieve a class leading level of performance. The highly anticipated 85mm 1.4 Art is an ideal lens for a variety of photographic subjects, particularly portrait photography, both in-studio and on-location. The newly updated Hyper Sonic Motor (HSM) allows for 1.3X the torque of previous generations for fast and efficient autofocus. Through rigorous testing, the Sigma 85mm 1.4 Art ushers in a new era of quality and performance for this popular fast prime focal length. A 9 blade rounded diaphragm creates beautiful background bokeh to isolate and accentuate the subject. Full Time manual focus can be engaged by rotating the focusing ring, even when shooting continuous autofocus and a state-of-the-art electronic diaphragm is included for lenses in the Nikon mount.
SPECIFICATIONS
| Lens Construction | 14 Elements in 12 Groups | ||||||
| Angle of View | 28.6º | ||||||
| Number of Diaphragm Blades | 9 (Rounded Diaphragm) | ||||||
| Mininum Aperture | f16 | ||||||
| Minimum Focusing Distance | 85 cm / 33.5in. | ||||||
| Filter Size (mm) | 86mm | ||||||
| Maximum Magnifications | 1:8.5 | ||||||
| Dimensions (Diameter x Length) |
94.7mmx126.2mm / 3.7in. x 5.0in. | ||||||
| Weight | TBD | ||||||
| Corresponding Mounts |
|
||||||
|
HSM -Hyper-Sonic Motor * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||
MTF CHART
Diffraction MTF
Geometrical MTF
