SDI Video Inputs
1 x 3G-SDI BNC.
Blackmagic URSA Viewfinder
$ 1,679.00 - Sold Out

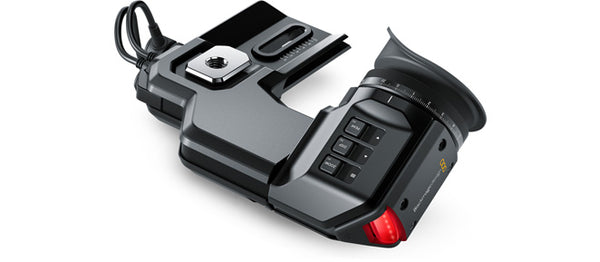

Blackmagic URSA Viewfinder
$ 1,679.00 - Sold Out
Blackmagic URSA Viewfinder
Blackmagic SKU: BMD-CINEURSANEVFP | Helix SKU: BMDCINEURSANEVFP
Overview
The Blackmagic URSA Viewfinder is the perfect accessory to make outdoors and handheld shooting with your URSA or URSA Mini digital film camera easy. You get an extremely high quality viewfinder with 1080HD resolution display, true precision glass optics, built in tally light and built in menus, overlays and even a digtal focus chart!
Specifications
Connections
Power Input
1 x 4 pin XLR 12V.
Computer Interface
USB 2.0 Mini-B port for software updates.
Features
Display Resolution
Full 1920 x 1080.
Frame Rate
Up to 60fps
Display Type
OLED
Display Pixels
6.22 Million Pixels
Color Precision
24 bit RGB, 16.7 million colors
Focus
4 Element diopter.
Diopter Range
-4 to +3
Controls
Buttons for settings, short cut features and navigating menus.
Overlays
Built in overlay display processor and top mounted buttons.
Eyepiece
Can be tilted vertically and extended for left or right eye use.
Tally
LED tally light.
Mounting Options
Camera mount with adjustment.
Metadata Support
Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Shield for Arduino.
Operating Systems
Mac 10.12 Sierra,
Mac 10.13 High Sierra or later.
Windows 8.1 or Windows 10.
Power Requirements
12V power input via 4 pin XLR connected via 12v power output.

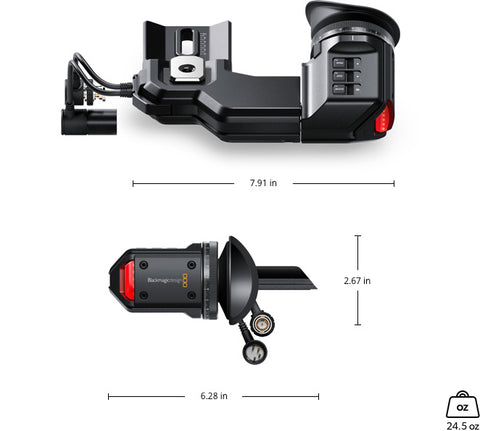

Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic URSA Viewfinder
3/8 inch viewfinder mounting thumb screw for URSA
Warranty
12 Month Limited Manufacturer’s Warranty.
Canon Electronic Viewfinder EVF-DC1
$ 244.99
Canon Electronic Viewfinder EVF-DC1
$ 244.99
Canon Electronic Viewfinder EVF-DC1
Ikelite - Straight Magnified Viewfinder for DSLR and Mirrorless Housings
$ 849.95

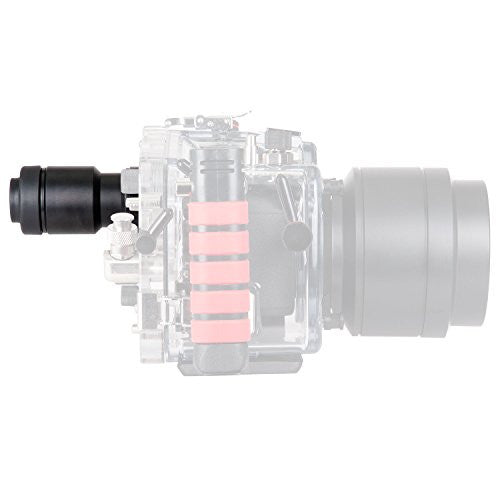

Ikelite - Straight Magnified Viewfinder for DSLR and Mirrorless Housings
$ 849.95
Ikelite - IK-6890 - Straight Magnified Viewfinder for DSLR and Mirrorless Housings
Ikelite 45 Degree Magnified Viewfinder for DSLR and Mirrorless Housings (Type 3)
$ 949.95

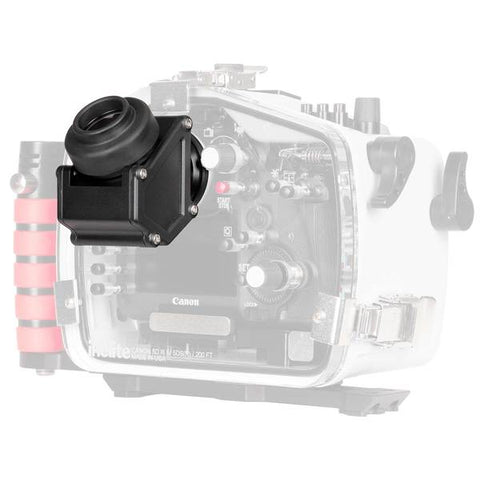

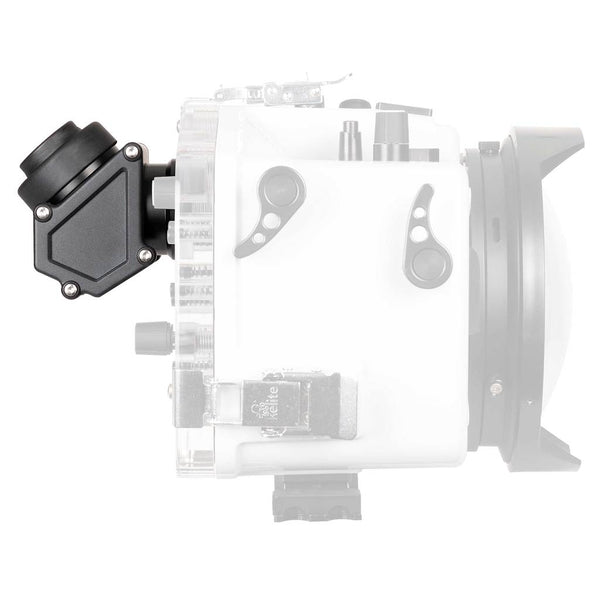

Ikelite 45 Degree Magnified Viewfinder for DSLR and Mirrorless Housings (Type 3)
$ 949.95
Ikelite 45 Degree Magnified Viewfinder for DSLR and Mirrorless Housings (Type 3)
Ikelite SKU: 6891.3 | Helix SKU: 68913
Overview
Enjoy enhanced viewing of your camera's viewfinder while creating space for your regulator, making composition more comfortable. Easy installation on almost any Ikelite housing for a DSLR or mirrorless camera.
Compatibility
Three versions of this viewfinder are available to provide adequate control clearance. Choose Type 1, 2, or 3 based on your camera and housing model.
The Type 3 viewfinder may be used with any housing that calls for a Type 1 viewfinder. The Type 1 viewfinder cannot be used with housings that require a Type 3.
Refer to the compatibility chart in the Documentation section.
Specifications
Anodized aluminum, glass, and acetyl
1.0X magnification
2.23 x 3.24 x 3.82" (57 x 82 x 97 mm)
Weighs 11.7 oz (332 g)
In the Box
Viewfinder
Protective cap
Attachment tool # 0945.04
Spare o-ring # 0132.22
Ikelite Type 1 45 degree Magnified Viewfinder 6891.1
$ 949.95
Ikelite Type 1 45 degree Magnified Viewfinder 6891.1
$ 949.95
Ikelite Type 1 45 degree Magnified Viewfinder
Ikelite Type 2 45 degree Magnified Viewfinder
$ 949.95
Ikelite Type 2 45 degree Magnified Viewfinder
$ 949.95
Ikelite Type 2 45 degree Magnified Viewfinder
Ikelite SKU: 6891.2 | Helix SKU: 68912
Overview
Nikon Diopter +0.5 Correction Eyepiece for Nikon Digital SLR Cameras
$ 16.95 - Sold Out

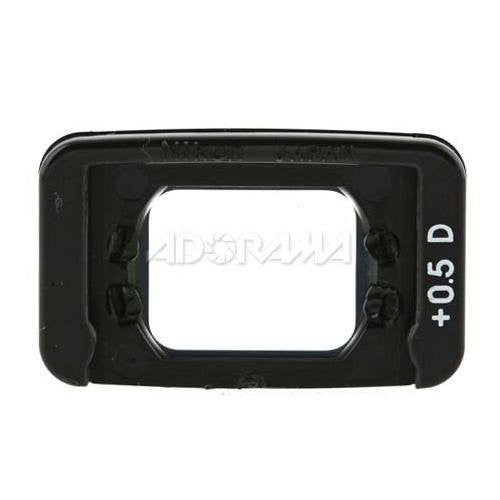

Nikon Diopter +0.5 Correction Eyepiece for Nikon Digital SLR Cameras
$ 16.95 - Sold Out
DK-20C +0.5 Correction Eyepiece - NK2941
This corrective eyepiece fits the viewfinders of the following Nikon DSLRs: D200, D80, D40, D40X, D300, D60, D90.
An easy-to-use viewing and focusing aid which allows near and farsighted photographers to view the finder image accurately without wearing eyeglasses.
Optional Nikon eyepiece diopters allow you to optimize your SLR viewfinder’s sharpness in conjunction with your individual eyesight. Eyepiece diopters are designed for specific camera models and are identified by a plus, a minus or a neutral numeric diopter value.
Nikon SLR cameras (without built-in adjustable eyepiece correction) have a base diopter value of minus one. This is why you won’t find an accessory Nikon eyepiece diopter valued at minus one. Minus one is considered the optimum starting point for the majority of SLR users with normal vision. The combination of the camera’s viewfinder components and a clear (standard) eyepiece form a virtual image of a subject on the camera’s focusing screen that is the approximate equivalent of a viewing distance of one meter.
Neutral correction eyepieces do not replace the supplied standard eyepiece. The use of a neutral correction eyepiece will change the diopter value of the camera from minus one to zero.
Some Nikon SLR Cameras have built-in adjustable eyepiece correction. Please check your instruction manual to see if additional threaded Nikon eyepiece diopters can be combined with your camera’s built-in diopter control. For cameras with built-in diopter control, use additional Nikon eyepiece diopters only if your vision dictates that optimum viewfinder sharpness cannot be achieved with the built-in diopter adjustment control.
Correction lens, +0.5 strength. An easy-to-use viewing and focusing aid which allows near and farsighted photographers to view the finder image accurately without wearing eyeglasses.
Standard eyepieces supplied with Nikon SLR cameras have no corrective value and are for dust protection only. Select eyepieces are supplied with a rubber coating designed to lessen scratching of a photographer’s eyeglasses.
Each Nikon eyepiece diopter incorporates a numerical value, represented by a minus value (near-sighted) or a plus value (farsighted) number, enabling you to select the appropriate diopter for your vision and your camera model. The eyepiece’s diopter value is, when combined with the viewfinder’s minus one value, the end-result value. No combination of the camera’s base value of minus one and a given accessory diopter’s value is required to arrive at the final desired value. In other words, if you require a diopter of plus 3, simply add a plus 3 diopter to your camera.
To determine which Nikon diopter value is best suited for you, visit your ophthalmologist, optometrist or dispensing optician. Ask them to determine your diopter from (your corrective prescription) when viewing an object at distance of approximately one meter. Base your selection on this diopter value.
Select camera models will accept eyepieces from multiple eyepiece families.
