SPECIFICATIONS
MTF CHART
LENS CONSTRUCTION

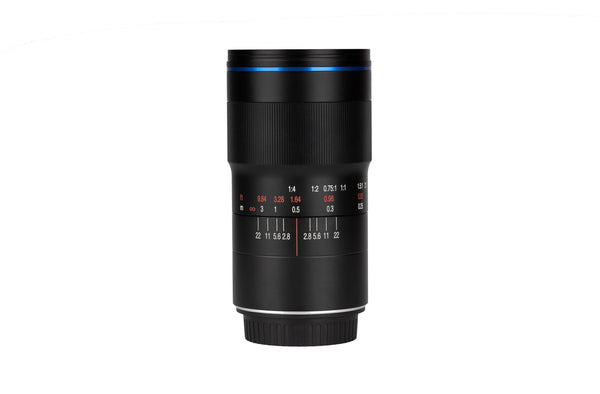

Laowa 100mm f/2.8 2X Ultra Macro APO - Nikon Z
$ 499.00
Laowa 100mm f/2.8 2X Ultra Macro APO - Nikon Z
$ 499.00
Laowa 100mm f/2.8 2X Ultra Macro APO - Nikon Z
Laowa SKU: VE10028NZ | Helix SKU: LWVE10028NZ
Overview
Followed by the success of the Laowa 60mm f/2.8 2:1 Macro, the 100mm f/2.8 2:1 Macro is the 2nd member of Laowa 2:1 macro line-up. It features an apochromatic (APO) characteristic that chromatic aberration at both ‘in-focus’ & ‘out-of-focus’ is both invisible. This new 100mm lens can cover full frame sensor size and focus from 2:1 magnification to infinity. The lens has a similar physical size to other 100mm Macro lenses in the market but its wider magnification range allows macro photographers to capture subjects at any sizes. This 100mm f/2.8 lens can also focus to infinity and serve as a portrait lens with exceptional optics quality.
Only Canon EF version is equipped with a CPU chip and motor for aperture control via the camera. All other mounts are manual and aperture is controlled by the aperture ring on the lens.
2:1 Magnification at the same physical size
Laowa 100mm f/2.8 2:1 Ultra-Macro is the second 2:1 Macro lens that we have (The first one is the 60mm f/2.8). 100mm is one of the most common focal length for macro photography usage. All of the 100mm macro lenses in the market can only reproduce 1:1 magnification (life-size) image only. The extended 2x magnification means more details can be seen through the lens. Photographers can now take advantage of the wider magnification range to capture bugs at different sizes.
Apochromat APO design (invisible CA)
The Laowa 100mm f/2.8 has a Apochromat (APO) design where the chromatic aberration (CA) at BOTH in-focus & out-of-focus area (Longitudinal CA) is controlled to the minimal. CA has long been one of the most annoying aberrations for macro photography and now you can forget about this and focus more on taking a great shot.
Outstanding Portrait lens with crystal sharpness
Laowa 100mm f/2.8 2:1 Ultra Macro APO is not only a exceptionally macro lens. It can also focus to infinity and is a very decent telephoto portrait lens.
Specifications
Specifications
| Lens Mount | Nikon Z-Mount |
| Focal Length | 100mm |
| Lens Format | Full-Frame |
| Maximum Aperture | f/2.8 |
| Maximum Magnification | 2x |
| Macro Reproduction Ratio | 2:1 |
| Field of View | 24.4° |
| Minimum Focusing Distance (2X) | 9.72in (24.7cm) |
| Lens Construction | 12 elements in 10 groups |
| Aperture Blades | 13 |
| Filter Diameter | 67mm |
| Dimensions | 72mm x 155mm |
| Weight | 1.43lbs (650g) |
*Note: Specifications are subject to change
Item Includes
Item Includes:
Front Cap
Rear Cap
ProMaster 2.0x Autofocus Teleconverter - Nikon
$ 289.95
ProMaster 2.0x Autofocus Teleconverter - Nikon
$ 289.95
ProMaster 2.0x Autofocus Teleconverter - Nikon
ProMaster SKU: 8796 | Helix SKU: PR8796
Overview
Today's digital SLRs have more precise requirements than traditional film cameras. The anti-aliasing filter and silicon based CCD and CMOS sensors in digital SLRs are highly reflective. ProMaster's 2.0x Autofocus Teleconverter uses anti-reflection coatings that are specifically formulated to pass light reflected from the anti-aliasing filter and silicon based CCD or CMOS sensor of digital SLRs resulting in better images.
In addition, these converters have been specially tuned to accommodate the more precise specifications required in order to ensure communications compatibility between the digital camera and lens.
Specifications
• 7 elements in 4 groups
• Enhanced digital multi-coated optics
• Records equivalent focal length and aperture values in DSLR EXIF information
Sigma 1.4 X Teleconverter TC-1401 (only for SGV Lenses) (Nikon)
$ 349.00
Sigma 1.4 X Teleconverter TC-1401 (only for SGV Lenses) (Nikon)
$ 349.00
Sigma 1.4 X Teleconverter TC-1401 (only for SGV Lenses) (Nikon) - SM879306
Product Overview
Equipped with 1 SLD (Special Low Dispersion) glass element for maximum image quality, the new Sigma Global Vision teleconverters utilize a splash and dust proof construction for long lasting durability. Created exclusively for the Global Vision lenses, these teleconverters ensure the utmost in compatibility, even for large diameter lenses. With effective AF at F8 and 1.4x the reach, get the most out of your Sigma lens.
| SIGMA TELECONVERTER TC-1401 | |||
| SIGMA | NIKON | CANON | |
| 120-300mm F2.8 DG OS HSM | Sports | AF*1 | AF*2 | AF*3 |
| 150-600mm F5-6.3 DG OS HSM | Sports | AF*4 | AF*4 | AF*4 |
| 150-600mm F5-6.3 DG OS HSM | Contemporary | AF*4 | AF*4 | AF*4 |
Teleconverter TC-1401 is only compatible with the Global Vision lenses listed above.
*1 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.01 or later.
*2 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.02 or later.
*3 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.03 or later.
*4 When SIGMA TELE CONVERTER TC-1401 is attached to cameras that are compatible with AF at F8, it is possible to shoot with AF. In cases where contrast or brightness level of the shooting object is low, it may not focus properly.
Please be advised that the updated version of lens firmware will make it compatible with the new tele converters, however it will also make it incompatible with conventional APO TELE CONVERTER 1.4x EX DG and APO TELE CONVERTER 2x EX DG.
SPECIFICATIONS
Sigma 10-20mm F3.5 EX DC HSM (Nikon)
$ 649.00 - Sold Out
Sigma 10-20mm F3.5 EX DC HSM (Nikon)
$ 649.00 - Sold Out
Sigma 10-20mm F3.5 EX DC HSM (Nikon) - SM202306
Product Overview
With an F3.5 aperture throughout the entire zoom range, the 10-20mm F3.5 is perfect for low light photography. Sigma wide angle lenses accentuate the relationship of subjects within a photo and thus become an important creative tool for photographers. Designed for APS-C DSLRs, this fast fixed aperture lens makes photography easier for the photographer who wishes to precisely control their depth of field and also for working with non TTL Flash systems. Super Multi-layer coating reduces flare and ghosting, four aspherical lenses provide correction for distortion and an inner focusing system eliminates front lens rotation, making it suitable for use of polarizing filters. Perfect for shooting landscape photography, architecture photography, interior photography, photojournalism, wedding photography, group/event photography and more.
SPECIFICATIONS
| Lens Construction | 13 Elements in 10 Groups | ||||||||||
| Angle of View | 102.4° - 63.8° | ||||||||||
| Number of Diaphragm Blades | 7 | ||||||||||
| Minimum Aperture | f22 | ||||||||||
| Minimum Focusing Distance | 24 cm / 9.4 in | ||||||||||
| Filter Size (mm) | 82 | ||||||||||
| Maximum Magnifications | 1:6.6 | ||||||||||
| Dimensions (Diameter x Length) |
87.3 x 88.2 mm/3.4 x 3.5 in | ||||||||||
| Weight | 520g / 18.3oz. | ||||||||||
| Corresponding Mounts |
|
||||||||||
|
HSM - Hyper-Sonic Motor EX - EX Lens DC - DC for Digital Lens Hood: Petal Type |
|||||||||||
MTF CHART
LENS CONSTRUCTION
Sigma 100-400mm F5-6.3 DG OS HSM | C - Nikon
$ 799.00
Sigma 100-400mm F5-6.3 DG OS HSM | C - Nikon
$ 799.00
Sigma 100-400mm F5-6.3 DG OS HSM | C - Nikon
Sigma SKU: 729955 | Helix SKU: SM729955
Overview
The Sigma 100-400mm 5-6.3 DG HSM OS Contemporary is a state-of-the-art telephoto zoom that brings a new level of portability and quality to the super telephoto market. Touting Sigma’s Optical Stabilizer (OS), the Sigma 100-400mm 5-6.3 Contemporary is highly compact and lightweight compared to similar products on the market. A push/pull zooming function and a new Hyper Sonic Motor (HSM) allow for a more responsive approach to photography while a 1:3.8 macro feature can be utilized from up close or from a further distance. Like each and every Global Vision Lens, the Sigma 100-400mm Contemporary is handcrafted at our single factory in Aizu, Japan and undergoes individual evaluation before leaving Sigma’s facility.
-
Full Frame Lens with APS-C compatibility
-
Compact size meets strong image quality
-
Ideal Use: Travel photography, wildlife photography, nature photography and bird photography
Specifications
LENS CONSTRUCTION
SPECIFICATIONS
| Lens Construction | 21 Elements in 15 Groups | ||||||
| Angle of View (35mm) | 24.4º-6.2 º | ||||||
| Number of Diaphragm Blades | 9 | ||||||
| Minimum Aperture | f22 | ||||||
| Minimum Focusing Distance | 160 cm / 63 in | ||||||
| Filter Size (mm) | 67mm | ||||||
| Maximum Magnifications | 1:3.8 | ||||||
| Dimensions (Diameter x Length) |
86.4x182.3mm/ 3.4x7.2in | ||||||
| Weight | 1160g/ 40.9oz. | ||||||
| Corresponding Mounts |
|
||||||
| HSM -Hyper-Sonic Motor DG - DG for Digital Full Frame and APS-C OS - Optical Stabilizer * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||
GEOMETRICAL MTF CHART
DIFFRACTION MTF CHART
EFFECTIVE DISTORTION
RELATIVE DISTORTION
VIGNETTING
Sigma 12-24mm f/4 DG HSM Art (Nikon)
$ 1,599.00
Sigma 12-24mm f/4 DG HSM Art (Nikon)
$ 1,599.00
Sigma 12-24mm f/4 DG HSM Art (Nikon)
Sigma SKU: 205955 | Helix SKU: SM205955
Overview
The Sigma 12-24mm F4 DG HSM Art is a premium full frame wide angle zoom designed to have minimal distortion in its wide angle imagery. Part of the Art line, the Sigma 12-24mm F4 DG HSM Art was created from decades of experience manufacturing wide-angle lenses. FLD glass elements, with performance equal to fluorite, provide for exceptional image quality while an updated Hyper Sonic Motor (HSM) uses 1.3X the torque for quick AF. A constant F4 aperture through the entire zoom range allows for greater ability in low light compared to previous models and the use of the largest aspherical element in the industry controls distortion, ghosting and flaring. An emphasis on edge to edge performance brings stunningly sharp and contrasty images to life. Ideal for many types of photography, the 12-24mm F4 Art is perfect for landscape photography, architecture photography, interior photography and much more.
LENS CONSTRUCTION
SPECIFICATIONS
| Lens Construction | 16 Elements in 11 Groups | ||||||
| Angle of View | 122.0°-84.1° | ||||||
| Number of Diaphragm Blades | 9 (Rounded Diaphragm) | ||||||
| Mininum Aperture | F22 | ||||||
| Minimum Focusing Distance | 24cm* / 9.4in. *At 24mm end of the zoom range | ||||||
| Filter Size (mm) | n/a | ||||||
| Maximum Magnifications | 1:4.9 | ||||||
| Dimensions (Diameter x Length) |
4.0in. × 5.2in. | ||||||
| Weight | 40.6oz | ||||||
| Corresponding Mounts |
|
||||||
|
HSM -Hyper-Sonic Motor * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||
GEOMETRICAL MTF CHART
DIFFRACTION MTF CHART
EFFECTIVE DISTORTION
RELATIVE DISTORTION
VIGNETTING
Sigma 12-24mm F4.5-5.6 II DG ASP-HSM (Nikon)
$ 949.00
Sigma 12-24mm F4.5-5.6 II DG ASP-HSM (Nikon)
$ 949.00
Sigma 12-24mm F4.5-5.6 II DG ASP-HSM (Nikon) - SM204306
Product Overview
The Sigma 12-24mm F4.5-5.6 II DG HSM is a premium wide angle zoom lens designed for full frame DSLRs but will work with APS-C cameras with an effective increase in focal length. Four FLD glass elements (with performance equal to fluorite) and one SLD element (Special Low Dispersion) ensure premium image quality from edge to edge. Three glass mold elements and one hybrid aspherical lens allow for a lightweight and durable construction while the super multi-layer coating reduces flare and ghosting. The Hyper Sonic Motor (HSM) ensures quick, quiet and accurate autofocusing and also features full-time manual focus override.
SPECIFICATIONS
| Lens Construction | 17 Elements in 13 Groups | |||||||||
| Angle of View | 122°-84.1° | |||||||||
| Number of Diaphragm Blades | 6 | |||||||||
| Minimum Aperture | f22 | |||||||||
| Minimum Focusing Distance | 28 cm / 11 in | |||||||||
| Maximum Magnifications | 1:6.4 | |||||||||
| Dimensions (Diameter x Length) |
85x120.2 mm/3.3x4.7 in | |||||||||
| Weight | 670g / 23.6oz. | |||||||||
| Corresponding Mounts |
|
|||||||||
|
HSM - Hyper-Sonic Motor DG - DG for Digital * Nikon mounts do not have an aperture ring. Some functions may not work depending on the camera model. * Nikon mount lenses do not have an aperture ring. Some functions may not work depending on the camera model. * If the camera body does not support HSM, auto focus will not be available. * This lens cannot be used with film SLR cameras with the exception of the Nikon F6 and Canon EOS-1v. * The appearance and specification are subject to change without notice. |
||||||||||
MTF CHART
Chart Guide
LENS CONSTRUCTION

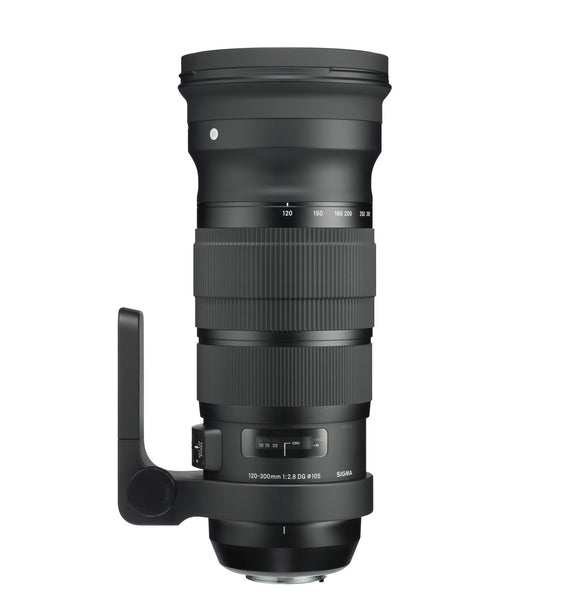

Sigma 120-300mm F2.8 SPORTS DG APO OS HSM (Nikon)
$ 3,599.00
Sigma 120-300mm F2.8 SPORTS DG APO OS HSM (Nikon)
$ 3,599.00
Sigma 120-300mm F2.8 SPORTS DG APO OS HSM (Nikon)
Sigma SKU: 137306 | Helix SKU: SM137306
Overview
The Sigma 120-300 F2.8 DG HSM OS is the first lens introduced into the Sports category for Sigma’s Global Vision. Designed for full frame cameras but can work with APS-C sized sensors as well, the 120-300 F2.8 has a large aperture and versatile focal length, ideal for a wide range of photography. Though placed in the Sports category, the 120-300 F2.8 is also great for nature, automotive, wildlife, and everything in between. Equipped with state of the art technology such as a Hyper Sonic Motor (HSM), an Optical Stabilizer (OS) and Inner Focusing and Zooming, the 120-300 F2.8 ensures sharp and beautiful images. The HSM allows for a quiet, fast, and accurate autofocusing while the OS compensates for camera shake while shooting by hand. Two FLD glass elements, which have performance equal to fluorite, are incorporated with one SLD element to reduce color aberration at the highest degree. The Sports category offers not only a higher level of customization through the Sigma USB dock*, but also has a dust and splash proof design.
| Teleconverter Compatibility Chart | |||
| SIGMA TELECONVERTER TC-1401 | |||
| SIGMA | NIKON | CANON | |
| 120-300mm F2.8 DG OS HSM | Sports | AF*1 | AF*2 | AF*3 |
| SIGMA TELECONVERTER TC-2001 | |||
| SIGMA | NIKON | CANON | |
| 120-300mm F2.8 DG OS HSM | Sports | AF*1 | AF*2 | AF*3 |
Teleconverter TC-1401 is only compatible with the Global Vision lenses listed above.
*1 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.01 or later.
*2 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.02 or later.
*3 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.03 or later.
 |
USB Dock Compatibility Sigma has developed special software (SIGMA Optimization Pro) that can update the lens firmware and adjust parameters such as focus. In addition, the lenses from our Sports line have customizable AF speed, focus limiter and OS function. The “Custom Mode Switch” is the device for further customization on the dedicated lenses. *USB Dock is sold separately. |
 |
SIGMA MOUNT CONVERSION SERVICE Sigma will convert the current mount of your Sigma Global Vision lens to another of your choice. Sigma lenses currently from the Contemporary, Art or Sports line, in Sigma, Canon, Nikon, Sony, Pentax mounts can be converted to Sigma, Canon, Nikon, Sony or Pentax*. They cannot be converted to either an APS-C or a Full Frame format. |
Specifications
| Lens Construction | 23 Elements in 18 Groups | ||||||||
| Angle of View | 20.4º-8.2º | ||||||||
| Number of Diaphragm Blades | 9 | ||||||||
| Minimum Aperture | f22 | ||||||||
| Minimum Focusing Distance | 150cm -250cm cm / 59.1in - 98.4in | ||||||||
| Filter Size (mm) | 105mm | ||||||||
| Maximum Magnifications | 1:8.1 | ||||||||
| Dimensions (Diameter x Length) |
124.4mm x 291mm/4.8in x 11.5in | ||||||||
| Weight | 3,390g / 119.6oz. | ||||||||
| Corresponding Mounts |
|
||||||||
|
HSM -Hyper-Sonic Motor DG - DG for Digital
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
MTF CHART
LENS CONSTRUCTION
Sigma 135mm f1.8 DG HSM Art - Nikon Mount
$ 1,399.00
Sigma 135mm f1.8 DG HSM Art - Nikon Mount
$ 1,399.00
Sigma 135mm f1.8 DG HSM Art - Nikon Mount
Sigma SKU: 240955 | Helix SKU: SM240955
Product Overview
The Sigma 135mm F1.8 DG HSM Art is a medium range telephoto prime lens designed for modern high megapixel DSLRs. A new large Hyper Sonic Motor (HSM) delivers ample torque to the focusing group for outstanding speed, ensuring exceptionally stable performance even at lower speeds. This state-of-the-art prime lens touts a dust and splash proof mount for guaranteed performance in any condition and its large 1.8 aperture allows for more creative control over imagery. A stunning compression effect makes the Sigma 135mm F1.8 Art the ideal portrait lens while its large aperture help with event photography and much more. Like each and every Global Vision Lens, the Sigma 135mm F1.8 DG HSM Art is handcrafted at our single factory in Aizu, Japan and undergoes individual evaluation before leaving Sigma’s facility.
SPECIFICATIONS
| Lens Construction | 13 Elements in 10 Groups | ||||||||
| Angle of View | 18.2º | ||||||||
| Number of Diaphragm Blades | 9 (Rounded) | ||||||||
| Mininum Aperture | f16 | ||||||||
| Minimum Focusing Distance | 87.5 cm / 34.4 in | ||||||||
| Filter Size (mm) | 82mm | ||||||||
| Maximum Magnifications | 1: 5 | ||||||||
| Dimensions (Diameter x Length) |
4.0"x4.5" in | ||||||||
| Weight | 1130g/ 40.2 oz | ||||||||
| Corresponding Mounts |
|
||||||||
|
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||

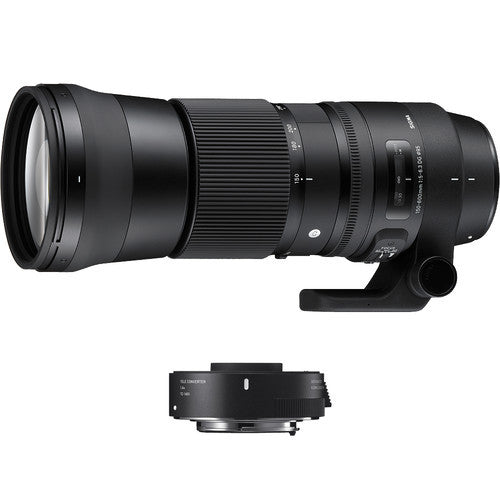

Sigma 150-600mm F5-6.3 CONTEMPORARY DG OS HSM & TC-1401 (Nikon)
$ 1,289.00
Sigma 150-600mm F5-6.3 CONTEMPORARY DG OS HSM & TC-1401 (Nikon)
$ 1,289.00
Sigma 150-600mm F5-6.3 CONTEMPORARY DG OS HSM & TC-1401 (Nikon/Fuji) - SMZB306
PRODUCT DETAIL
The Sigma 150-600mm 5-6.3 DG HSM OS Contemporary was created around the concept of maximum portability meets utmost image quality in a variable aperture hyper-telephoto zoom lens. Light weight and compact, this s zoom can handle any long-reach photographic situation one may encounter. This 150-600mm Contemporary boasts updated Sigma technology such as a quiet and optimized Hyper Sonic Motor (HSM) and a new Optical Stabilizer (OS) with an accelerometer for improved panning photography both vertically and horizontally, essential for birding, wildlife and motor photography. The Sigma 150-600 Contemporary also touts a new zoom lock switch that can be locked at any focal length and a new manual override (MO) switch is incorporated for improved focusing control. Working with the Sigma USB dock, this lens allows for maximum customization such as firmware updates and adjustments to the focus limiter, AF speed and OS view.
| Teleconverter Compatibility Chart | |||
| SIGMA TELECONVERTER TC-1401 | |||
| SIGMA | NIKON | CANON | |
| 150-600mm F5-6.3 DG OS HSM | Contemporary | AF*4 | AF*4 | AF*4 |
| SIGMA TELECONVERTER TC-2001 | |||
| SIGMA | NIKON | CANON | |
| 150-600mm F5-6.3 DG OS HSM | Contemporary | MF | MF | MF |
Teleconverter TC-1401 is only compatible with the Global Vision lenses listed above.
*4 When SIGMA TELE CONVERTER TC-1401 is attached to cameras that are compatible with AF at F8, it is possible to shoot with AF. In cases where contrast or brightness level of the shooting object is low, it may not focus properly.
|
USB DOCK COMPATIBILITY Sigma has developed special software (SIGMA Optimization Pro) that can update the lens firmware and adjust parameters such as focus. In addition, the lenses from our Sports line have customizable AF speed, focus limiter, OS function and full-time manual focus function. The “Custom Mode Switch” is the device for further customization on the dedicated lenses. |
|
SIGMA MOUNT CONVERSION SERVICE Sigma will convert the current mount of your Sigma Global Vision lens to another of your choice. Sigma lenses currently from the Contemporary, Art or Sports line, in Sigma, Canon, Nikon, Sony, Pentax mounts can be converted to Sigma, Canon, Nikon, Sony or Pentax*. They cannot be converted to either an APS-C or a Full Frame format. |
SPECIFICATIONS
| Lens Construction | 20 Elements in 14 Groups | ||||||||
| Angle of View | 16.4º-4.1 º | ||||||||
| Number of Diaphragm Blades | 9 | ||||||||
| Mininum Aperture | f22 | ||||||||
| Minimum Focusing Distance | 280 cm / 110.2 in | ||||||||
| Filter Size (mm) | 95mm | ||||||||
| Maximum Magnifications | 1:5 | ||||||||
| Dimensions (Diameter x Length) |
105x260.1mm/ 4.1x10.2in | ||||||||
| Weight | 1930g/ 68oz. | ||||||||
| Corresponding Mounts |
|
||||||||
|
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
MTF CHART
LENS CONSTRUCTION

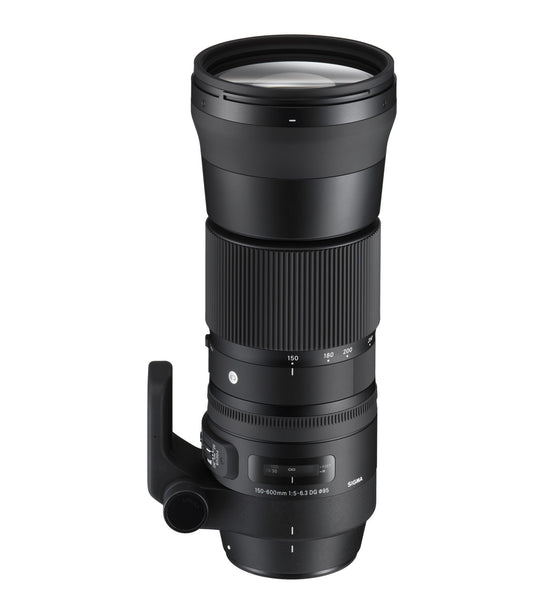

Sigma 150-600mm F5-6.3 CONTEMPORARY DG OS HSM (Nikon)
$ 1,089.00
$ 899.00
Sale
Sigma 150-600mm F5-6.3 CONTEMPORARY DG OS HSM (Nikon)
$ 1,089.00 $ 899.00
Sigma 150-600mm F5-6.3 CONTEMPORARY DG OS HSM (Nikon) - SM745306
PRODUCT DETAIL
The Sigma 150-600mm 5-6.3 DG HSM OS Contemporary was created around the concept of maximum portability meets utmost image quality in a variable aperture hyper-telephoto zoom lens. Light weight and compact, this s zoom can handle any long-reach photographic situation one may encounter. This 150-600mm Contemporary boasts updated Sigma technology such as a quiet and optimized Hyper Sonic Motor (HSM) and a new Optical Stabilizer (OS) with an accelerometer for improved panning photography both vertically and horizontally, essential for birding, wildlife and motor photography. The Sigma 150-600 Contemporary also touts a new zoom lock switch that can be locked at any focal length and a new manual override (MO) switch is incorporated for improved focusing control. Working with the Sigma USB dock, this lens allows for maximum customization such as firmware updates and adjustments to the focus limiter, AF speed and OS view.
| Teleconverter Compatibility Chart | |||
| SIGMA TELECONVERTER TC-1401 | |||
| SIGMA | NIKON | CANON | |
| 150-600mm F5-6.3 DG OS HSM | Contemporary | AF*4 | AF*4 | AF*4 |
| SIGMA TELECONVERTER TC-2001 | |||
| SIGMA | NIKON | CANON | |
| 150-600mm F5-6.3 DG OS HSM | Contemporary | MF | MF | MF |
Teleconverter TC-1401 is only compatible with the Global Vision lenses listed above.
*4 When SIGMA TELE CONVERTER TC-1401 is attached to cameras that are compatible with AF at F8, it is possible to shoot with AF. In cases where contrast or brightness level of the shooting object is low, it may not focus properly.
|
USB DOCK COMPATIBILITY Sigma has developed special software (SIGMA Optimization Pro) that can update the lens firmware and adjust parameters such as focus. In addition, the lenses from our Sports line have customizable AF speed, focus limiter, OS function and full-time manual focus function. The “Custom Mode Switch” is the device for further customization on the dedicated lenses. |
|
SIGMA MOUNT CONVERSION SERVICE Sigma will convert the current mount of your Sigma Global Vision lens to another of your choice. Sigma lenses currently from the Contemporary, Art or Sports line, in Sigma, Canon, Nikon, Sony, Pentax mounts can be converted to Sigma, Canon, Nikon, Sony or Pentax*. They cannot be converted to either an APS-C or a Full Frame format. |
SPECIFICATIONS
| Lens Construction | 20 Elements in 14 Groups | ||||||||
| Angle of View | 16.4º-4.1 º | ||||||||
| Number of Diaphragm Blades | 9 | ||||||||
| Mininum Aperture | f22 | ||||||||
| Minimum Focusing Distance | 280 cm / 110.2 in | ||||||||
| Filter Size (mm) | 95mm | ||||||||
| Maximum Magnifications | 1:5 | ||||||||
| Dimensions (Diameter x Length) |
105x260.1mm/ 4.1x10.2in | ||||||||
| Weight | 1930g/ 68oz. | ||||||||
| Corresponding Mounts |
|
||||||||
|
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
MTF CHART
LENS CONSTRUCTION
Sigma 150-600mm F5-6.3 SPORTS DG OS HSM (Nikon)
$ 1,999.00

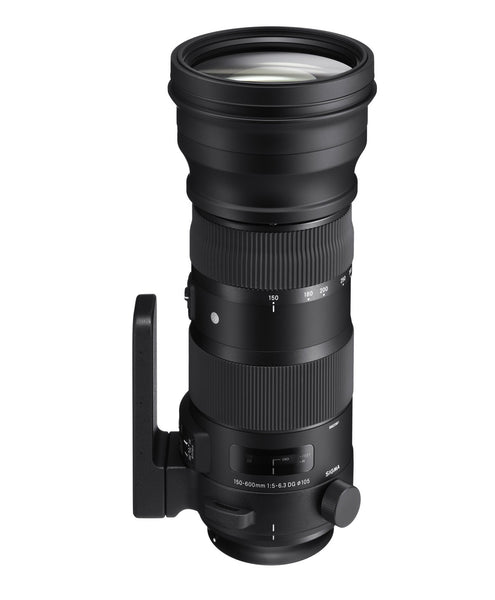

Sigma 150-600mm F5-6.3 SPORTS DG OS HSM (Nikon)
$ 1,999.00
Sigma 150-600mm F5-6.3 SPORTS DG OS HSM (Nikon) - SM740306
PRODUCT DETAILS
Designed and executed for the most demanding types of photography, the Sigma 150-600mm 5-6.3 DG HSM OS Sports lens is the new standard for telephoto zooms. Boasting 2 FLD glass elements (performance equal to fluorite) and 3 SLD glass elements, the new Sigma 150-600mm Sport produces incredibly sharp images y through the entire zoom range. Chromatic aberration is controlled at the long end of the focal length through the optimized design of the glass elements and a dust and splash proof construction ensures a high degree of durability.
An updated optical stabilizer (OS) features an accelerometer for improved panning photography both horizontally and vertically, essential for birding, wildlife and motorsports photography. The Sigma 150-600 Sports also touts a new zoom lock switch that can be locked at any focal length and a new manual override (MO) switch is incorporated as an option which is activated by rotating the focus ring while using the autofocus. This state-of-the-art lens is equipped with advanced Sigma technology including an optimized, quieter AF, water/oil repellent coating on front and rear elements and Mount Conversion service compatibility. As with all Sport line lenses, the Sigma 150-600 works with the Sigma USB dock for maximum customization allowing for firmware updates and adjustments to the focus limiter, AF speed and OS view.
Accelerator sensor enables panning photography both in vertical and horizontal position.
The OS (Optical Stabilizer) function using an accelerator sensor has been incorporated to ensure high accuracy. OS Mode 1 is suitable for general photography, and Mode 2 is ideal for panning shooting for motor sports etc. With Mode 2, the accelerator sensor works effectively to minimize blur while shooting by detecting whether the camera is positioned vertically or horizontally.
*This lens cannot be used on film SLR cameras with the exception of the Nikon F6, Canon EOS-1V.
*Effect of Mode 2 is limited to panning shooting in horizontal direction.
| Teleconverter Compatibility Chart | |||
| SIGMA TELECONVERTER TC-1401 | |||
| SIGMA | NIKON | CANON | |
| 150-600mm F5-6.3 DG OS HSM | Sports | AF*4 | AF*4 | AF*4 |
| SIGMA TELECONVERTER TC-2001 | |||
| SIGMA | NIKON | CANON | |
| 150-600mm F5-6.3 DG OS HSM | Sports | MF | MF | MF |
Teleconverter TC-1401 is only compatible with the Global Vision lenses listed above.
*4 When SIGMA TELE CONVERTER TC-1401 is attached to cameras that are compatible with AF at F8, it is possible to shoot with AF. In cases where contrast or brightness level of the shooting object is low, it may not focus properly.
|
USB DOCK COMPATIBILITY Sigma has developed special software (SIGMA Optimization Pro) that can update the lens firmware and adjust parameters such as focus. In addition, the lenses from our Sports line have customizable AF speed, focus limiter, OS function and full-time manual focus function. The “Custom Mode Switch” is the device for further customization on the dedicated lenses. |
|
SIGMA MOUNT CONVERSION SERVICE Sigma will convert the current mount of your Sigma Global Vision lens to another of your choice. Sigma lenses currently from the Contemporary, Art or Sports line, in Sigma, Canon, Nikon, Sony, Pentax mounts can be converted to Sigma, Canon, Nikon, Sony or Pentax*. They cannot be converted to either an APS-C or a Full Frame format. |
SPECIFICATIONS
| Lens Construction | 24 Elements in 16 Groups | ||||||
| Angle of View | 16.4º-4.1º | ||||||
| Number of Diaphragm Blades | 9 | ||||||
| Mininum Aperture | f22 | ||||||
| Minimum Focusing Distance | 260cm/ 102.4 in | ||||||
| Filter Size (mm) | 105mm | ||||||
| Maximum Magnifications | 1:5 | ||||||
| Dimensions (Diameter x Length) |
121x290.2mm/ 4.8x11.4in | ||||||
| Weight | 2860g/ 100.9oz | ||||||
| Corresponding Mounts |
|
||||||
|
HSM -Hyper-Sonic Motor *This lens cannot be used on film SLR cameras with the exception of the Nikon F6, Canon EOS-1V.
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||
LENS CONSTRUCTION
Sigma 17-50mm F2.8 EX DC OS HSM (Nikon F)
$ 669.00 - Sold Out
Sigma 17-50mm F2.8 EX DC OS HSM (Nikon F)
$ 669.00 - Sold Out
Sigma 17-50mm F2.8 EX DC OS HSM (Nikon) - SM583306
Product Overview
The Sigma 17-50mm F2.8 EX DC OS HSM is a wide to standard zoom lens designed for APS-C DSLRs. Equipped with a Hyper Sonic Motor (HSM) and an Optical Stabilizer (OS), the 17-50mm boasts a large fixed 2.8 aperture throughout the entire zoom range. An OS allows for easier handheld shooting while the HSM ensures quick, accurate and consistent autofocusing. FLD glass elements (with performance equal to fluorite) along with two glass mold elements and one hybrid aspherical lens provide excellent correction of aberrations and allow for incredibly sharp images with great contrast. Super Multi-Layer coating reduces flare and ghosting while the lightweight and compact construction make it a necessary addition to any camera bag.
SPECIFICATIONS
| Lens Construction | 17 Elements in 13 Groups | ||||||||||
| Angle of View | 72.4º-27.9º | ||||||||||
| Number of Diaphragm Blades | 7 | ||||||||||
| Minimum Aperture | f22 | ||||||||||
| Minimum Focusing Distance | 28 cm / 11 in | ||||||||||
| Filter Size (mm) | 77mm | ||||||||||
| Maximum Magnifications | 1:5 | ||||||||||
| Dimensions (Diameter x Length) |
83.5x91.8 mm/3.3x3.6 in | ||||||||||
| Weight | 565g / 19.9oz. | ||||||||||
| Corresponding Mounts |
|
||||||||||
|
OS - Optical Stabilizer Function HSM - Hyper-Sonic Motor EX - EX Lens DC - DC for Digital *Vignetting will occur if the lens is used with digital cameras with image sensors larger than APS-C size or 35mm SLR cameras. * For Pentax mount, if the camera body does not support HSM, auto focus will not be available. * OS function is not available for Sony and Pentax mounts. *The appearance, specifications, and the like of the product may be subject to change for improvement. |
|||||||||||
MTF CHART
LENS CONSTRUCTION
Sigma 17-70mm F2.8-4 CONTEMPORARY DC Macro OS HSM (Nikon)
$ 499.00
Sigma 17-70mm F2.8-4 CONTEMPORARY DC Macro OS HSM (Nikon)
$ 499.00
Sigma 17-70mm F2.8-4 CONTEMPORARY DC Macro OS HSM (Nikon) - SM884306
Product Overview
The 17-70mm F2.8-4 DC Macro HSM OS is the first lens in the Contemporary line of Sigma’s Global Vision. The Sigma 17-70mm F2.8-4 was designed to be the ideal all-purpose lens for APS-C DSLRs. With a versatile focal length and macro capability, the 17-70mm F2.8-4 is also equipped with a Hyper Sonic Motor (HSM) and an Optical Stabilizer (OS) for superior image quality. The HSM ensures quiet, accurate, and fast autofocusing while the OS compensates for camera shake when shooting handheld. The design of the 17-70mm includes state-of-the-art TSC material (Thermally Stable Composite), which allows for a durable construction as well a reduction in size by 30% compared to conventional models. Two FLD glass elements (with performance equal to fluorite) are incorporated along with one SLD element to reduce color aberration at the highest degree and obtain unmatched image quality. The 17-70mm F2.8-4 Macro DC HSM OS is compatible with the Sigma USB dock for an increased level of customization, including firmware updates as well as focus parameter adjustment changes. The perfect all-purpose travel lens, the 17-70mm F2.8 Macro DC HSM OS is a must have for any camera bag.
|
USB Dock Compatibility Sigma has developed special software (SIGMA Optimization Pro) that can update the lens firmware and adjust parameters such as focus. |
*USB Dock is sold separately.
|
SIGMA MOUNT CONVERSION SERVICE Sigma will convert the current mount of your Sigma Global Vision lens to another of your choice. Sigma lenses currently from the Contemporary, Art or Sports line, in Sigma, Canon, Nikon, Sony, Pentax mounts can be converted to Sigma, Canon, Nikon, Sony or Pentax*. They cannot be converted to either an APS-C or a Full Frame format. |
SPECIFICATIONS
| Lens Construction | 16 Elements in 14 Groups | ||||||||
| Angle of View | 79.7-22.9º | ||||||||
| Number of Diaphragm Blades | 7 | ||||||||
| Minimum Aperture | f22 | ||||||||
| Minimum Focusing Distance | 22 cm / 8.6 in | ||||||||
| Filter Size (mm) | 72mm | ||||||||
| Maximum Magnifications | 1:2.9 | ||||||||
| Dimensions (Diameter x Length) |
79mm x 82mm mm/3.1in x 3.2in | ||||||||
| Weight | 465g / 16.4oz | ||||||||
| Corresponding Mounts |
|
||||||||
|
OS - Optical Stabilizer Function *Nikon Mount: Built in motor lens: compatible with D40, D40x, D60, D3000, D5000
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
MTF CHART
LENS CONSTRUCTION
Sigma 18-200mm F3.5-6.3 CONTEMPORARY DC Macro OS HSM (Nikon)
$ 399.00 - Sold Out
Sigma 18-200mm F3.5-6.3 CONTEMPORARY DC Macro OS HSM (Nikon)
$ 399.00 - Sold Out
Sigma 18-200mm F3.5-6.3 CONTEMPORARY DC Macro OS HSM (Nikon) - SM885306
Product Overview
The Sigma 18-200mm 3.5-6.3 DC HSM OS lens is the second addition to the Contemporary line from Sigma’s Global Vision. The Sigma 18-200mm lens was designed for APS-C sensors and features a new matte black finish, thermally stable composite material in its construction and smaller and lighter design then previous models. With exceptional performance, this 18-200mm camera lens does not sacrifice image quality for versatility. Having the ability to shoot from wide angle to telephoto is highly useful particularly for travel photography, landscape photography, street photography, portrait photography and nature photography. An improved minimum focusing distance of 14.7 inches paired with the use of Special Low Dispersion glass, the 18-200mm excels at bringing out great detail in close-up photography as well. A Hyper Sonic Motor (HSM) ensures quiet, accurate and fast autofocus and an optical Stabilizer (OS) helps compensate for camera shake. Make this lens your all-in-one lens to handle any shooting scenario.
|
USB Dock Compatibility Sigma has developed special software (SIGMA Optimization Pro) that can update the lens firmware and adjust parameters such as focus. |
*USB Dock is sold separately.
|
SIGMA MOUNT CONVERSION SERVICE Sigma will convert the current mount of your Sigma Global Vision lens to another of your choice. Sigma lenses currently from the Contemporary, Art or Sports line, in Sigma, Canon, Nikon, Sony, Pentax mounts can be converted to Sigma, Canon, Nikon, Sony or Pentax*. They cannot be converted to either an APS-C or a Full Frame format. |
SPECIFICATIONS
| Lens Construction | 16 Elements in 13 Groups | ||||||||||
| Angle of View | 76.5º-8.1º | ||||||||||
| Number of Diaphragm Blades | 7 (rounded diaphragm) | ||||||||||
| Minimum Aperture | f22 | ||||||||||
| Minimum Focusing Distance | 39 cm / 15.4 in | ||||||||||
| Filter Size (mm) | 62mm | ||||||||||
| Maximum Magnifications | 1:3 | ||||||||||
| Dimensions (Diameter x Length) |
70.7mm x 86mm/2.8in. x 3.4in. | ||||||||||
| Weight | 430g / 15.2oz. | ||||||||||
| Corresponding Mounts |
|
||||||||||
|
HSM -Hyper-Sonic Motor EX - EX Lens DC - DC for Digital *Nikon Mount: Built in motor lens: compatible with D40, D40x, D60, D3000, D5000
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||||
MTF CHART
Diffraction MTF
Geometrical MTF
[[{"fid":"10504","view_mode":"default","type":"media","attributes":{"height":"405","width":"217","border":"0","class":"media-element file-default"}}]]
[[{"fid":"10504","view_mode":"default","type":"media","attributes":{"height":"405","width":"217","border":"0","class":"media-element file-default"}}]]
LENS CONSTRUCTION
Sigma 18-300mm F3.5-6.3 Contemporary DC Macro OS HSM (Nikon)
$ 579.00 - Sold Out
Sigma 18-300mm F3.5-6.3 Contemporary DC Macro OS HSM (Nikon)
$ 579.00 - Sold Out
Sigma 18-300mm F3.5-6.3 Contemporary DC Macro OS HSM (Nikon)
Sigma SKU: 886306 | Helix SKU: SM886306
Overview
The Sigma 18-300mm 3.5-6.3 DC HSM OS Macro is another impressive addition to the Sigma Global Vision Contemporary line. With a 16.6x zoom ratio covering focal lengths from wide to telephoto, this lens also offers a 1:3 macro ratio. The Sigma 18-300mm Contemporary was designed for APS-C cameras where it equates to a 27-450mm lens and incorporates state-of-the-art Sigma technology. An enhanced optical stabilizer (OS) compensates for camera shake, while an optimized hyper sonic motor (HSM) ensures quiet and fast autofocus. Four FLD (performance equal to fluorite) paired with 1 SLD glass elements capture incredible sharp and contrasted images, all the way through the focal length. Utilizing top quality glass, the Sigma 18-300mm Contemporary controls aberration, even at the telephoto end to produce high quality images. Working with the USB dock, this lens allows for firmware updates when available and adjustment of focus parameters.
Close up lens AML72-01 is available as an optional accessory. It offers a maximum magnification ratio 1:2 and changeable angles of view enables zoom-macro photography. Just by rotating the zoom ring, it enables photographers to take a close up pictures of subjects such as jewelry and flowers.
|
USB Dock Compatibility Sigma has developed special software (SIGMA Optimization Pro) that can update the lens firmware and adjust parameters such as focus. |
*USB Dock is sold separately.
|
SIGMA MOUNT CONVERSION SERVICE Sigma will convert the current mount of your Sigma Global Vision lens to another of your choice. Sigma lenses currently from the Contemporary, Art or Sports line, in Sigma, Canon, Nikon, Sony, Pentax mounts can be converted to Sigma, Canon, Nikon, Sony or Pentax*. They cannot be converted to either an APS-C or a Full Frame format. |
SPECIFICATIONS
| Lens Construction | 17 Elements in 13 Groups | ||||||||||
| Angle of View | 76.5º-5.4º | ||||||||||
| Number of Diaphragm Blades | 7 | ||||||||||
| Mininum Aperture | f22 | ||||||||||
| Minimum Focusing Distance | 39 cm / 15.3 in | ||||||||||
| Filter Size (mm) | 72mm | ||||||||||
| Maximum Magnifications | 1:3 | ||||||||||
| Dimensions (Diameter x Length) |
79x101.5mm/ 3.1x4.0 in | ||||||||||
| Weight | 585g / 20.6oz. | ||||||||||
| Corresponding Mounts |
|
||||||||||
|
HSM -Hyper-Sonic Motor OS- Optical Stabilizer DC - DC for Digital
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||||
MTF CHART
Diffraction Chart
Geometrical Chart
LENS CONSTRUCTION
Sigma 18-35mm F1.8 ART DC HSM (Nikon)
$ 799.00
$ 699.00
Sale
Sigma 18-35mm F1.8 ART DC HSM (Nikon)
$ 799.00 $ 699.00
Sigma 18-35mm F1.8 ART DC HSM (Nikon)
Sigma SKU: 210306 | Helix SKU: SM210306
Overview
Truly a revolutionary product, the Sigma 18-35mm 1.8 DC HSM is the first wide-angle to standard zoom lens to achieve a large aperture of 1.8. Designed specifically for APS-C sized sensors, the Sigma 18-35mm 1.8 translates to 27mm-52.5mm on 35mm camera. Tapping into Sigma’s long history of lens innovations, the 18-35mm 1.8 DC HSM incorporates a wide glass molded aspherical lens with Special Low Dispersion (SLD) glass to compensate for aberrations and curvature at the widest angle. Internal focusing and zooming allows for more usability and functionality. The 18-35mm is ideal for landscape photography, portrait photography, still life photography, snap shots, casual photography, and close-ups and the Hyper Sonic Motor (HSM) ensures smooth, fast and accurate autofocusing. The use of Thermally Composite Material (TSC) reduces size and weight but increases accuracy of the lens construction. Its new Global Vision design works features compatibility with the Sigma USB dock for further customization. A 9 blade rounded diaphragm also creates beautiful background blur. The Sigma 18-35mm 1.8 DC HSM is a new benchmark in photographic history and a must have for every camera bag.
Sigma 180mm F2.8 EX APO DG HSM OS Macro (Nikon)
$ 1,699.00
Sigma 180mm F2.8 EX APO DG HSM OS Macro (Nikon)
$ 1,699.00
Sigma 180mm F2.8 EX APO DG HSM OS Macro (Nikon) - SM107306
Product Overview
The APO Macro Sigma 180mm F2.8 EX DG OS HSM is a high performance telephoto macro lens designed for Full Frame sensors but may also be used with smaller APS-C size sensors with a corresponding effective increase in focal length to about 260mm with most cameras. The 180mm F2.8 has a large aperture to handle any lighting scenario and the macro capabilities allow focusing down to 1:1 magnification ratio at its closest working distance of 18.5 inches. A Hyper Sonic Motor (HSM) ensures quiet, high speed, and accurate autofocusing while an Optical Stabilizer (OS) compensates for camera shake when shooting hand held. The 180mm F2.8 macro also incorporates a floating Internal Focusing system which reduces aberration during shooting working together with three FLD ("F" Low Dispersion) glass elements for superior correction of color aberration. This lens has a rounded 9 blade diaphragm creating an attractive blur to the out of focus areas of the image and is also compatible with Sigma APO teleconverters.
SPECIFICATIONS
| Lens Construction | 19 Elements in 14 Groups | ||||||||
| Angle of View | 13.7º | ||||||||
| Number of Diaphragm Blades | 9 | ||||||||
| Minimum Aperture | f22 | ||||||||
| Minimum Focusing Distance | 47 cm / 18.5 in | ||||||||
| Filter Size (mm) | 86mm | ||||||||
| Maximum Magnifications | 1:1 | ||||||||
| Dimensions (Diameter x Length) |
95mm x 203.9 mm/3.7 x 8.0 in | ||||||||
| Weight | 1638g / 57.8oz | ||||||||
| Corresponding Mounts |
|
||||||||
|
OS - Optical Stabilizer Function HSM - Hyper-Sonic Motor EX - EX Lens DG - DG for Digital *Nikon mounts do not have an aperture ring. Some functions may not work depending on the camera model. This lens cannot be used with film SLR cameras with the exception of the Nikon F6 and Canon EOS-1v. *When using the OS function of a lens with a camera which incorporates a stabilizer unit, please turn the camera's stabilizer unit off. * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
MTF CHART
LENS CONSTRUCTION
Sigma 2.0 X Teleconverter EX APO DG (Nikon)
$ 299.00
Sigma 2.0 X Teleconverter EX APO DG (Nikon)
$ 299.00
Sigma 2.0 X Teleconverter EX APO DG (Nikon) - SM867306
Note: Sigma APO Tele Converter 1.4x and 2x are dedicated teleconverter lenses. Due to the high optical quality of this teleconverter, this item will only fit and work with a select list of lenses.
Please refer to the Sigma Teleconverter compatibility chart in the Resources Tab for your lens compatibility.
Sigma 2.0 X Teleconverter TC-2001 (only for SGV Lenses) (Nikon)
$ 399.00
Sigma 2.0 X Teleconverter TC-2001 (only for SGV Lenses) (Nikon)
$ 399.00
Sigma 2.0 X Teleconverter TC-2001 (only for SGV Lenses) (Nikon) - SM870306
Product Overview
Equipped with 2 SLD (Special Low Dispersion) glass element for maximum image quality, the new Sigma Global Vision teleconverters utilize a splash and dust proof construction for long lasting durability. Created exclusively for the Global Vision lenses, these teleconverters ensure the utmost in compatibility, even for large diameter lenses. With effective AF at F8 and 2x the reach, get the most out of your Sigma lens.
| SIGMA TELECONVERTER TC-2001 | |||
| SIGMA | NIKON | CANON | |
| 120-300mm F2.8 DG OS HSM | Sports | AF*1 | AF*2 | AF*3 |
| 150-600mm F5-6.3 DG OS HSM | Sports | MF | MF | MF |
| 150-600mm F5-6.3 DG OS HSM | Contemporary | MF | MF | MF |
Teleconverter TC-1401 is only compatible with the Global Vision lenses listed above.
*1 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.01 or later.
*2 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.02 or later.
*3 It becomes compatible with the new tele converters once the lens firmware is updated to Ver. 1.03 or later.
Please be advised that the updated version of lens firmware will make it compatible with the new tele converters, however it will also make it incompatible with conventional APO TELE CONVERTER 1.4x EX DG and APO TELE CONVERTER 2x EX DG.
SPECIFICATIONS
| Lens Construction | 10 Elements in 5 Groups | ||||||||
| Shooting RAnge and Shooting Ratio | 2.0 times the magnification of the original lens | ||||||||
| Dimensions (Diameter x Length) |
69.8x48.90mm/ 2.7x1.9in | ||||||||
| Weight | 290g/ 10.2oz | ||||||||
| Corresponding Mounts |
|
||||||||
|
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
Sigma 200-500mm F2.8 APO EX DG (Nikon)
$ 25,999.00
Sigma 200-500mm F2.8 APO EX DG (Nikon)
$ 25,999.00
Sigma 200-500mm F2.8 APO EX DG (Nikon)
Sigma SKU: 597306 | Helix SKU: SM597306
Special Order Item
Overview
Sigma’s APO 200-500mm F2.8/400-1000mm F5.6 EX DG, is the first large-aperture ultra telephoto lens to have an F2.8 aperture at 500mm. With its specially designed attachment mounted becomes a 400-1000mm F5.6 ultra telephoto lens capable of auto-focus shooting. It has ELD (Extraordinary Low Dispersion) and SLD (Special Low Dispersion) glass for maximum correction of aberrations. Perfect fast moving nature subjects and sports such as surfing, polo and soccer and as it excels at tracking fast moving objects it is a great surveillance lens. Here, Sigma’s achievement is unsurpassed and stands alone.
SPECIFICATIONS
| Lens Construction | 17 Elements in 13 Groups | ||||||
| Angle of View | 12.3º-5º | ||||||
| Number of Diaphragm Blades | 9 | ||||||
| Minimum Aperture | f22 | ||||||
| Minimum Focusing Distance | 200-500 cm / 78.7-196.9 in | ||||||
| Filter Size (mm) | 72mm | ||||||
| Maximum Magnifications | 1:7.7 | ||||||
| Dimensions (Diameter x Length) |
236.5 x 726 mm/9.3 x 28.6 in | ||||||
| Weight | 15700g / 553.7oz | ||||||
| Corresponding Mounts |
|
||||||
|
APO - Apochromatic EX - EX Lens DG - DG for Digital |
|||||||
MTF CHART
LENS CONSTRUCTION

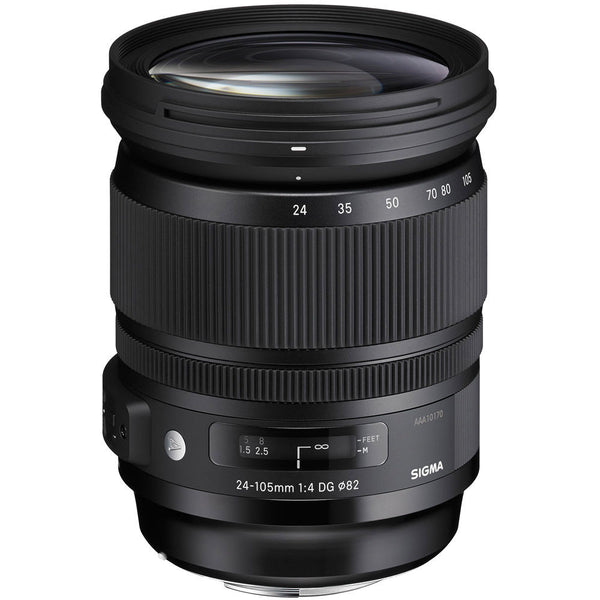

Sigma 24-105mm F4.0 ART DG OS HSM (Nikon)
$ 899.00
$ 849.00
Sale
Sigma 24-105mm F4.0 ART DG OS HSM (Nikon)
$ 899.00 $ 849.00
Sigma 24-105mm F4.0 ART DG OS HSM (Nikon)
Sigma SKU: 635-306 | Helix SKU: SM635306
Product Overview
The Sigma 24-105mm F4 DG OS HSM Art lens is a premium lens designed for full frame cameras and will also work with APS-C sensors with an effective increase in focal length. The 24-105mm F4 is a highly versatile focal range and staple everyday lens. With the increasing resolution power of new sensors, it is designed to bring out the true potential of evolving camera technology. Sigma’s 24-105mm f4 includes proprietary Sigma technology including our Hyper Sonic Motor (HSM) which ensures fast, quiet and accurate autofocusing as well as our Optical Stabilizer (OS) which compensates for camera shake. A 9 blade rounded diaphragm creates beautiful background blur, while FLD and SLD glass elements compensate for various aberrations, distortion and curvature. The use of Thermally Composite Material (TSC) reduces size and weight and as part of the new Global Vision design, it is compatible with the Sigma USB dock for further customization and the new Mount Conversion Service.
 |
USB Dock Compatibility Sigma has developed special software (SIGMA Optimization Pro) that can update the lens firmware and adjust parameters such as focus. |
*USB Dock is sold separately.
|
SIGMA MOUNT CONVERSION SERVICE Sigma will convert the current mount of your Sigma Global Vision lens to another of your choice. Sigma lenses currently from the Contemporary, Art or Sports line, in Sigma, Canon, Nikon, Sony, Pentax mounts can be converted to Sigma, Canon, Nikon, Sony or Pentax*. They cannot be converted to either an APS-C or a Full Frame format. |
SPECIFICATIONS
| Lens Construction | 19 Elements in 14 Groups | ||||||||
| Angle of View | 84.1º-23.3º | ||||||||
| Number of Diaphragm Blades | 9 | ||||||||
| Minimum Aperture | f22 | ||||||||
| Minimum Focusing Distance | 45 cm / 17.7 in | ||||||||
| Filter Size (mm) | 82mm | ||||||||
| Maximum Magnifications | 1:4.6 | ||||||||
| Dimensions (Diameter x Length) |
88.6x109.4 mm/3.5x4.3 in | ||||||||
| Weight | 885g / 31.2oz. | ||||||||
| Corresponding Mounts |
|
||||||||
|
HSM -Hyper-Sonic Motor DG- compatible with both full frame and APS-c size sensor cameras * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
MTF CHART
LENS CONSTRUCTION
Sigma 24-35mm F2.0 ART DG HSM (Nikon)
$ 999.00
Sigma 24-35mm F2.0 ART DG HSM (Nikon)
$ 999.00
Sigma 24-35mm F2.0 ART DG HSM (Nikon)
Sigma SKU: 588955 | Helix SKU: SM588955
Product Overview
The Sigma 24-35mm F2 DG HSM Art is the worlds first full frame F2 zoom lens. Covering a common prime lens lineup, the 24-35mm F2 DG HSM was designed for prime performance with the versatility of a zoom lens. Premium FLD glass, with performance equal to flourite, and seven SLD glass elements allow for outstanding image quality. A large diameter aspherical lens, a complicated element to manufacture, allows for a stunning level of brightness. This complicated optical formula creates outstanding image quality throughout the focal range, and even at the widest of apertures. An updated AF algorithm makes for smooth, accurate and fast autofocusing while multi layer coating control flare and ghosting. The Sigma 24-35mm F2 DG HSM Art is another notch on Sigma’s belt for pure photographic innovation.
SPECIFICATIONS
| Lens Construction | 18 Elements in 13 Groups | ||||||
| Angle of View | 84.1º-63.4º | ||||||
| Number of Diaphragm Blades | 9 (rounded diaphragm) | ||||||
| Minimum Aperture | f16 | ||||||
| Minimum Focusing Distance | 28 cm / 11 in | ||||||
| Filter Size (mm) | 82mm | ||||||
| Maximum Magnifications | 1:4.4 | ||||||
| Dimensions (Diameter x Length) |
87.6x122.7 mm/3.4x4.8 in | ||||||
| Weight | 940g/ 33.2oz | ||||||
| Corresponding Mounts |
|
||||||
|
HSM -Hyper-Sonic Motor DG- Compatible with full frame DSLR as well as APS-C DSLR * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||
Sigma 24-70mm f2.8 DG OS HSM ART (Nikon)
$ 1,299.00
Sigma 24-70mm f2.8 DG OS HSM ART (Nikon)
$ 1,299.00
Sigma 24-70mm f2.8 DG OS HSM ART (Nikon)
Sigma SKU: 576955 | Helix SKU: SM576955
Overview
The Sigma 24-70mm F2.8 DG HSM OS Art is a premium workhorse zoom lens designed for the latest high megapixel DSLRs. A constant aperture of 2.8 through the zoom range makes this a highly versatile tool and a brand new Optical Stabilization (OS) system helps compensate for camera shake. Though a common focal length, the Sigma 24-70mm Art brings a new level of usability and durability featuring a rugged metal barrel and an emphasis on image quality. Building off the experience from the 12-24mm Art, the aspherical elements used in the 24-70mm F2.8 OS Art undergo a highly precise level of polishing, producing elements thicker in the center than on the edges. This process creates stunning image quality and beautiful circular bokeh. Like each and every Global Vision Lens, the Sigma 24-70mm F2.8 DG HSM OS Art is handcrafted at our single factory in Aizu, Japan and undergoes individual evaluation before leaving Sigma’s facility.
Specifications
| Lens Construction | 19 elements in 14 groups | ||||||
| Angle of View (35mm) | 84.1° - 34.3° | ||||||
| Number of Diaphragm Blades | 9 (Rounded diaphragm) | ||||||
| Mininum Aperture | F22 | ||||||
| Minimum Focusing Distance | 37cm / 15in. | ||||||
| Filter Size (mm) | φ82㎜ | ||||||
| Maximum Magnifications | 1:4.3 | ||||||
| Dimensions (Diameter x Length) |
φ88㎜ × 107.6㎜ / 3.5in. x 4.2in. | ||||||
| Weight | 1,020g / 35.9oz. | ||||||
| Corresponding Mounts |
|
||||||
| HSM -Hyper-Sonic Motor DG - DG for Digital Full Frame and APS-C * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||
GEOMETRICAL MTF CHART
DIFFRACTION MTF CHART
EFFECTIVE DISTORTION
RELATIVE DISTORTION
VIGNETTING

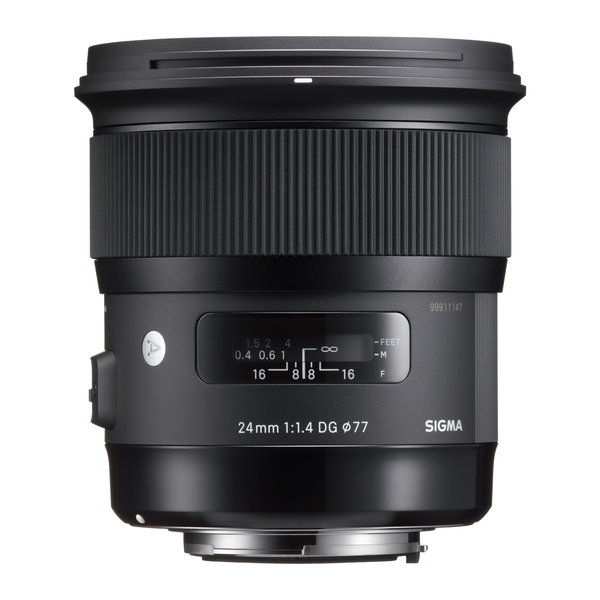

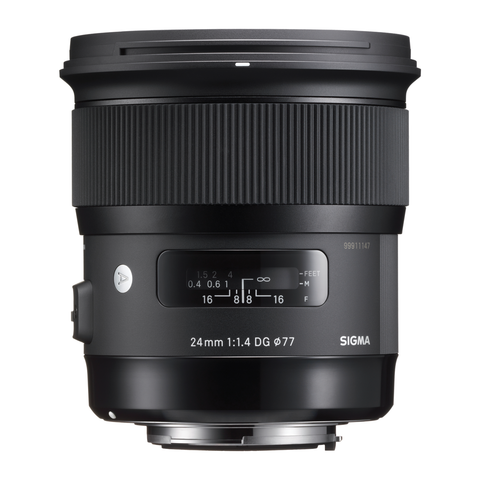

Sigma 24mm F1.4 ART DG HSM (Nikon)
$ 849.00
Sigma 24mm F1.4 ART DG HSM (Nikon)
$ 849.00
Sigma 24mm F1.4 ART DG HSM (Nikon)
Sigma SKU: 401306 | Helix SKU: SM401306
Overview
The Sigma 24mm 1.4 DG HSM Art is a state of the art wide-angle prime lens designed for Full Frame cameras but will work with APS-C sensors as well. Using over 50 years of lens making experience, particularly the knowledge gained from the 35mm 1.4 Art and the 50mm 1.4 Art, the 24mm 1.4 Art is aimed at being the new standard for fast aperture wide angle prime lenses. The latest optical design allows for the utmost in image quality with careful attention paid to edge to edge performance. An optimized power layout places the aspherical lens elements in the rear and adjusts the incidence angle of light source allowing for great performance wide open. Using premium FLD & SLD glass elements, the lens brings aberrations and distortion to a minimum, an issue many wide-angle lenses suffer from. With class leading performance, this lens is ideal for wedding photography, landscape photography, videography, astrophotography, lowlight/indoor photography and event photography. As with all Global Vision lines, the 24mm will be tested using the proprietary “A1” measuring system ensuring the highest standard of operation. The Sigma 24mm Art is compatible with the USB dock to update and customize and is also compatible with the Mount Conversion Service. A staple procedure for the Global Vision lines, every lens will be tested using the proprietary “A1” measuring system.
Specifications
| Lens Construction | 15 Elements in 11 Groups | ||||||||
| Angle of View | 84.1º | ||||||||
| Number of Diaphragm Blades | 9 | ||||||||
| Mininum Aperture | f16 | ||||||||
| Minimum Focusing Distance | 25 cm / 9.8 in | ||||||||
| Filter Size (mm) | 77mm | ||||||||
| Maximum Magnifications | 1:5.3 | ||||||||
| Dimensions (Diameter x Length) |
85mmx90.2mm/ 3.3inx3.6 in | ||||||||
| Weight | 665g / 23.5oz. | ||||||||
| Corresponding Mounts |
|
||||||||
|
HSM -Hyper-Sonic Motor
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
MTF CHART
LENS CONSTRUCTION
Sigma 28mm F1.4 DG HSM I Art Lens - Nikon Mount
$ 799.00
Sigma 28mm F1.4 DG HSM I Art Lens - Nikon Mount
$ 799.00
Sigma 28mm F1.4 DG HSM I Art Lens - Nikon Mount
Sigma SKU: 441955 | Helix SKU: SM441955
Overview
The new Sigma wide-angle model stands out with its thoroughly corrected magnification chromatic aberration and sagittal coma flare, as well as completely minimized distortion thanks to its optical design. It features water- and oil-repellent coating on the front lens element and its overall dust- and splash-proof structure ensures excellent performance even in the most challenging shooting conditions. The high-speed AF, thanks to the HSM (Hyper Sonic Motor) with an updated algorithm, captures the perfect moment instantly. Available in Sigma, Nikon, Canon and Sony E camera mounts, this lens is a great contender for street photography, as well as shooting landscapes and night skies.
- Best-in-class performance
- Dust- and splash-proof structure
- Designed to minimize flare and ghosting
- Designed to meet all shooting conditions
- Compatible with Canon Lens Aberration Correction
- Nikon electromagnetic diaphragm mechanism included
- Manual Override (MO) capable of switching two full-time manual modes
Specifications
LENS CONSTRUCTION
SPECIFICATIONS
| Lens Construction | 17 elements in 12 groups | ||||||||
| Angle of View (35mm) | 75.4° | ||||||||
| Number of Diaphragm Blades | 9 (Rounded diaphragm) | ||||||||
| Mininum Aperture | F16 | ||||||||
| Minimum Focusing Distance | 28cm / 11 in. | ||||||||
| Filter Size (mm) | φ77㎜ | ||||||||
| Maximum Magnifications | 1：5.4 | ||||||||
| Dimensions (Diameter x Length) |
Φ82.8mm × 107.7mm(3.3 in. x 4.2in.) | ||||||||
| Weight | 865g / 30.5oz. | ||||||||
| Corresponding Mounts |
|
||||||||
| HSM -Hyper-Sonic Motor DG - DG for Digital Full Frame and APS-C * The appearance, specifications, and the like of the product are subject to change for improvement without notice. **This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation. |
|||||||||
GEOMETRICAL MTF CHART
DIFFRACTION MTF CHART
EFFECTIVE DISTORTION
RELATIVE DISTORTION
VIGNETTING
Sigma 300-800mm F5.6 EX DG HSM (Nikon)
$ 7,999.00
Sigma 300-800mm F5.6 EX DG HSM (Nikon)
$ 7,999.00
Sigma 300-800mm F5.6 EX DG HSM (Nikon) - SM595306
Product Overview
Sigma’s APO 300-800mm F5.6 EX DG HSM is another unique lens in the line of Sigma offerings. An ultra telephoto as no other camera or lens manufacturer offers the serious photographer! Featuring a constant aperture of F5.6 throughout the entire zoom range, this lens is ideal for photographing wildlife when there is no way of controlling the distance of the animal to the camera. With a simple turn of the zoom ring, the photographer can instantly adjust the composition of the image without moving or disturbing the subject. Similarly, the zoom accommodates sporting photography such as soccer or surfing where the rapidly changing distance of the action requires massive changes in focal length in a matter of seconds. Two SLD (Special Low Dispersion) glass elements provide optimum color correction & sharpness throughout the entire zoom range. At the rear of the lens, a drop in 46mm filter holder is provided so that the photographer can easily add inexpensive color correction or light balancing filters. A perfect lens for surveillance use, its stealth black finish is unobtrusive and easily concealed.
SPECIFICATIONS
| Lens Construction | 18 Elements in 16 Groups | ||||||
| Angle of View | 8.2º-3.1º | ||||||
| Number of Diaphragm Blades | 9 | ||||||
| Minimum Aperture | f32 | ||||||
| Minimum Focusing Distance | 600 cm / 236.2 in | ||||||
| Filter Size (mm) | 46 (Rear) | ||||||
| Maximum Magnifications | 1:6.9 | ||||||
| Dimensions (Diameter x Length) |
156.5x541.5 mm/6.2x21.3 in | ||||||
| Weight | 5870g / 207oz. | ||||||
| Corresponding Mounts |
|
||||||
|
HSM - Hyper-Sonic Motor APO - Apochromatic CONV - APO Teleconverter EX EX - EX Lens DG - DG for Digital D - Distance Information Function * Nikon Mount: Built in motor lens: compatible with D40, D40x, D60, D3000, D5000 * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||
MTF CHART
LENS CONSTRUCTION

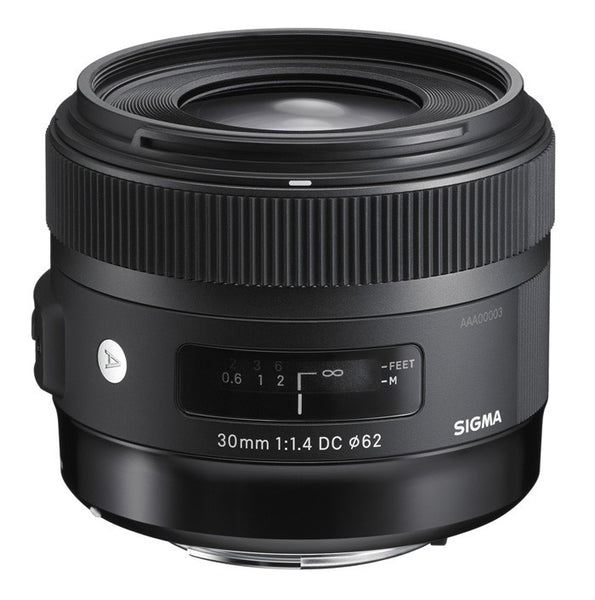

Sigma 30mm F1.4 ART DC HSM (Nikon)
$ 499.00
Sigma 30mm F1.4 ART DC HSM (Nikon)
$ 499.00
Sigma 30mm F1.4 ART DC HSM (Nikon)
Sigma SKU: 301306 | Helix SKU: SM301306
Product Overview
Placed in the Art line, this large-aperture standard lens with an angle of view equivalent to 45mm on a 35mm camera is a superb go-to lens for artistic photography on an APS-C format digital SLR. Offering the bright F1.4 aperture and an angle of view extremely close to that of human vision, this lens is ideal for many different types of photography. Equipped with the latest in lens technology, the 30mm 1.4 lens Art boasts a Hyper Sonic Motor (HSM), Super Multi-Layer Coating and a design featuring Thermally Stable Composite Material (TSC). The HSM ensures quiet, accurate and high-speed autofocus; the Super Multi-Layer Coating reduces flare and ghosting, while the TSC reduces expansion and contraction of the internal lens barrel. A rear focus system prevents focus-dependent variation in aberration, making high-level image quality possible throughout the entire image. With their unchanging barrel length, these lenses also enhance balance and stability for the photographer. An optimized autofocus algorithm achieves smooth focusing while a 9 blade rounded diaphragm creates beautiful bokeh. Under the Global Vision standard, every lens will be tested before shipping using the Sigma A1 MTF system to ensure the highest degree of quality possible and also features capability with the USB dock.
|
USB Dock Compatibility Sigma has developed special software (SIGMA Optimization Pro) that can update the lens firmware and adjust parameters such as focus. |
*USB Dock is sold separately.
|
SIGMA MOUNT CONVERSION SERVICE Sigma will convert the current mount of your Sigma Global Vision lens to another of your choice. Sigma lenses currently from the Contemporary, Art or Sports line, in Sigma, Canon, Nikon, Sony, Pentax mounts can be converted to Sigma, Canon, Nikon, Sony or Pentax*. They cannot be converted to either an APS-C or a Full Frame format. |
SPECIFICATIONS
| Lens Construction | 9 Elements in 8 Groups | ||||||
| Angle of View | 50.7º | ||||||
| Number of Diaphragm Blades | 9 (rounded) | ||||||
| Minimum Aperture | f16 | ||||||
| Minimum Focusing Distance | 30 cm / 11.8 in | ||||||
| Filter Size (mm) | 62mm | ||||||
| Maximum Magnifications | 1:6.8 | ||||||
| Dimensions (Diameter x Length) |
74.2x63.3mm/ 2.9x2.5in | ||||||
| Weight | 435g / 15.3 oz. | ||||||
| Corresponding Mounts |
|
||||||
|
Note: Nikon mount lenses do not have an aperture ring. Lens function may be limited with certain camera bodies. *If the camera body does not support the hypersonic motor of the lens, auto focus will not be available. * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||
MTF CHART
LENS CONSTRUCTION

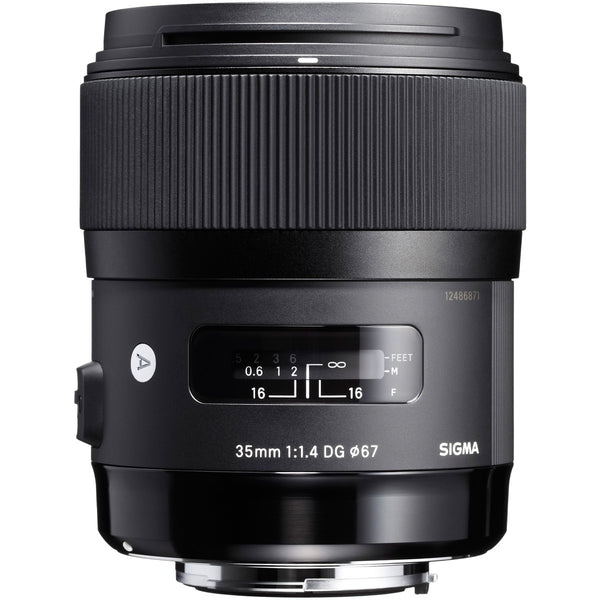

Sigma 35mm F1.4 ART DG HSM (Nikon)
$ 899.00
$ 849.00 - Sold Out
Sale
Sigma 35mm F1.4 ART DG HSM (Nikon)
$ 899.00 $ 849.00 - Sold Out
Sigma 35mm F1.4 ART DG HSM (Nikon)
Sigma SKU: 340306 | Helix SKU: SM340306
Overview
The Sigma 35mm 1.4 DG HSM is a state of the art lens designed for full frame cameras but can also be used with APS-C sensors as well. The first addition to the Art category in Sigma’s Global Vision, the 35mm 1.4 DG HSM includes new features based around a unique lens concept and design. The 35mm is a staple focal length in the world of photography, and paired with Sigma technology, this lens can take artistic expression to the next level. The lens is equipped with technology including a Hyper Sonic Motor (HSM), floating internal focusing system, SLD and FLD Glass elements. The HSM ensures quiet, high speed, accurate autofocusing while the floating focusing system allows for superior optical performance with subjects at a closer shooting distance. The SLD glass elements along with the FLD glass elements, which are equal to fluorite, help correct both axial and chromatic aberration. The large 1.4 aperture make it ideal in low light and the lens is compatible with the Sigma USB dock and Optimization Pro software to adjust and fine tune focusing parameters. The Sigma 35mm 1.4 DG HSM is a must have for any camera bag.
SPECIFICATIONS
| Lens Construction | 13 Elements in 11 Groups | ||||||||||
| Angle of View | 63.4º | ||||||||||
| Number of Diaphragm Blades | 9 | ||||||||||
| Mininum Aperture | f16 | ||||||||||
| Minimum Focusing Distance | 30 cm / 11.8 in | ||||||||||
| Filter Size (mm) | 67mm | ||||||||||
| Maximum Magnifications | 1:5.2 | ||||||||||
| Dimensions (Diameter x Length) |
77mm x 94mm /3in x 3.7in | ||||||||||
| Weight | 665g / 23.5oz. | ||||||||||
| Corresponding Mounts |
|
||||||||||
|
HSM - Hyper-Sonic Motor
* PENTAX SFX and SF7 cannot be used. * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||||
LENS CONSTRUCTION
Sigma 4.5mm F2.8 EX DC HSM Circular Fisheye (Nikon)
$ 899.00
Sigma 4.5mm F2.8 EX DC HSM Circular Fisheye (Nikon)
$ 899.00
Sigma 4.5mm F2.8 EX DC HSM Circular Fisheye (Nikon) - SM486306
Product Overview
Sigma’s 4.5mm F2.8 EX DC Circular Fisheye HSM creates an image that is a circular, curved, distorted view of reality when used on a digital SLR camera. One of the most unusual lenses a photographer can use as it produces a circular image within a black surrounding frame. It is ideal for landscapes and panoramic photography. Because of its equisolid angle projection system, the lens can be used for scientific applications. The minimum focusing distance of 5.3 inches allows the photographer to have fun with placement of subjects extremely near to the camera with distorted backgrounds. SLD (Special Low Dispersion) glass employed for effective compensation of color aberration, Super Multi-Layer lens coating reduces flare and ghosting and assures high image quality throughout the entire focal range. In the hands of a photographer looking for creative expression and the opportunity to explore and create, this is the ultimate creative tool. The results are captivating.
SPECIFICATIONS
| Lens Construction | 13 Elements in 9 Groups | ||||||||
| Angle of View | 180º | ||||||||
| Number of Diaphragm Blades | 6 | ||||||||
| Mininum Aperture | f22 | ||||||||
| Minimum Focusing Distance | 13.5 cm / 5.3 in | ||||||||
| Filter Size (mm) | Insertion-type gelatin filter into rear of the lens | ||||||||
| Maximum Magnifications | 1:6 | ||||||||
| Dimensions (Diameter x Length) |
76.2 x 77.8 mm/3.0 x 3.1 in | ||||||||
| Weight | 470g / 16.6oz. | ||||||||
| Corresponding Mounts |
|
||||||||
|
HSM -Hyper-Sonic Motor EX - EX Lens DC - DC for Digital *Nikon Mount: Built in motor lens: compatible with D40, D40x, D60, D3000, D5000
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
MTF CHART
Chart Guide
LENS CONSTRUCTION

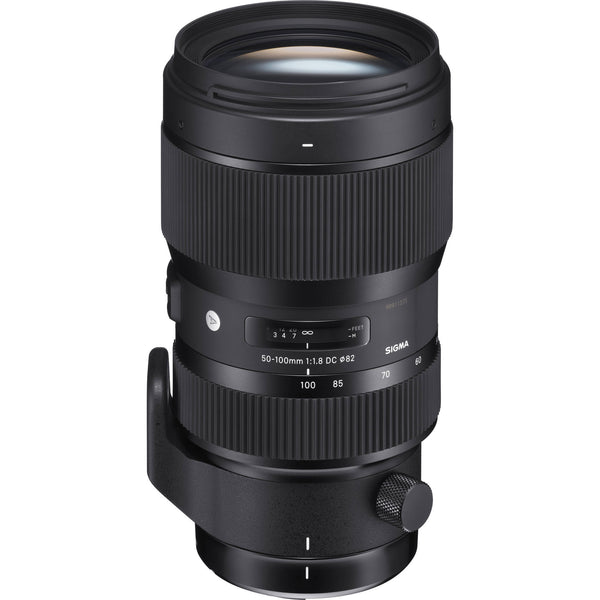

Sigma 50-100mm F1.8 Art DC HSM (Nikon)
$ 1,099.00
$ 999.00
Sale
Sigma 50-100mm F1.8 Art DC HSM (Nikon)
$ 1,099.00 $ 999.00
Sigma 50-100mm F1.8 Art DC HSM (Nikon)
Sigma SKU: 693955 | Helix SKU: SM693955
Product Overview
The Sigma 50-100mm 1.8 DC HSM Art is a premium mid telephoto zoom lens designed for APS-C sized sensors. Part of the Sigma Global Vision Art Line, the 50-100mm 1.8 is the second lens to feature a 1.8 aperture all the way through it focal length and factoring in the APS-C increase, the lens covers a highly useful range of 75-150mm. An enhanced and slimmer Hyper Sonic Motor (HSM) provide fast and accurate autofocus while 3 Premium FLD and 1 SLD Elements produce incredible image sharpness. Like all SGV lenses, each lens is hand crafted in our single factory in Aizu Japan, individually inspected before shipping and work with the Sigma USB Dock to update firmware and focus calibrate.
SPECIFICATIONS
| Lens Construction | 21 Elements in 15 Groups | ||||||||
| Angle of View | 31.7-16.2º | ||||||||
| Number of Diaphragm Blades | 9 (Rounded) | ||||||||
| Mininum Aperture | f16 | ||||||||
| Minimum Focusing Distance | 37.4 in | ||||||||
| Filter Size (mm) | 82mm | ||||||||
| Maximum Magnifications | 1: 6.7 | ||||||||
| Dimensions (Diameter x Length) |
3.7x6.7 in | ||||||||
| Weight | 52.6 oz | ||||||||
| Corresponding Mounts |
|
||||||||
|
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||

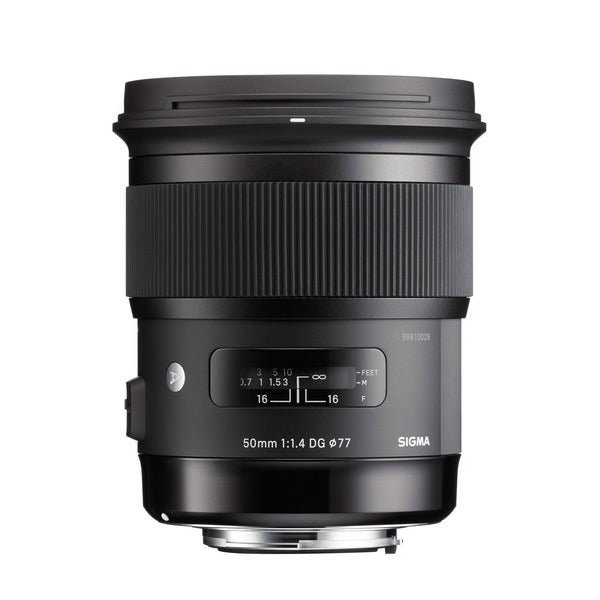

Sigma 50mm F1.4 ART DG HSM (Nikon)
$ 949.00 - Sold Out
Sigma 50mm F1.4 ART DG HSM (Nikon)
$ 949.00 - Sold Out
Sigma 50mm F1.4 ART DG HSM (Nikon)
Sigma SKU: 311306 | Helix SKU: SM311306
Overview
The staple Sigma 50mm 1.4 DG HSM has been redesigned and reengineered to set a new standard for the Art line. With a large 1.4 aperture, the Sigma 50mm 1.4 prime lens is a pro level performer for shooting everything including portrait photography, landscape photography, studio photography and street photography. A Hyper Sonic Motor (HSM) ensures quiet, smooth and accurate autofocusing and paired with Special Low Dispersion (SLD) glass and Super Multi-Layer coating, the 50mm 1.4 is a high performance lens for the modern DSLR sensors. 13 elements in 8 groups allow for unsurpassed performance even at wide apertures and close-up photography is easily managed with a minimum focusing distance of 40cm. The Sigma 50mm 1.4 lens is the new exceptional standard, standard prime.
SPECIFICATIONS
| Lens Construction | 13 Elements in 8 Groups | ||||||||
| Angle of View | 46.8º | ||||||||
| Number of Diaphragm Blades | 9 | ||||||||
| Mininum Aperture | f16 | ||||||||
| Minimum Focusing Distance | 40 cm / 15.7 in | ||||||||
| Filter Size (mm) | 77mm | ||||||||
| Maximum Magnifications | 1: 5.6 | ||||||||
| Dimensions (Diameter x Length) |
3.4 x 3.9 in | ||||||||
| Weight | 815g/ 28.7 oz | ||||||||
| Corresponding Mounts |
|
||||||||
|
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
MTF CHART
Diffraction Chart
Geometrical Chart
LENS CONSTRUCTION
Sigma 60-600mm F4.5-6.3 DG OS HSM | S - Nikon
$ 1,999.00
Sigma 60-600mm F4.5-6.3 DG OS HSM | S - Nikon
$ 1,999.00
Sigma 60-600mm F4.5-6.3 DG OS HSM | S - Nikon
Sigma SKU: 730955 | Helix SKU: SM730955
Overview
The Sigma 60-600mm F4.5-6.3 DG OS HSM Sports is the world’s first 10x optical zoom telephoto lens with a tele end of 600mm. Incorporating 25 elements in 19 groups, excellent and consistent image quality can be achieved throughout the entire zoom range. This lens’ intelligent OS featuring the latest algorithm delivers an image stabilization effect of 4 stops. Its optical design ensures maximum correction of magnification chromatic aberration encountered in hyper-telephoto shooting. This offers both high resolution and consistent edge-to-edge performance throughout the entire zoom range. In addition, when shooting at the focal length of 200mm, the Sigma 60-600mm F4.5-6.3 DG OS HSM Sports can also be used for telephoto macro photography, with a maximum magnification ratio of 1:3.3, thanks to its high rendering performance. Its multi-material build, which incorporates magnesium among other components, ensures durability and enhances portability, allowing for comfortable handling of the 10x zoom lens. The zooming mechanism has been engineered to make both smooth rotation and straight zoom possible. Versatile and robust, the new Sigma hyper-telephoto zoom lens is available in Sigma, Canon and Nikon mounts.
INCORPORATING MULTI-MATERIAL TO
ACHIEVE BOTH PORTABILITY AND DURABILITY
To achieve comfortable handling required for a 10x zoom lens while maintaining high optical quality, the SIGMA 60-600mm F4.5-6.3 DG OS HSM | Sports incorporates multi-material, such as magnesium, CFRP*3, and TSC*4 . The use of these superior materials in the right place reduces the weight of the overall lens to enhance portability and ensure durability.
- *3 Carbon fiber reinforced plastic, a light but strong material used in the interior and exterior fittings of aircraft, among many other applications.
- *4 Thermally Stable Composite (TSC) offers thermal expansion characteristics similar to those of aluminum. Since parts made with TSC expand and contract less due to changes in temperature, they tend to perform better under extreme conditions and help maintain the performance of the lens. TSC also offers outstanding elasticity. Compared to polycarbonate containing 20% glass, TSC offers approximately 70% higher elasticity. Compared to polycarbonate containing 30% glass, it offers 25% higher elasticity. (Comparison is between SIGMA-produced components.)
-
water- and oil-repellent coating
Forefront and rear lenses incorporate a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
-
Dust-proof and splash-proof construction
This lens features a highly effective dust- and splash-proof structure with special sealing at the mount connection, manual focus ring, zoom ring,
-
and cover connection, allowing photographers to work in all types of weather.
-
Intelligent OS
This lens incorporates Intelligent OS*1 adopting the latest algorithm to deliver an image stabilization effect of 4 stops*2.
- horizontally, vertically, or diagonally—regardless of the position of the lens.
- Based on CIPA guidelines (Measured in 600mm with a 35mm full-size image sensor)
-
High-speed AF
The HSM (Hyper Sonic Motor) ensures high speed and quiet AF.
FLEXIBLE ADJUSTMENT
-
Tripod socket
Tripod socket with high usability
- With 90° click stops
- Replaceable lens foot
- Compatible with Arca Swiss tpe clamps
Specifications
LENS CONSTRUCTION
SPECIFICATIONS
| Lens Construction | 25 Elements in 19 Groups | ||||||||
| Angle of View | 39.6º- 4.1º | ||||||||
| Number of Diaphragm Blades | 9 | ||||||||
| Mininum Aperture | F22-F32 | ||||||||
| Minimum Focusing Distance | 60-260cm / 23.6-102.4in.｜ | ||||||||
| Filter Size (mm) | 105mm | ||||||||
| Maximum Magnifications | 1:3.3 (200mm) | ||||||||
| Dimensions (Diameter x Length) |
ø120.4mm x 268.9mm/ ø4.7in. x 10.6in. | ||||||||
| Weight | 2,700g / 95.2oz. | ||||||||
| Corresponding Mounts |
|
||||||||
| HSM -Hyper-Sonic Motor DG- compatible with both full frame and APS-c size sensor cameras * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
DIFFRACTION MTF CHART
GEOMETRICAL MTF CHART
EFFECTIVE DISTORTION
RELATIVE DISTORTION
VIGNETTING
Sigma 70-200mm F2.8 Sports DG OS HSM - Nikon
$ 1,499.00
$ 1,379.00 - Sold Out
Sale
Sigma 70-200mm F2.8 Sports DG OS HSM - Nikon
$ 1,499.00 $ 1,379.00 - Sold Out
Sigma 70-200mm F2.8 Sports DG OS HSM - Nikon
Sigma SKU: 590955 | Helix SKU: SM590955
Overview
One of the most anticipated lenses from the Sigma Global Vision line, the Sigma 70-200mm F2.8 DG OS HSM Sports is the new flagship large-aperture telephoto zoom lens that meets the most stringent needs of professional photographers. Robust yet lightweight, the lens’ magnesium body ensures high mobility and its dust- and splash-proof structure together with the water- and oil-repellent coating on the front element ensure safe use even in the most challenging shooting conditions. It also incorporates Intelligent OS with an acceleration sensor and the latest algorithm capable of panning in all directions. The lens’ optical design, incorporating 10 exclusive low-dispersion glass elements, allows for extremely high resolution, from the center to the corners. By optimizing spherical aberration, a smooth and natural bokeh effect is achieved when using the Sigma 70-200mm F2.8 DG OS HSM Sports for portrait photography. The versatility of this lens is demonstrated in various customization options via an AF Function button either through the camera body or Sigma USB Dock. The newest F2.8 large-aperture zoom lens from Sigma comes in Sigma, Canon and Nikon mounts.
-
water- and oil-repellent coatingForefront and rear lenses incorporate a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
-
dust- and splash-proof structure
This lens features a highly effective dust- and splash-proof structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection, allowing photographers to work in all types of weather.
-
Intelligent OS
This lens incorporates Intelligent OS* adopting the latest algorithm to deliver an image stabilization
* horizontally, vertically, or diagonally—regardless of the position of the lens.
Magnesium alloy barrel
-
To help minimize the weight associated with a hyper telephoto lens, the lens barrel is made with a magnesium alloy. Both lightweight and tough, this alloy contributes to the outstanding maneuverability of SIGMA 500mm F4 DG HSM | Sports.
Specifications
SPECIFICATIONS
| Lens Construction | 24 Elements in 22 Groups | ||||||||
| Angle of View | 34.3º-12.3º | ||||||||
| Number of Diaphragm Blades | 11 | ||||||||
| Mininum Aperture | F22 | ||||||||
| Minimum Focusing Distance | 120cm - 47.2in | ||||||||
| Filter Size (mm) | 82mm | ||||||||
| Maximum Magnifications | 1:4.8 | ||||||||
| Dimensions (Diameter x Length) |
ø94.2mm x 202.9mm / ø 3.7in. x 8.0in. | ||||||||
| Weight | 1,805g / 63.7oz. | ||||||||
| Corresponding Mounts |
|
||||||||
| HSM -Hyper-Sonic Motor DG- compatible with both full frame and APS-c size sensor cameras * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
LENS CONSTRUCTION
DIFFRACTION MTF CHART
GEOMETRICAL MTF CHART
EFFECTIVE DISTORTION
RELATIVE DISTORTION
VIGNETTING
Item Includes
Sigma 800mm F5.6 EX APO DG HSM (Nikon)
$ 6,599.00
Sigma 800mm F5.6 EX APO DG HSM (Nikon)
$ 6,599.00
Sigma 800mm F5.6 EX APO DG HSM (Nikon) - SM152306
Product Overview
The Sigma 800mm F5.6 EX APO DG HSM is a ultra telephoto zoom designed for Full Frame Sensors but may also be used with smaller APS-C size sensors with a corresponding effective increase in focal length to about 1200 with most cameras. A Hyper Sonic Motor (HSM) ensures quiet, high speed and accurate autofocusing while Super Multi-Layer Coating reduces flare and ghosting. Two ELD (Extraordinary Low Dispersion) glass elements provide optimum color correction and sharpness throughout the entire zoom range. A new multi-layer lens coating technology and lens design formula reduces flare and ghosting. Rear insertion 46mm filters with provision for easy rotation of polarizing filters. Compatible with the Sigma’s APO dedicated Tele converter 1.4x and 2x to provide additional focal length as a 1120mm F8 MF or 1600mm F11MF lens respectively. The Sigma 800mm F5.6 is a superb lens for sports and wildlife photography.
SPECIFICATIONS
| Lens Construction | 12 Elements in 9 Groups | ||||||||
| Angle of View | 3.1º | ||||||||
| Number of Diaphragm Blades | 9 | ||||||||
| Minimum Aperture | f32 | ||||||||
| Minimum Focusing Distance | 700 cm / 275.6 in | ||||||||
| Filter Size (mm) | 46mm (rear drop in filter) | ||||||||
| Maximum Magnifications | 1:8.8 | ||||||||
| Dimensions (Diameter x Length) |
156.5mm x 521mm / 6.2in. x 20.5in. | ||||||||
| Weight | 4,900g / 172.8oz. | ||||||||
| Corresponding Mounts |
|
||||||||
|
HSM -Hyper-Sonic Motor EX - EX Lens DC - DC for Digital *Nikon Mount: Built in motor lens: compatible with D40, D40x, D60, D3000, D5000
* The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||||
LENS CONSTRUCTION

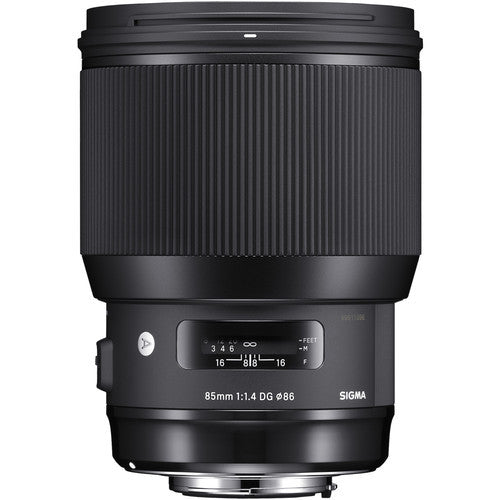

Sigma 85mm F1.4 DG HSM Art (Nikon)
$ 1,199.00
$ 1,099.00
Sale
Sigma 85mm F1.4 DG HSM Art (Nikon)
$ 1,199.00 $ 1,099.00
Sigma 85mm F1.4 DG HSM Art (Nikon)
Sigma SKU: 321955 | Helix SKU: SM321955
Overview
The Sigma 85mm 1.4 DG HSM Art is the latest addition to the world renowned Sigma Global Vision Line. Designed and engineered for unparalleled image quality, the Sigma 85mm 1.4 Art employs a completely new optical design and premium components. 2 FLD (performance equal to fluorite) glass elements and 1 element boasting a high rate of anomalous partial dispersion and high refraction achieve a class leading level of performance. The highly anticipated 85mm 1.4 Art is an ideal lens for a variety of photographic subjects, particularly portrait photography, both in-studio and on-location. The newly updated Hyper Sonic Motor (HSM) allows for 1.3X the torque of previous generations for fast and efficient autofocus. Through rigorous testing, the Sigma 85mm 1.4 Art ushers in a new era of quality and performance for this popular fast prime focal length. A 9 blade rounded diaphragm creates beautiful background bokeh to isolate and accentuate the subject. Full Time manual focus can be engaged by rotating the focusing ring, even when shooting continuous autofocus and a state-of-the-art electronic diaphragm is included for lenses in the Nikon mount.
SPECIFICATIONS
| Lens Construction | 14 Elements in 12 Groups | ||||||
| Angle of View | 28.6º | ||||||
| Number of Diaphragm Blades | 9 (Rounded Diaphragm) | ||||||
| Mininum Aperture | f16 | ||||||
| Minimum Focusing Distance | 85 cm / 33.5in. | ||||||
| Filter Size (mm) | 86mm | ||||||
| Maximum Magnifications | 1:8.5 | ||||||
| Dimensions (Diameter x Length) |
94.7mmx126.2mm / 3.7in. x 5.0in. | ||||||
| Weight | TBD | ||||||
| Corresponding Mounts |
|
||||||
|
HSM -Hyper-Sonic Motor * The appearance, specifications, and the like of the product are subject to change for improvement without notice. |
|||||||
MTF CHART
Diffraction MTF
Geometrical MTF
LENS CONSTRUCTION

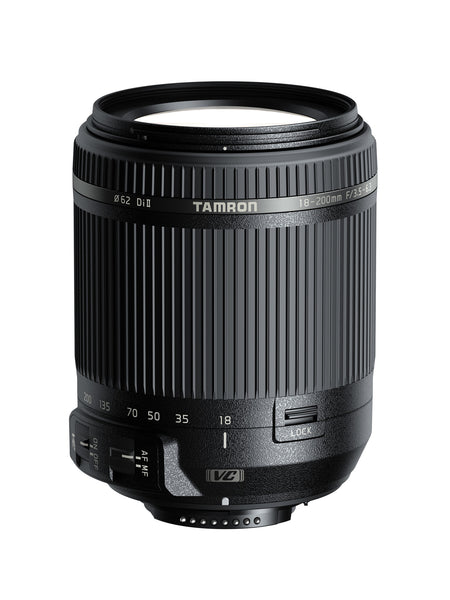

Tamron 18-200mm F3.5-6.3 Di II VC - Nikon F
$ 249.00
Tamron 18-200mm F3.5-6.3 Di II VC - Nikon F
$ 249.00
Tamron 18-200mm F3.5-6.3 Di II VC - Nikon Mount
Tamron SKU: AFB018N-700 | Helix SKU: TRAFB018N700
Overview
Covering Focal Lengths from 18 to 200mm, this compact zoom can take great shots in a myriad of situations
Tamron introduces a lens made for capturing everyday life and special occasions with a smile. The 18-200mm VC is the culmination of our persistent efforts to perfect the high-power zoom lens category since 1992. This innovative lens is lightweight, high quality and ideal as a beginner's first interchangeable lens - or a casual user's only lens.
World's Lightest at 400g (14.1oz)
Comfortable to carry-even all day.
New High-Performance AF Drive Module
A newly designed autofocus drive module with optimal DC motor-gear train integration makes AFfaster, quieter and more precise.
Frame shots instantly-no need to change lenses
Covers the zoom range you need for everyday shots, providing the flexibility to take group photos in tight spaces or make distant subjects appear closer-alll with just one lens.
VC (Vibration Compensation) for sharp handheld shooting
Shoot handheld in situations where others need a tripod. Telephoto and night shots are prone to camera shake, but VC works to keep photos sharp and clear.
|
Di-II lenses are performance-engineered expressly for digital SLR cameras with image sensors commonly referred to as APS-C, measuring approximately 24mm x 16mm. |
Specifications
| Model | B018 |
| Lens Construction (Groups/Elements) | 14/16 |
| Angle of View | 75°33'-7°59' |
| Diaphragm Blade Number | 7 |
| Minimum Aperture | F/22-40 |
| Minimum Object Distance | 18mm: 19.7in 35mm: 30.3in 180mm: 19.3in 200mm: 19.7in |
| Macro Magnification Ratio | 1:4 (at f=200mm MFD 0.5m) |
| Filter Diameter | ø62 |
| Weight | 400g (14.1oz) |
| Diameter | ø75mm |
| Length |
for Canon: 96.6mm (3.8in) |
| Accessory | Flower-shaped Lens hood |
| Mount | Canon, Nikon, Sony A mount |
Tamron 18-270mm F/3.5-6.3 Di II VC PZD Lens - Nikon Mount
$ 349.00
Tamron 18-270mm F/3.5-6.3 Di II VC PZD Lens - Nikon Mount
$ 349.00
Tamron 18-270mm F/3.5-6.3 Di II VC PZD Lens - Nikon Mount
Tamron SKU: AFB008TSN-700 | Helix SKU: TRAFB008TSN700
Overview
All that potential, in the palm of your hand. The light and compact lens packs a 15x zoom punch.
In addition to being a compact and lightweight lens with 15x magnification, the Tamron 18-270mm high-power zoom lens boasts the PZD (Piezo Drive) internal autofocus drive, a standing wave ultrasonic motor system. Agile performance is virtually guaranteed with an unshakeable VC (Vibration Compensation). All that, and with a Φ62mm filter diameter and weighing in at 450g, this lens is the cumulation of uncompromising research and development to make a lightweight, compact, all-in-one super zoom lens. The trailblazing PZD delivers smooth, quick autofocus. Combined with VC, this is a winning partnership delivering clear, stable shots even in low light or at the telephoto end. Easing your ability to capture clean, clear images of high resolution. The result: express yourself without limits. Whether you are toting it to a casual picnic or an off-road mountain biking expedition, we have engineered a high-powered zoom lens that's not only versatile but also light and compact.
A lightweight, compact lens with a high 15x zoom ratio
From wide to telephoto, this 15x high-power zoom lens covers a vast focal range and comes in a light, compact package. At the telephoto end, the 18-270mm is ideal for sports shots or when using distance to capture wildlife in habitat or natural expressions on subjects who normally would be overly conscious of the camera. Whether on vacation or in your own back yard, the wide end gives you the tools to shoot expansive landscapes. Every angle for photographic expression is all in one lens that delivers sharp, clear photos.
The lens construction comprises 13 groups and 16 elements. Use of the hybrid aspherical lens with low dispersion glass has helped achieve a compact design and improved optical performance. Also, Tamron's unique PZD autofocus drive and the VC mechanism is contributing to downsizing.
Super smooth and accurate PZD
The PZD piezoelectric drive is an internal standing wave ultrasonic motor system. Innovations to reduce parts and simplify operation also contributed to the lens's reduced size and weight. Lighter and smaller than other autofocus drives, the piezoelectric drive uses a standing wave, instead of the traditional traveling wave, to turn and extend the piezoelectric element. Thus the entire element moves in a standing wave pattern, moving the metal tip (the contact surface) in an elliptic motion. The friction of this movement moves the rotor for a smooth, precise autofocus.
VC (Vibration Compensation) is Tamron's proprietary image stabilization system. It employs three driving coils that electromagnetically activate a shake-compensating VC lens group. Since the VC lens elements are held in place only by three ceramic ball bearings, there is smooth movement with little friction. Even when shooting long-range or under low light, the viewfinder image remains stable and tracking response is excellent.
Minimum object distance of 0.49m (19.3 in) with macro capability 1:3.8
The minimum object distance is 0.49m (19.3 in) through the entire zoom range and with a macro capability of 1:3.8 allows you to enjoy serious, high-quality macro photography with unaccustomed convenience. With an optical system designed exclusively for optimum performance on DSLR cameras with APS-C size image sensors, the angular coverage range of this lens is impressive. And even though it has built-in VC, it still delivers a close minimum focus across the entire zoom range. From macro to telephoto this is a lens worthy of your creativity. Light, compact, smooth, and accurate at every angle.
* APS-C size image sensors are smaller than the 35mm film format. This lens can produce full-screen images of almost the same scale (approx. 3.15 in x approx. 2.17 in) as those taken with a 35mm format camera with a lens of maximum zoom ratio of 1:2.5.
Cleaner, crisper images without flare or ghosting
The BBAR (Broad-Band Anti-Reflection) coatings reduce the lens reflection and dispersion that cause ghosting and flare. The coatings enhance light transmission in both the short and long wavelength ranges, ensuring excellent performance in all photographic conditions. Additionally, internal surface coatings are applied to cemented surfaces of all lens elements to deliver sharp, high-contrast images and flawless color reproduction.
Equipped with Fluorine Coating for protection and safe cleaning
The front surface of the lens element is coated with a protective Fluorine Coating that is water- and oil-repellant. The lens surface is easier to wipe clean and is less vulnerable to the damaging effects of dirt, dust, moisture and fingerprints.
Specifications
| Model | B008TS |
|---|---|
| Focal Length | 18-270mm |
| Maximum Aperture | F/3.5-6.3 |
| Angle of View (diagonal) | 75゜33' - 5゜55' (for APS-C format) |
| Optical Construction | 16 elements in 13 groups |
| Minimum Object Distance | 0.49m (19.3in) |
| Maximum. Magnification Ratio | 1 : 3.8 (at f=270mm) |
| Filter Size | Φ62mm |
| Maximum Diameter | Φ74.4mm |
| Length* |
88mm (3.5 in) Nikon |
| Weight | 450g (15.9 oz) |
| Aperture Blades | 7 |
| Minimum Aperture | F/22-40 |
| Standard Accessories | Flower-shaped lens hood, Lens caps |
| Compatible Mounts | Nikon |
Specifications, appearance, functionality, etc. may be changed without prior notice.
* Length is the distance from the front tip of the lens to the lens mount face.
Tamron 18-400mm F/3.5-6.3 Di II VC HLD - Nikon F
$ 649.00 - Sold Out
Tamron 18-400mm F/3.5-6.3 Di II VC HLD - Nikon F
$ 649.00 - Sold Out
Tamron 18-400mm F/3.5-6.3 Di II VC HLD - Nikon Mount
Tamron SKU: AFB028N-700 | Helix SKU: TRAFB028N700
Overview
The power of ultra-telephoto. The versatility of all-in-one. Powerful performance that exceeds your imagination. Introducing the world’s first ultra-telephoto all-in-one zoom with a 22.2X zoom range. Now you can shoot everything from vast landscapes to details of a bird with a single lens. The latest optical design includes a complex series of elements including LD (Low Dispersion) glass and an aspherical lens. Problems like chromatic aberration and distortion are controlled throughout the entire zoom range, resulting in sharp, superior images—whether you’re shooting at wide-angle or telephoto. Capture thrilling close-up action in a snap.
• World’s first 22.2x ultra-telephoto all-in-one zoom lens
• 620mm full-frame equivalent telephoto reach
• VC for confident telephoto shooting
• HLD means quick, accurate and quiet autofocus
• 1:2.9 Max. Mag. Ratio for versatile close-up capability
• Moisture-Resistant Construction
• Compatible with TAMRON TAP-in Console™, an optional accessory product.
Specifications
Model Name B028
Filter Diameter Ø72mm
Focal Length 18-400mm
Maximum Diameter 3.1 in.
Format size Di II Length* 4.8 in.
Maximum Aperture F/3.5-6.3
Minimum Aperture F/22
Diaphragm Blades 9 (circular diaphragm)
Diagonal Angle of View 34°21' - 12°21' (for full frame format cameras)
Image Stabilization Performance** 3.5 stops 22°33' - 7°59' (for APS-C format cameras)
Standard Accessory Hood and caps
Lens Construction 16 elements, 11 groups
Minimum Focus Distance 17.7 in.
Compatible Mount Canon, Nikon
Max. Mag. Ratio 1:2.9
Weight* 25.6 oz.
Tamron Nikon SP 70-300mm F/4-5.6 Di VC USD w/ hood AFA005NII700
$ 429.00
Tamron Nikon SP 70-300mm F/4-5.6 Di VC USD w/ hood AFA005NII700
$ 429.00
Tamron Nikon SP 70-300mm F/4-5.6 Di VC USD w/ hood
This premium, state-of-the-art, telephoto zoom lens is the culmination of decades of outstanding innovation in ultra-long-range zoom optics by Tamron. It provides professional and enthusiast users of full-frame and APS-C format digital SLR cameras with the ultimate in image quality and handling in the telephoto zoom class.
Built to exacting SP (Superior Performance) standards, it delivers ultra-high resolution across the image field at all focal lengths, along with the first-ever USD (Ultrasonic Silent Drive) for extraordinary auto-focusing speed and responsiveness.
To assure razor sharp imaging when shooting handheld, the SP 70-300mm incorporates VC (Vibration Compensation), Tamron's exclusive low-friction tri-axial image stabilization system acclaimed for its unsurpassed anti-shake performance.
- Filter Diameter: 62mm
- Length: 142.7mm (5.6 in)
- Weight: 765g (27.0 oz.)
- Minimum Focus Distance: 1.5m (59.0 in)
Tamron SP 15-30mm f/2.8 Di VC USD G2 - Nikon Mount
$ 1,299.00 - Sold Out
Tamron SP 15-30mm f/2.8 Di VC USD G2 - Nikon Mount
$ 1,299.00 - Sold Out
Tamron SP 15-30mm f/2.8 Di VC USD G2 - Nikon Mount
Tamron SKU: AFA041N-700 | Helix SKU: TRAFA041N700
Overview
Ultra-optimized optics create yet another incredible image
The SP 15-30mm F/2.8 Di VC USD G2 (Model A041) is a high-speed ultra-wide-angle zoom lens with ultimate image quality that lets you capture all you see.
By utilizing specialty glass materials and aspherical lens elements in the new Model A041, Tamron’s engineers have further minimized the distortion and lateral chromatic aberration that can be an issue with wide-angle shooting. The lens also has triple lens coatings consisting of the newly developed AX (Anti-reflection eXpand) Coating, plus eBAND (Extended Bandwidth & Angular-Dependency) and BBAR (Broad-Band Anti-Reflection) Coatings, which all combine to provide sharp and clear images even in peripheral areas. The Model A041 lens features high precision AF technology and a powerful VC (Vibration Compensation) mechanism. A rear filter holder (for Canon EF-mount only) comes as a standard feature, making the use of filters much easier. As well as Moisture-Resistant Construction, wide-ranging features such as Fluorine Coating newly developed enhancing durability, make it possible to shoot under any type of shooting circumstances.
Tamron upgrades its legendary ultra-wide-angle zoom lens
The SP 15-30mm F/2.8 Di VC USD (Model A012) is a high-quality F/2.8 ultra-wide-angle zoom lens for use with full-frame DSLR cameras that has been lauded by photography enthusiasts throughout the world. To further enhance this legacy of high-quality optics, new functions have been added to create the next generation model, the SP 15-30mm F/2.8 Di VC USD G2 (Model A041) . Incorporating an XGM (eXpanded Glass Molded Aspherical) lens element as well as multiple LD (Low Dispersion) lens elements provides high definition images throughout the entire zoom range.
The newly developed AX Coating enables sharp images
A new revolutionary AX (Anti-reflection eXpand) Coating is accomplished through Tamron's proprietary deposition technology that addresses the difficulty of applying uniformed coating using existing technology. Now the coating can be applied uniformly edge to edge, even if the convex surface has a strong curvature. As a result, the reflectance and color rendition at the peripheral part of the element is the same as the center. The new AX Coating, which is especially effective for wide-angle lenses that tend to let in harmful light from peripheral areas, effectively minimizes ghosting and provides outstanding uniform image clarity.
A great AF performance and image stabilization bring out the lens’s optical performance
In order to engage the full optical performance of the lens, it is essential to control the slightest blur and precise focusing. In this respect, the lens applies a Dual MPU (Micro-Processing Unit), which includes two dedicated MPUs, one for lens system control including AF, and the other for vibration compensation processing. AF speed and precision have been enhanced and image stabilization has been vastly improved, reaching 4.5 stops* according to CIPA standards. Even for handheld shooting, the blur that often arises in low-light conditions is effectively controlled.
* CIPA Standard Compliant. For Canon: EOS-5D MKIII is used. For Nikon: D810 is used.
High precision AF lets you take steady shots
The AF drive uses proprietary Tamron technology, USD (Ultrasonic Silent Drive) providing high torque, response, and silent operation. Manual focus adjustments can be made on the fly with the lens’s Full-time Manual Focus Override system.
The VC mechanism provides powerful support for handheld shooting
The Model A041 has an improved VC (Vibration Compensation) mechanism with vastly better image stabilization performance from the previous Model A012, reaching 4.5 stops according to CIPA standards. This enables sharper images over a wide range of photographic situations, including indoor and outdoor shots as well as landscape photography at stopped-down aperture settings.
New Fluorine Coating for improved durability
The durability of the front element coating is greatly improved with the development of new Fluorine Coating. With the new fluorine compound that has excellent water- and oil-repellent properties, the lens surface is much easier to wipe clean and less vulnerable to damaging effects of dirt, dust, moisture, and fingerprints, and enabling your important lenses to be continually protected on a long-time basis.
The F/2.8 G2 with VC trinity is completed
The SP 15-30mm F/2.8 Di VC USD G2 (Model A041) integrates engineering with human touch design, aiming at intuitive operability, while still emphasizing minute details and texture. The lens is more user-friendly because of innovations including a new switch box design, an improved distant-scale window, and the precision and stability of the metallic mount.
Now three of high-speed zoom lens with VC, SP 15-30mm F/2.8 Di VC USD G2 (Model A041), SP 24-70mm F/2.8 Di VC USD G2 (Model A032) and SP 70-200mm F/2.8 Di VC USD G2 (Model A025), are reborn as Generation 2, providing you with the feeling of luxury and operation unique to the human touch design.
Specifications
Specifications
| Model | A041 |
|---|---|
| Focal Length | 15-30mm |
| Maximum Aperture | F/2.8 |
| Angle of View (diagonal) |
110°32'-71°35' (for full-frame DSLR cameras) 85°52'-49°54' (for APS-C format DSLR cameras) |
| Optical Construction | 18 elements in 13 groups |
| Minimum Object Distance | 0.28m (11 in) Full zoom range |
| Maximum Magnification Ratio | 1:5 (f=30mm) |
| Filter Size | N/A* |
| Maximum Diameter | Φ98.4mm |
| Length** | 145mm Canon (5.7 in) 142.5mm Nikon (5.6 in) |
| Weight | 1,110g Canon (39.2 oz) 1,100g Nikon (38.8 oz) |
| Aperture Blades | 9 (circular diaphragm)*** |
| Minumum Aperture | F/22 |
| Image Stabilization Performance | 4.5 Stops (TELE) (CIPA Standards Compliant) For Canon: EOS-5D MKIII is used For Nikon: D810 is used |
| Standard Accessory | Integrated flower-shaped hood, Lens caps (push-on front, rear) |
| Compatible Mounts |
Canon EF mount, Nikon |
* A rear filter holder is available for Canon mount.
** Length is the distance from the front tip of the lens to the lens mount face.
*** The circular diaphragm stays almost perfectly circular up to two stops down from maximum aperture.
Specifications, appearance, functionality, etc. may be changed without prior notice.
Release Date
September 21, 2018 (Nikon)
October 12, 2018 (Canon)
Tamron SP 150-600mm f5-6.3 Di VC USD G2 Nikon Mount
$ 1,399.00 - Sold Out
Tamron SP 150-600mm f5-6.3 Di VC USD G2 Nikon Mount
$ 1,399.00 - Sold Out
Tamron SP 150-600mm f5-6.3 Di VC USD G2 Nikon Mount
Tamron SKU: AFA022N-700 | Helix SKU: TRAFA022N700
Overview
The SP 150-600mm G2 (Generation 2) ultra-telephoto lens with upgraded optical performance enables handheld shooting with remarkable definition. This new lens builds upon the success of the current SP 150-600mm (Model A011) which Tamron first introduced in December, 2013, including better overall optical performance and faster AF speed, VC enhancements, plus Fluorine Coating, FLEX ZOOM LOCK and tele converter.
Rebuilt from the ground up to meet Tamron’s strict quality standards and design specifications, this new zoom combines smart engineering and high performance with quality craftsmanship, durability and user friendliness.
The SP 150-600mm G2 includes three LD (Low Dispersion) lens elements which completely eliminate axial and transverse chromatic aberrations. It also features upgraded optical construction (21 elements in 13 groups).
Anti-reflection technologies, eBAND (Extended Bandwidth & Angular-Dependency) Coating and BBAR (Broad-Band Anti-Reflection) Coating improve light transmission and suppress internal reflections, including light reflected off the camera’s image sensors. So even when taking a backlit or semi-backlit photograph, ghosting and flare caused by reflected light are fully eliminated.
Additional enhancements expand the lens’ versatility. For example, MOD (Minimum Object Distance) has been reduced to 2.2m (86.6 in) so you can enjoy tele-macro photography and dramatic bokeh.
The Model A022 is equipped with the USD (Ultrasonic Silent Drive) ring-type motor that delivers excellent responsiveness and control. AF speed is significantly improved from current model, and it enables accurate high-speed focus even when capturing moving subjects.
When shooting with AF, the Full-time Manual Focus override allows you to instantly make fine focusing adjustments manually, without having to switch between modes.
The VC (Vibration Compensation) effectiveness is equivalent to 4.5 stops, based on image stabilization performance levels established by CIPA (Camera & Imaging Products Association) when using in VC MODE 3. Model A022 now has three types of VC modes, and it is possible to choose the optimum VC mode according to the situation for taking a photograph, such as when wishing to pan the camera.
The improved VC minimizes blurring caused by slight camera movement, which is prevalent with long telephoto lenses and even more troublesome with higher-resolution cameras. VC enhances the freedom of hand-held shooting at slower shutter speeds required by low-light conditions such as dusk.
VC MODE 1 is the standard mode that strikes a great balance between the stability of the viewfinder image and the stabilization effects.
VC MODE 2 is exclusively used for panning.
VC MODE 3 prioritizes the stabilization of the captured images and forgoes the stabilization of the viewfinder image.
With the optional accessory TAMRON TAP-in Console™, you can custom the configuration of VC MODE 1. Choose the viewfinder view of either Standard or viewfinder image priority.
FLEX ZOOM LOCK mechanism quickly locks or unlocks the zoom at any position simply by sliding the zoom ring. Photographers can shoot from any angle without the zoom extending unintentionally. Additionally, the customary Zoom Lock switch prevents unwanted barrel extension during transportation.
This design philosophy in pursuit of functional beauty with a “Human Touch” is applied even to minute details for the SP 150-600mm G2 ultra-telephoto lens as well.
The design includes the front portion of the lens composed of curved surfaces that comfortably fit in the palm of a photographer’s hand, the focus ring and zoom ring with the groove width optimized to improve user-friendliness, the focus limiter switch allowing for easy operation, the easy-to-hold grip compatible with the Arca-Swiss type quick release system, and other features. The lens hood with smooth curves that fit the lens barrel has a design that allows for its easy attachment and removal. While using metal as the exterior material and adding numerous new functions such as the FLEX ZOOM LOCK mechanism, the SP 150-600mm G2 achieves a size and weight making comfortable handheld shooting possible, with a slim and stylish appearance design to top it all off.
Two exclusive tele converters, which match the optics of the new SP 150-600mm G2, offer 1.4x and 2.0x magnification, and provide a maximum zoom range up to 1200mm. These new tele converters extend focal length of the master lens, making it possible to take pictures in farther ultra-telephoto ranges.
Specifications
| Model | A022 |
|---|---|
| Focal Length | 150-600mm |
| Maximum Aperture | F/5-6.3 |
| Angle of View (diagonal) | 16°25' - 4°8' (for full-frame format) 10°38' - 2°40' (for APS-C format) |
| Optical Construction | 21 elements in 13 groups |
| Minimum Object Distance | 2.2m (86.6 in) |
| Maximum Magnification Ratio | 1:3.9 |
| Filter Size | φ95mm |
| Maximum Diameter | φ108.4mm |
| Length* | 260.2mm (10.2 in) Canon 257.7mm (10.1 in) Nikon 259.7mm (10.2 in) Sony |
| Weight** | 2,010g (70.9 oz) Canon 1,990g (70.2 oz) Nikon 1,955g (69 oz) Sony |
| Aperture Blades | 9 (circular diaphragm)*** |
| Minimum Aperture | F/32-40 |
| Image Stabilization Performance | 4.5 stops (CIPA Standards Compliant) Using in VC MODE 3 For Canon: 5D-MKIII is used / For Nikon: D810 is used |
| Standard Accessories | Lens hood, Lens caps, Lens pouch |
| Compatible Mounts | Canon, Nikon, Sony**** |
Specifications, appearance, functionality, etc. are subject to change without prior notice.
* Length is the distance from the front tip of the lens to the lens mount face.
** Weight includes the weight of detachable tripod mount.
*** The circular diaphragm stays almost perfectly circular up to two stops down from maximum aperture.
**** Sony mount model without VC.
Tamron SP 17-50mm F/2.8 Di II LD Aspherical (IF) - Nikon F
$ 499.00
Tamron SP 17-50mm F/2.8 Di II LD Aspherical (IF) - Nikon F
$ 499.00
Tamron Nikon SP 17-50mm F/2.8 Di II LD Aspherical (IF) w/ hood
Di II: Lenses are designed for exclusive use on digital cameras with smaller-size imagers and inherit all of the benefits of our Di products. These lenses are not designed for 35mm film cameras and digital cameras with image sensors larger than 24mm x 16mm.
The SP AF17-50mm F/2.8 is a lightweight, compact, fast standard zoom lens designed exclusively for digital SLR cameras, expanding the product concept of the popular SP AF28-75mm F/2.8 zoom lens.
In addition, portrait shots are made beautiful with the natural out-of-focus effect characteristic provided by the fast F/2.8 aperture. Additionally, a broader photographic expression through the use of faster shutter speeds as a result of the maximum aperture offers enhanced photographic pleasure. The lens boasts one of the best close-up shooting performances in the class of fast standard zoom lenses designed exclusively for digital cameras and featuring an F/2.8 maximum aperture throughout the entire zoom range, to ensure stress-free photographic shots at all focal lengths and distances.
The Tamron SP 17-50mm f/2.8 DI-II LD is commonly used for General purpose, Low light, Portraits and more.The Tamron SP 17-50mm f/2.8 DI-II LD is most used by customers who consider themselves to be a Enthusiast among others.The Tamron SP 17-50mm f/2.8 DI-II LD is popular because customers like the following qualities of the Tamron SP 17-50mm f/2.8 DI-II LD: Consistent output, Easily interchangeable, Fast / accurate auto-focus, Lightweight and Strong construction
Tamron SP 17-50mm F/2.8 XR Di II VC LD Aspherical (IF) - Nikon
$ 649.00
Tamron SP 17-50mm F/2.8 XR Di II VC LD Aspherical (IF) - Nikon
$ 649.00
Tamron SP 17-50mm F/2.8 XR Di II VC LD Aspherical (IF) - Nikon
Tamron SKU: AFB005NII-700 | Helix SKU: TRAFB005NII700
Overview
Tamron's SP AF17-50mm F/2.8 XR Di II VC LD Aspherical [IF] (Model B005) is a high speed f/2.8 wide-to-moderate-telephoto zoom lens designed exclusively for Canon and Nikon-mount digital SLR cameras with smaller sensors and now features Tamron’s proprietary tri-axial Vibration Compensation (VC) mechanism that minimizes the effects of handheld camera shake. The new SP 17-50mm F/2.8 XR Di II VC covers the very popular 17-50mm focal length range (equivalent to 26-78mm in the full-frame 35mm format) making it extremely versatile. Its wide aperture and outstanding performance provide practical advantages in low-light shooting and aesthetic image control, thereby enriching the user’s range of creative expression. The new lens delivers impressive sharpness and striking contrast over its entire focal-length and aperture range, and at its maximum aperture of f/2.8 it produces beautiful images enhanced by shallow depth of- field, and smooth, natural transitions in out-of-focus areas of the image (i.e. excellent bokeh.) The new lens is equipped with Tamron’s proprietary Vibration Compensation (VC) image stabilization mechanism, which controls the effects of camera shake in three planes. VC provides more opportunities for sharp hand-held photography (up to 4-stops) at the slow shutter speeds needed when shooting in low-light conditions (e.g. night or indoor scenes) dramatically enhancing the user’s level of photographic freedom. Sample Images Awards
Depth of Field Tool: This tool shows the correlation between depth of field and focusing distance as well as the aperture and focal length. Try it.
Find the Right Lens: With this tool you can compare the focal length of various Tamron Autofocus lenses. Try it.
Specifications
- Lens Construction (Groups/Elements) 14/19
- Angle of View 78°45'-31°11' (APS-C size equivalent)
- Type of Zooming Rotation Diaphragm Blade Number 7 (Circular apertures)
- Minimum Aperture F/32
- Minimum Focus Distance 11.4in.(0.29m)
- Macro Magnification Ratio 1:4.8
- Filter Diameter ø72
- Accessory Flower-shaped Lens hood
Approximate Dimensions:
- Diameter: 3.13"
- Length: 3.7"
Approximate Weight:
- Unit: 1.26 lbs
- Shipping: 3 lbs
Tamron SP 24-70mm F/2.8 Di VC USD G2 - Nikon Mount
$ 1,199.00 - Sold Out
Tamron SP 24-70mm F/2.8 Di VC USD G2 - Nikon Mount
$ 1,199.00 - Sold Out
Tamron SP 24-70mm F/2.8 Di VC USD G2 - Nikon Mount
Tamron SKU: A032N-700 | Helix SKU: TRAFA032N700
Overview
Meet Tamron's next generation high performance fast zoom that achieves top-level image quality and performance. Equipped with a new Dual MPU (Micro Processing Units), the lens provides excellent focusing speed with the highest vibration compensation performance of any lens in its class at 5 stops (CIPA-rated). Other new features include e-Band coating for maximum suppression of ghosting and flare, fluorine coating, and new lens hood release lock. And it's compatible with the TAP-in Console. Your world never looked this beautiful.
- Sophisticated design delivers superb performance and ultra-high image quality
- eBAND Coating reduces flare and ghosting
- High performance MPU for AF dramatically improves autofocusing accuracy and speed
- Dedicated MPU delivers the highest image stabilization in class at 5 CIPA-rated stops
- New VC Auto Detect mode 2 for panning
- Fluorine Coating and Moisture-Resistant Construction
- New Built-in Lens Hood Lock to avoid accidental misalignment of hood
- Compatible with TAMRON TAP-in Console™, an optional accessory product
Tamron SP 28-75mm F/2.8 XR Di LD Aspherical (IF) - Nikon
$ 499.00
Tamron SP 28-75mm F/2.8 XR Di LD Aspherical (IF) - Nikon
$ 499.00
Tamron SP 28-75mm F/2.8 XR Di LD Aspherical (IF) - Nikon
Tamron SKU: AF09NII-700 | Helix SKU: TRAF09NII700
Overview
The Tamron 28-75mm is commonly used for General purpose, Landscape/scenery, Low light, Macro photography, Night photography, Portraits, Sports/action, Travel, Weddings and more.The Tamron 28-75mm is most used by customers who consider themselves to be a Enthusiast, Photo enthusiast, Pro photographer, Semi-professional, Semi-pro photographer among others.The Tamron 28-75mm is popular because customers like the following qualities of the Tamron 28-75mm: Consistent output, Durable, Easily interchangeable, Easy to clean, Fast / accurate auto-focus, Lightweight, Nice bokeh, Rugged and Strong construction.
Specifications
Focal Length: 28-75mm (42-112.5mm on DX)
Aperture Maximum: f/2.8
Aperture Minimum: f/32
Camera Mount: Nikon F
Angle of View: 75° - 32°
Minimum Focus Distance: 1.08' (33 cm)
Magnification: 0.256x
Maximum Reproduction Ratio: 1:4
Elements/Groups: 16/14
Diaphragm Blades: 7
Tamron SP 35mm F/1.8 Di VC USD - Nikon F
$ 599.00 - Sold Out
Tamron SP 35mm F/1.8 Di VC USD - Nikon F
$ 599.00 - Sold Out
Tamron SP 35mm f/1.8 Di VC USD - Nikon F
Tamron SKU: AFF012N-700 | Helix SKU: TRAFF012N700
Overview
F/1.8 Full Aperture/ VC (Vibration Compensation) Integration/ Ultrasonic Silent Drive (USD)/ Molded Glass Aspherical Elements/ LD (Low Dispersion) Glass And XLD (eXtra Low Dispersion) Glass/ eBAND And BBAR Coating/ Circular Aperture/ Optimal Relative Illumination/ Fluorine Coating/ Moisture-Resistant Construction/ 67mm Filter Size/ 80.4mm Maximum Diameter/ 35mm Focal Length/ Black Finish
Specifications
Specifications
| Model | F012 |
|---|---|
| Focal Length | 35mm |
| Maximum Aperture | F/1.8 |
| Angle of View (diagonal) | 63°26’ for full-frame format 43°29’ for APS-C format |
| Optical Construction | 10 elements in 9 groups |
| Minimum Object Distance | 0.2m (7.9 in) |
| Maximum Magnification Ratio | 1:2.5 |
| Filter Size | Φ67mm |
| Maximum Diameter | Φ80.4mm |
| Length* | 80.8mm (3.2 in) Canon 78.3mm (3.1 in) Nikon |
| Weight | 480g (16.9 oz) Canon 450g (15.9 oz) Nikon |
| Aperture Blades | 9 (circular diaphragm**) |
| Minimum Aperture | F/16 |
| Image Stabilization Performance | 3.0 Stops (CIPA Standards Compliant) For Canon : EOS-5D MarkIII is used / For Nikon : D610 is used |
| Standard Accessories | Flower-shaped lens hood, Lens caps |
| Compatible Mounts | Canon, Nikon, Sony*** |
| Available Firmware updates |
Specifications, appearance, functionality, etc. are subject to change without prior notice.
* Length is the distance from the front tip of the lens to the lens mount face.
** The circular diaphragm stays almost perfectly circular up to two stops down from maximum aperture.
*** Sony mount model without VC.
Release Date
September 29th, 2015 (Canon, Nikon)
Sony mount released at a later date
Tamron SP 70-200mm F/2.8 Di VC USD G2 - Nikon F
$ 1,299.00
Tamron SP 70-200mm F/2.8 Di VC USD G2 - Nikon F
$ 1,299.00
Tamron SP 70-200mm F/2.8 Di VC USD G2 - Nikon Mount
Tamron SKU: AFA025N700 | Helix SKU: TRAFA025N700
Overview
Expand your image of fast telephoto shooting
The new SP70-200mm F/2.8 G2 (Model A025) telephoto lens re-imagines the highly acclaimed Model A009 with enhanced optical performance, improved VC (Vibration Compensation), faster AF speed and accuracy, and shortened MOD (Minimum Object Distance) for greater flexibility. What’s more, compatibility with Tamron teleconverters provides additional focal length.
In keeping with the SP series’ innovative technology, the lens is designed to be durable, flexible and resilient enough to rise to any occasion.
